Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

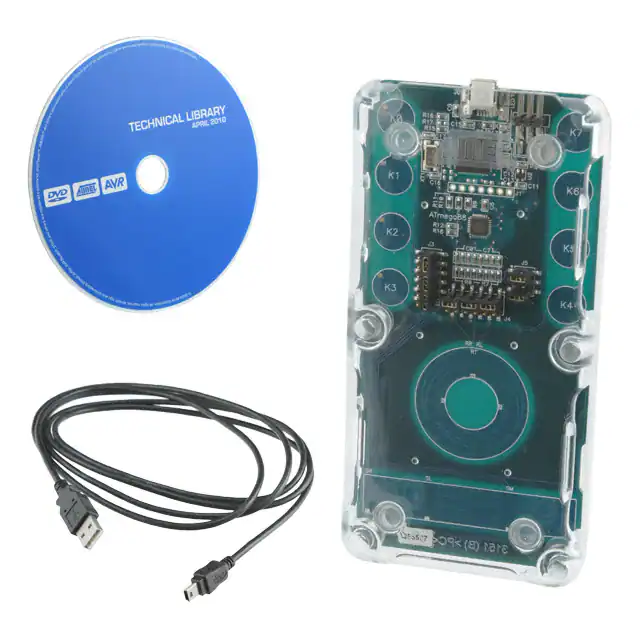

ATAVRTS2080AKIT QTOUCH W/SW ATMEGA88 |
2,402 |
|
Datasheet | QTouch™ | Box | Obsolete | Touch, Capacitive | 1 Rotor, 1 Slider, and 2 Buttons/Keys | Application Programming Interface (API) | - | 1.8V ~ 5.5V | Yes, MCU, 8-Bit | Board(s) | ATmega88 |
|
ATQT600QT600 EVAL KIT ATTINY88 QTOUCH |
4,545 |
|
Datasheet | QTouch™ | Box | Obsolete | Touch, Capacitive | - | USB | - | - | Yes, Other | Board(s), Cable(s) | ATtiny88, ATmega324PA, ATxmega128A1 |
|

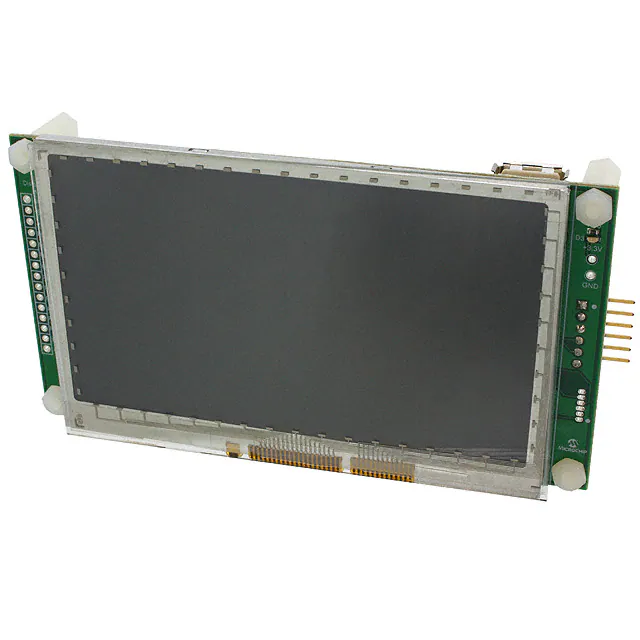

DM320015BOARD EVAL PCAP FOR PIC32 |
2,901 |
|
Datasheet | PIC® 32 | Box | Obsolete | Touch Screen | - | I2C | - | - | Yes, MCU, 32-Bit | Board(s) | PIC32MX795F512 |
|
|
EVB-EMC1402EVAL BOARD FOR EMC1402 |
2,842 |
|
Datasheet | - | Bulk | Obsolete | Temperature, Fan Controller | -40°C ~ 125°C | SMBus (2-Wire/I2C) | ±0.25°C | 5V | Yes, MCU, 8-Bit | Board(s) | EMC1402 |
|
|
E2SRBOARD DEVELOPMENT & PROGRAMMING |
4,957 |
|
Datasheet | Quantum | - | Obsolete | - | - | - | - | - | - | Board(s) | - |
|
DV102014PCAP WITH 3D GEST IC(R) SENSING |
2,764 |
|
Datasheet | GestIC® | Box | Obsolete | Touch, Capacitive | - | I2C | - | - | - | Board(s), Cable(s) | - |
|
|
AT42QT602240EVAL KIT TOUCHSCREEN SENSOR |
3,000 |
|
Datasheet | maXTouch™ | Box | Discontinued at Digi-Key | Touch Screen | - | I2C | - | 1.8V ~ 3.3V | - | Board(s) | mXT224 |
|

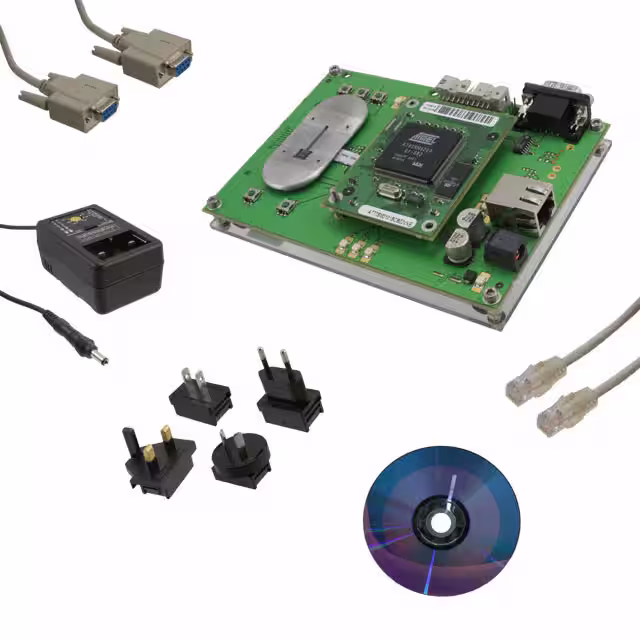

AT77SM0101BCB02VEKKIT EVALUATION FINGERCHIP |
4,686 |
|
Datasheet | FingerChip™ Biometrics | - | Obsolete | Fingerprint | - | - | - | 3V ~ 3.6V | Yes, MCU, 16/32-Bit | Board(s), Cable(s), Power Supply | AT77SM0101BCB02VKE |
|

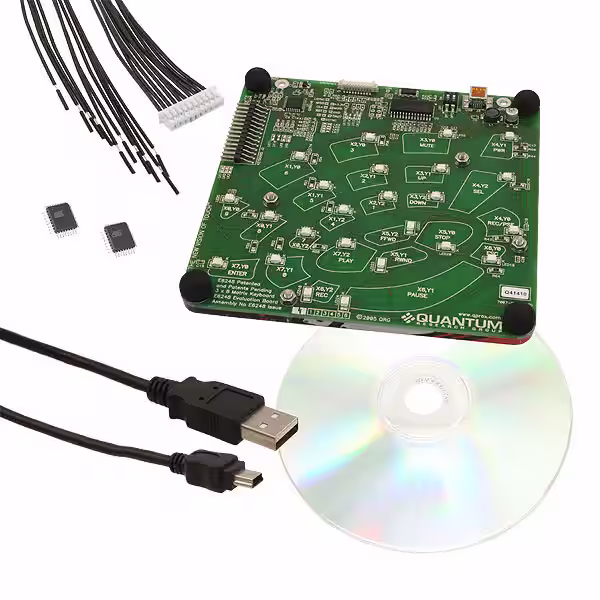

E6248BOARD EVAL QT60248-AS QMATRIX |
2,093 |
|
Datasheet | Quantum, QMatrix™ | Box | Obsolete | Touch, Capacitive | 16 / 24 Buttons/Keys | Serial, SPI | - | 3V ~ 5V | No | Board(s), Cable(s) | QT60168, QT60248 |
|

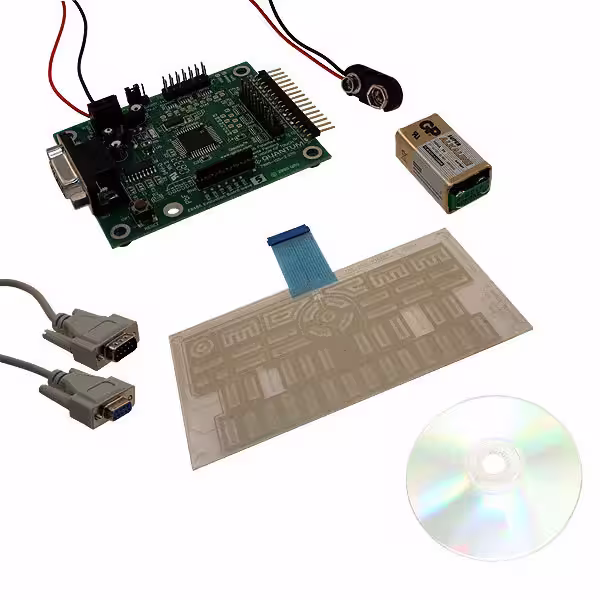

E6486BOARD EVAL QT60486-AS QMATRIX |
3,405 |
|
Datasheet | Quantum, QMatrix™ | Box | Obsolete | Touch, Capacitive | 32 / 48 Buttons/Keys | RS-232 | - | 4.75V ~ 5.25V | No | Board(s) | QT60326, QT60486 |
