Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

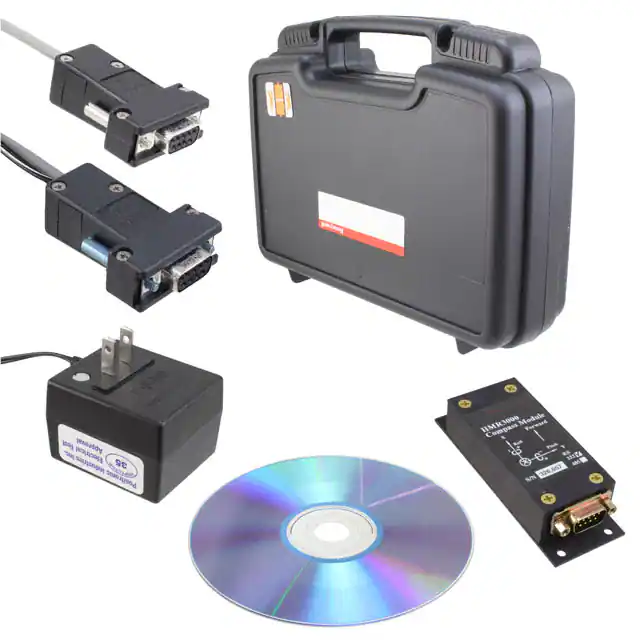

HMR3000-232-DEMOKIT DEMO DIG COMPASS MODUL RS232 |
3,716 |
|
Datasheet | HMR | Bulk | Obsolete | Magnetic, Digital Compass | ±1g | RS-232 | 1 mgauss | 6V ~ 15V | No | Board(s), Cable(s), Power Supply | HMR3000 |
|

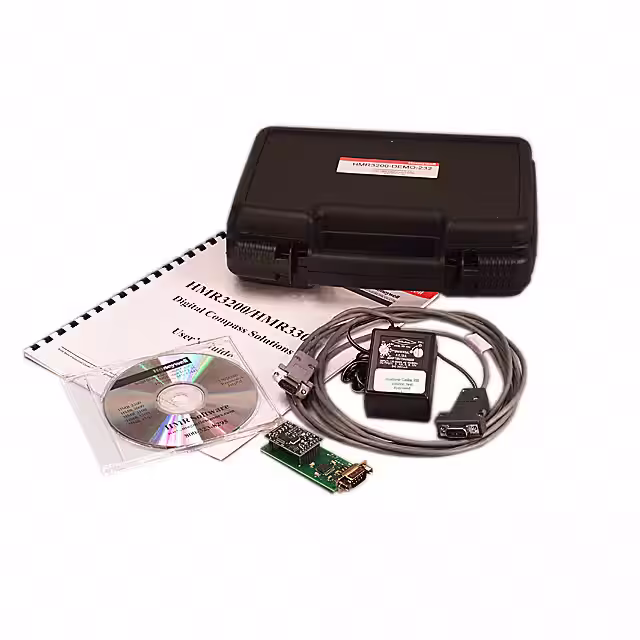

HMR3200-DEMO-232KIT DEVEL DIG COMPASS MOD RS232 |
3,600 |
|
Datasheet | HMR | - | Obsolete | Magnetic, Digital Compass | ±2g | RS-232 | 0.1 milligauss | 6V ~ 15V | No | Board(s), Cable(s), Power Supply | HMR3200 |
|
HMC6042/HMC1041Z-DEMODEMO BOARD FOR HMC6042/HMC1041Z |
1,533 |
|
Datasheet | - | Bulk | Obsolete | Magnetic, AMR (Anisotropic Magnetoresistive) | - | - | - | - | - | Board(s) | HMC1041Z, HMC6042 |
|
HMC6352-EVALEVALUATION BOARD FOR HMC6352 |
4,119 |
|
Datasheet | - | Bulk | Obsolete | Magnetic, Digital Compass | ±0.75gauss | I2C | - | 2.7V ~ 5.2V | No | Board(s) | HMC6352 |
|
|
HMC6352-DEMODEMONSTRATION BOARD FOR HMC6352 |
2,999 |
|
Datasheet | - | Bulk | Obsolete | Magnetic, Digital Compass | ±0.75gauss | I2C | - | 2.7V ~ 5.2V | No | Board(s) | HMC6352 |
|
|
HMC1041Z-EVALEVALUATION BOARD FOR HMC1041Z |
1,019 |
|
Datasheet | - | Bulk | Obsolete | Magnetic, AMR (Anisotropic Magnetoresistive) | ±6g | Analog | 1mV/V/Gauss | 2V ~ 20V | - | Board(s) | HMC1041Z |
|
HMC6343-EVALEVAL BOARD FOR HMC6343 |
2,231 |
|
Datasheet | - | Bulk | Active | Magnetic, Digital Compass | ±1g | I2C | - | 2.7V ~ 3.6V | Yes, Other | Board(s) | HMC6343 |
|

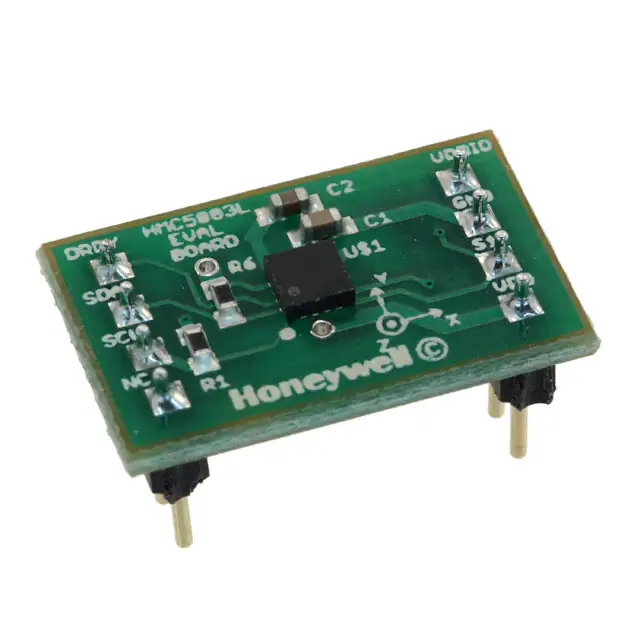

HMC5883L-EVALIC COMPASS 3 AXIS I2C EVAL BOARD |
2,612 |
|
Datasheet | HMC | Box | Obsolete | Magnetic, Digital Compass | ±8 Gauss | - | - | - | - | Board(s) | HMC5883L |
|

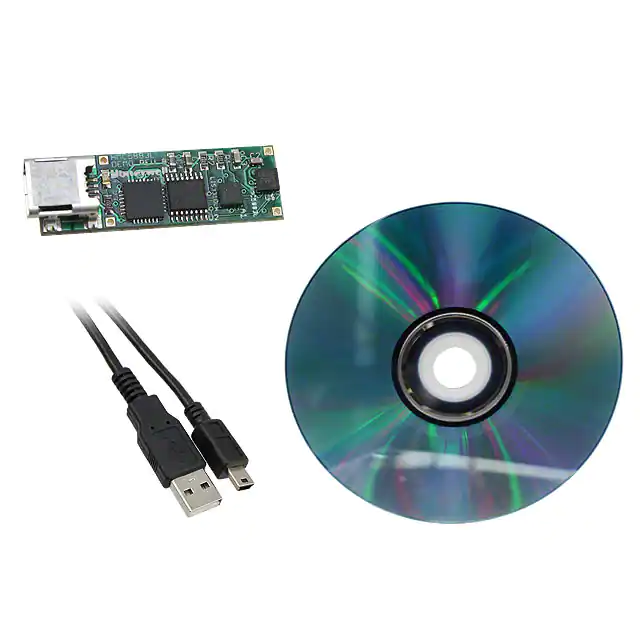

HMC5883L-DEMOIC COMPASS 3 AXIS I2C DEMO KIT |
2,020 |
|
Datasheet | HMC | Box | Obsolete | Magnetic, Digital Compass | ±8 Gauss | - | - | - | - | Board(s) | HMC5883L |
|
HMC5983-EVALBOARD EVAL 3AXIS COMPASS HMC5983 |
1,916 |
|
Datasheet | HMC | Bulk | Obsolete | Magnetic, Digital Compass | ±8G | I2C, Serial, SPI | - | 2.16V ~ 3.6V | - | Board(s) | HMC5983 |
