Sensor Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Sensor Type | Sensing Range | Interface | Sensitivity | Voltage - Supply | Embedded | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
68010305-001HG1120 ADAPTOR BOARD |
3,955 |
|
Datasheet | - | Box | Active | Accelerometer, Gyroscope, Magnetometer, 9 Axis | - | - | - | - | - | Board(s) | HG1120 |
|
68009732-002HG1120 EVALUATION KIT |
3,913 |
|
Datasheet | - | Box | Active | Accelerometer, Gyroscope, Magnetometer | - | - | - | - | - | Board(s) | HG1120 |
|
68010029-001HGUIDE N580 EVALUATION KIT WITH |
4,035 |
|
Datasheet | - | Box | Active | Accelerometer, Gyroscope, 3 Axis | - | - | - | 9V ~ 36V | - | Board(s) | HGuide n580 |
|

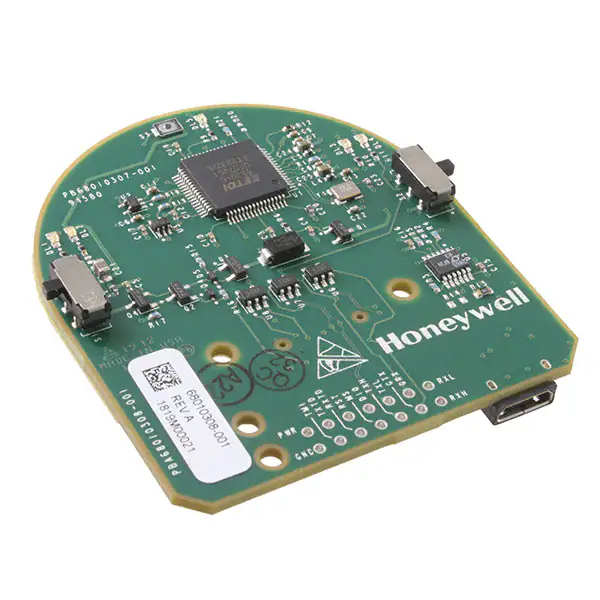

68010308-001HG4930 ADAPTOR BOARD |
3,917 |
|
- |
- | Box | Active | Accelerometer, Gyroscope, 6 Axis | - | - | - | - | - | Board(s) | HG4930 |
|
|
68009732-001HG4930 EVALUATION KIT |
2,193 |
|
- |
- | Box | Active | Accelerometer, Gyroscope, 3 Axis | - | - | - | - | - | Board(s) | HG4930 |
|
HMC6343-DEMODEMONSTRATION BOARD FOR HMC6343 |
4,438 |
|
Datasheet | - | Bulk | Obsolete | Magnetic, Digital Compass | ±1g | I2C | - | 2.7V ~ 3.6V | Yes, Other | Board(s), Cable(s) | HMC6343 |
|

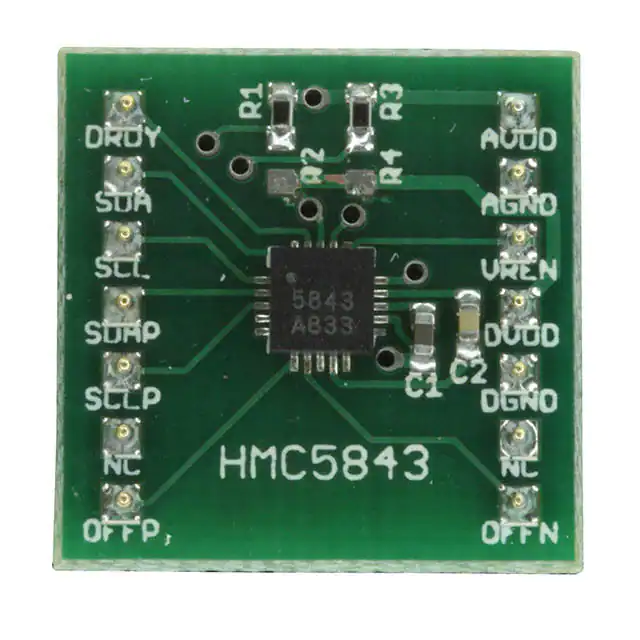

HMC5843-EVALBOARD EVALUATION FOR HMC5843 |
4,887 |
|
Datasheet | - | Box | Obsolete | Magnetic, Digital Compass | ±4g | I2C | 7 milligauss | 2.5V ~ 3.3V | No | Board(s) | HMC5843 |
|
|
68009515-001HG1120 PADDLE BOARD |
3,193 |
|
- |
- | Box | Active | Accelerometer, Gyroscope, Magnetometer | - | - | - | - | - | Board(s) | HG1120 |
|
|
68009758-001HG4930 PADDLE BOARD |
4,929 |
|
- |
- | Box | Active | Accelerometer, Gyroscope, 3 Axis | - | - | - | - | - | Board(s) | HG4930 |
|

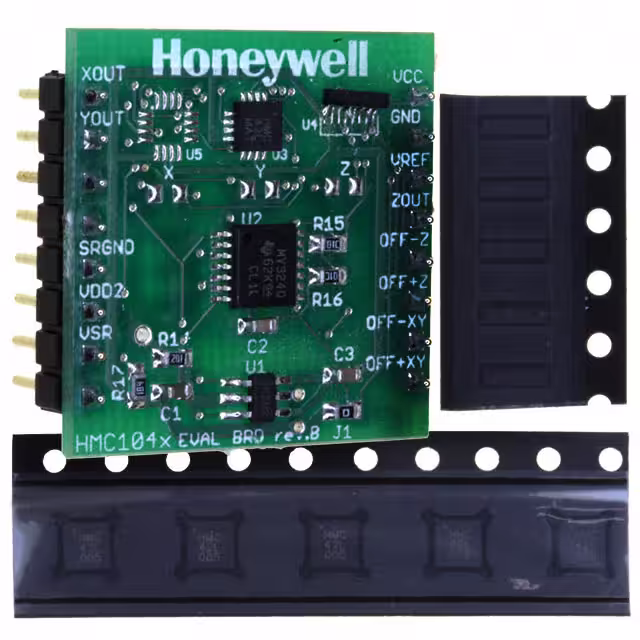

HMC1042L/HMC1041Z-DEMODEMO BOARD FOR HMC1042L/HMC1041Z |
2,790 |
|
Datasheet | - | Bulk | Obsolete | Magnetic, AMR (Anisotropic Magnetoresistive) | ±6g | Analog | 1mV/V/Gauss | 2V ~ 20V | No | Board(s) | HMC1041Z, HMC1042L |
