LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
STR-NCV7685-AUTO-LED-GEVBEVAL BOARD FOR NCV7685 |
1,722 |
|
Datasheet | Strata | Box | Obsolete | 60mA | 12 Non-Isolated Outputs | - | - | - | Board(s) | NCV7685 |
|
NCP30653ABCKGEVBEVAL BOARD FOR NCP3065 |
3,555 |
|
Datasheet | - | Bulk | Active | - | 1 Non-Isolated Output | - | - | - | Board(s) | NCP3065 |
|
NCP3065D2SLDGEVBEVAL BOARD FOR NCP3065 |
3,448 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 7V ~ 23V | - | 8V ~ 25V | Board(s) | NCP3065 |
|
NCP3065D3SLDGEVBEVAL BOARD FOR NCP3065 |
1,577 |
|
Datasheet | - | Bulk | Active | 700mA | 1 Non-Isolated Output | 7V ~ 23V | - | 8V ~ 25V | Board(s) | NCP3065 |
|
NCP3065SOBCKGEVBEVAL BOARD FOR NCP3065 |
4,541 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 3.6V | - | 12V | Board(s) | NCP3065 |
|
NCP3065SOBSTGEVBEVAL BOARD FOR NCP3065 |
4,974 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 20V | - | 12V | Board(s) | NCP3065 |
|
NCP3066DFSEPGEVBEVAL BOARD FOR NCP3066 |
2,247 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 7.2V | - | 25VAC, 12 V ~ 24 V | Board(s) | NCP3066 |
|

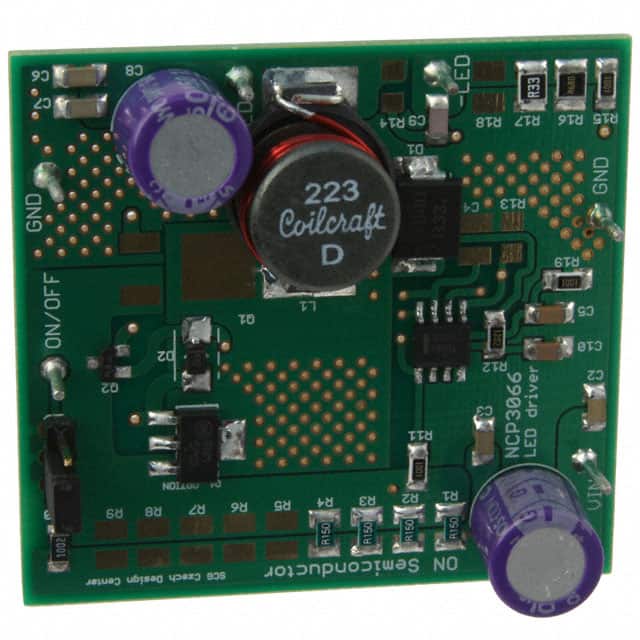

NCP3066S3BCKGEVBEVAL BOARD FOR NCP3066 |
3,316 |
|
Datasheet | - | Bulk | Active | 3A | 1 Non-Isolated Output | 3.2V | - | 12V ~ 35V | Board(s) | NCP3066 |
|

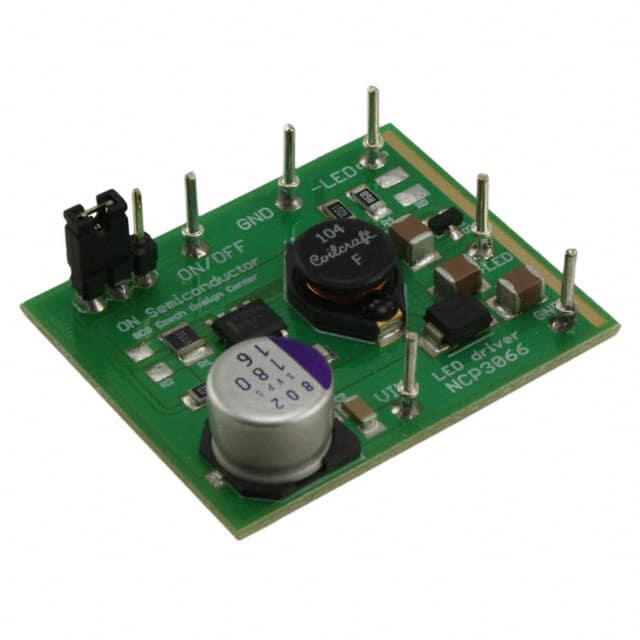

NCP3066SCBSTGEVBEVAL BOARD FOR NCP3066 |
4,838 |
|
Datasheet | - | Bulk | Active | 350mA | 1 Non-Isolated Output | 16V | - | 12V | Board(s) | NCP3066 |
|

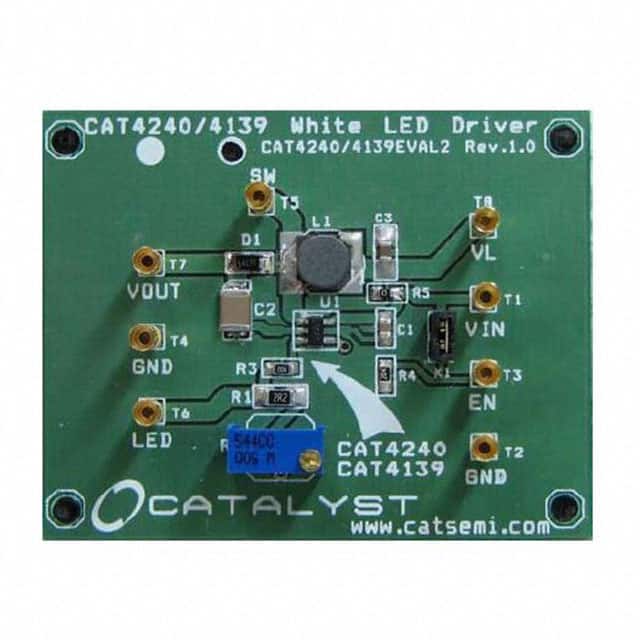

CAT4139AEVBEVAL BOARD FOR CAT4139 |
2,891 |
|
Datasheet | - | Bulk | Active | 100mA | 1 Non-Isolated Output | 22V | Dimmable | 2.8V ~ 5.5V | Board(s) | CAT4139 |
