LED Driver Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Current - Output / Channel | Outputs and Type | Voltage - Output | Features | Voltage - Input | Contents | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
NCL30105GEVBEVAL BOARD FOR NCL30105 |
4,432 |
|
Datasheet | - | Box | Active | 350mA | 1 Non-Isolated Output | 60V | - | - | Board(s) | NCL30105 |
|
CAT3649AGEVBEVAL BOARD FOR CAT3649 |
1,031 |
|
Datasheet | QUAD-Mode® | Bulk | Active | 25mA | 6 Non-Isolated Outputs | - | Dimmable | 3.3V, 5V | Board(s) | CAT3649 |
|
NCP1028LEDGEVBEVAL BOARD FOR NCP1028 |
4,704 |
|
Datasheet | - | Bulk | Active | 720mA | 1 Isolated Output | 18V | - | 90 ~ 265 VAC | Board(s) | NCP1028 |
|
NCS29001DGEVBEVAL BOARD FOR NCS29001 |
4,801 |
|
Datasheet | - | Box | Active | 200mA | 1 Non-Isolated Output | 76V | Dimmable | 8.5V ~ 18V | Board(s) | NCS29001 |
|

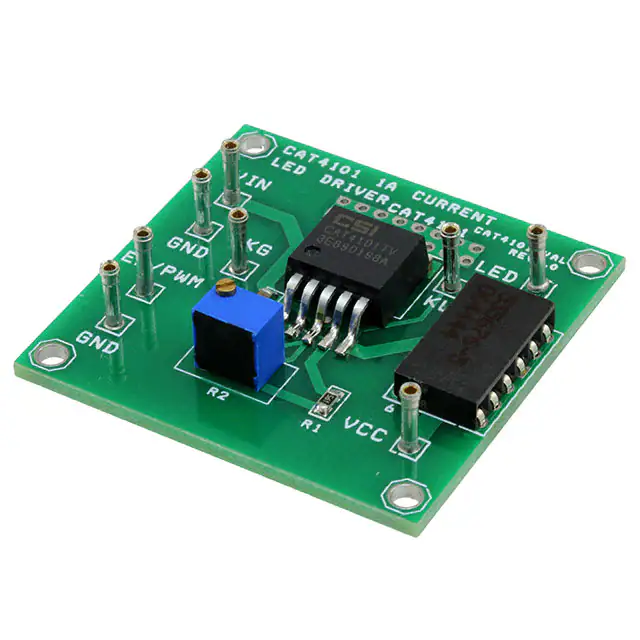

CAT4101AEVBEVAL BOARD FOR CAT4101 |
3,135 |
|
Datasheet | - | Box | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 3V ~ 5.5V | Board(s) | CAT4101 |
|

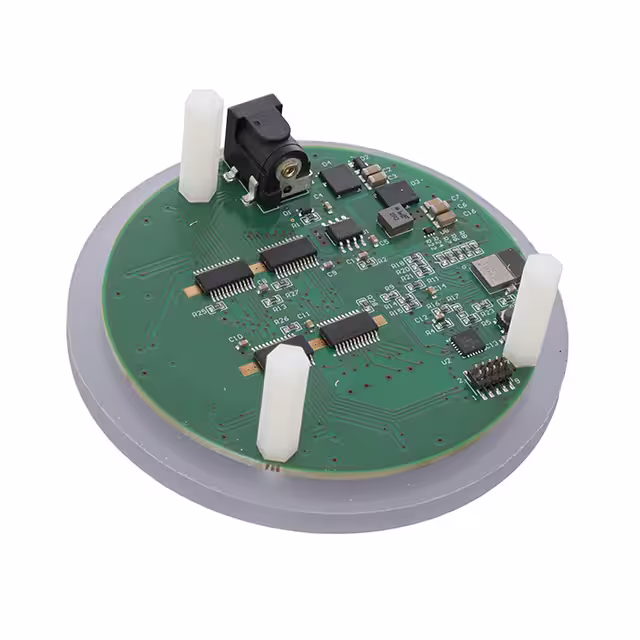

SECO-NCV7685RGB-GEVBEVAL BOARD FOR NCV7685 NCV8170 |
4,851 |
|
Datasheet | - | Bulk | Active | 60mA | 16 Non-Isolated Outputs | - | Dimmable | 12V ~ 24V | Board(s) | NCV7685, NCV8170, NCV891330, PCA9655 |
|

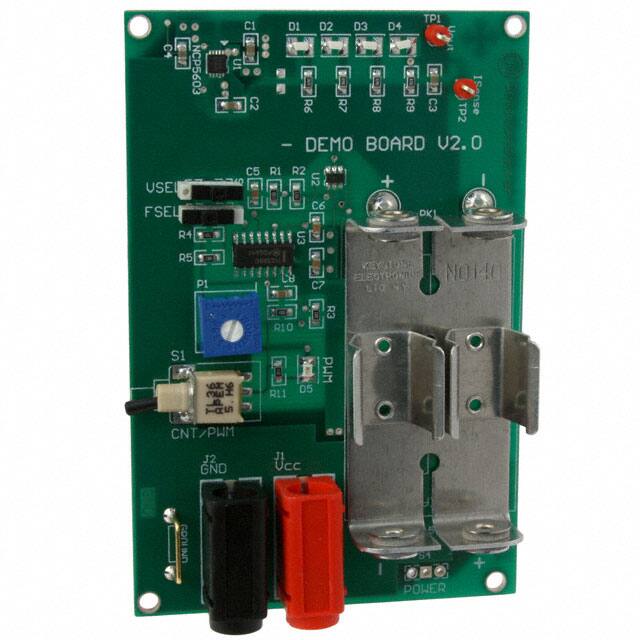

NCP5603GEVBEVAL BOARD FOR NCP5603 |
1,803 |
|
Datasheet | - | Bulk | Active | 160mA | 1 Non-Isolated Output | 4.5V ~ 5V | Dimmable | 3V ~ 3.6V | Board(s) | NCP5603 |
|

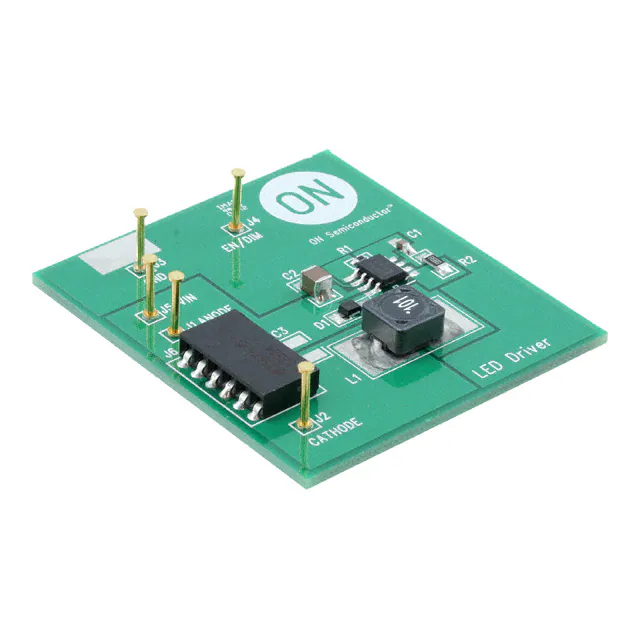

NCL30160GEVBEVAL BOARD FOR NCL30160 |
3,089 |
|
Datasheet | - | Bulk | Active | 1A | 1 Non-Isolated Output | - | Dimmable | 6.3V ~ 40V | Board(s) | NCL30160 |
|
NCP1422LEDGEVBEVAL BOARD FOR NCP1422 |
3,003 |
|
Datasheet | - | Bulk | Active | 800mA | 1 Non-Isolated Output | 3.5V | - | 3.6V | Board(s) | NCP1422 |
|
NCL30388LED1GEVBEVAL BOARD FOR NCL30388 |
1,358 |
|
Datasheet | - | Bulk | Active | 1.5A | 1 Non-Isolated Output | 40V | Dimmable | 100 ~ 265 VAC | Board(s) | NCL30388 |
