Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

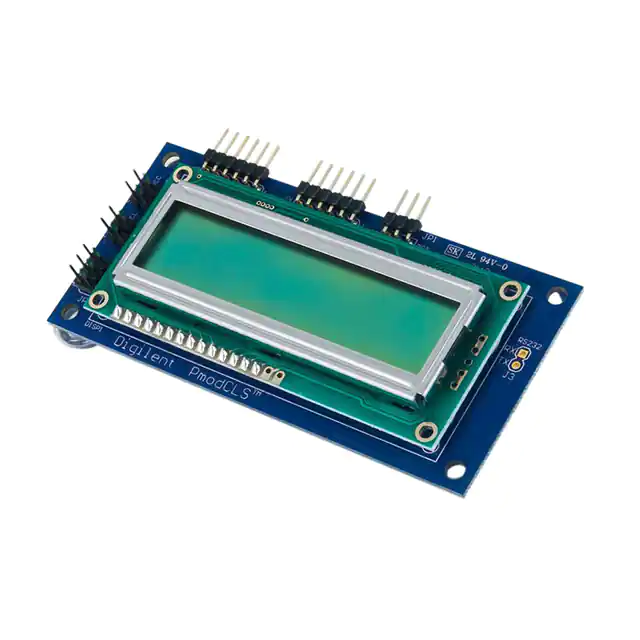

410-092PMODCLS 16X2 CHARACTER LCD |
2,474 |
|
Datasheet | Pmod™ | Bulk | Obsolete | Pmod™ | Display | Character LCD 16x2 | - | Board(s) |
|

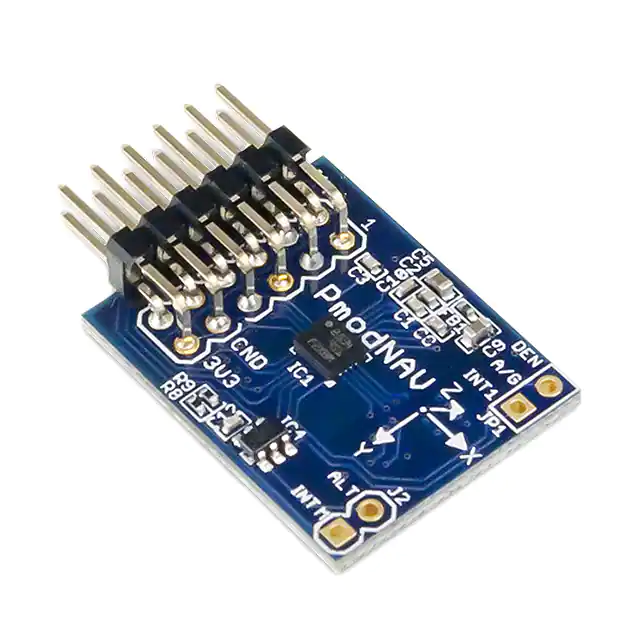

410-326PMOD NAV 9-AXIS IMU/BAROMETER |
2,949 |
|
Datasheet | Pmod™ | Bulk | Obsolete | Pmod™ | Sensor | Accelerometer, Barometer, Gyroscope, Magnetometer | LPS25HB, LSM9DS1 | Board(s) |
|

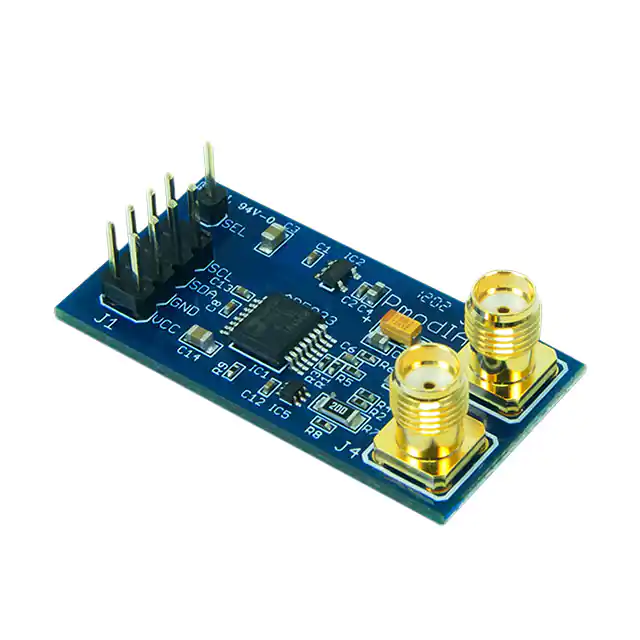

410-246PMODIA IMPEDANCE ANALYZER |
4,372 |
|
Datasheet | Pmod™ | Bulk | Obsolete | Pmod™ | Interface | Impedance Converter | AD5933 | Board(s) |
|

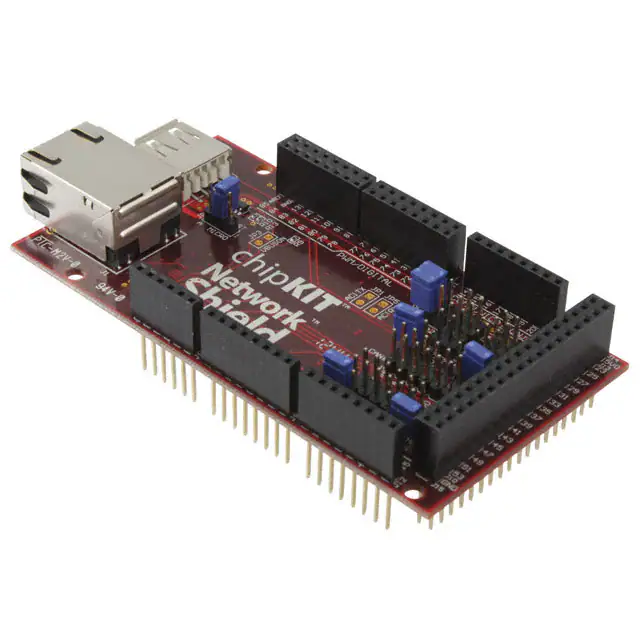

410-211BOARD CHIPKIT NETWORK SHIELD |
4,529 |
|
Datasheet | - | Box | Obsolete | chipKIT™ | Interface | Ethernet | LAN8720 | Board(s) |
|
410-341PMOD MTDS MULTI-TOUCH DISPLAY |
2,057 |
|
Datasheet | Pmod™ | Bulk | Obsolete | Pmod™ | Display | LCD Touchscreen 2.8" | PIC32MZ | Board(s) |
|
410-317MULTI-TOUCH DISPLAY PIC32MZ |
3,812 |
|
Datasheet | - | Bulk | Obsolete | Arduino | Display | LCD Touchscreen 2.8" | PIC32MZ | Board(s) |
|
410-225PPMODOLED2 4-BIT OLED DISPLAY |
4,023 |
|
- |
Pmod™ | Bulk | Obsolete | Pmod™ | Display | OLED | SSD1322 | Board(s) |
|
410-356DMM SHIELD |
1,316 |
|
Datasheet | - | Box | Obsolete | Arduino | Sensor | Current, Resistance, Voltage | HY3131 | Board(s) |
|
|
6069-410-000-OEM6069-410-000-OEM |
1,920 |
|
- |
- | Bulk | Active | Raspberry Pi | Data Acquisition | Analog to Digital Converter (ADC) | MCC118, MCC128 | Board(s) |
|
|
410-396-1ZMOD SCOPE 1010-40: 2-CHANNEL 10 |
3,276 |
|
Datasheet | - | Bulk | Not For New Designs | SYZYGY, Zmod | Data Acquisition | Analog to Digital Converter (ADC) | - | Board(s), Accessories |
