Expansion Boards, Daughter Cards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Platform | Type | Function | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
410-096PMODREG1 VOLTAGE REGULATOR |
4,306 |
|
Datasheet | Pmod™ | Bulk | Obsolete | Pmod™ | Power Management | Power Supply | - | Board(s) |
|

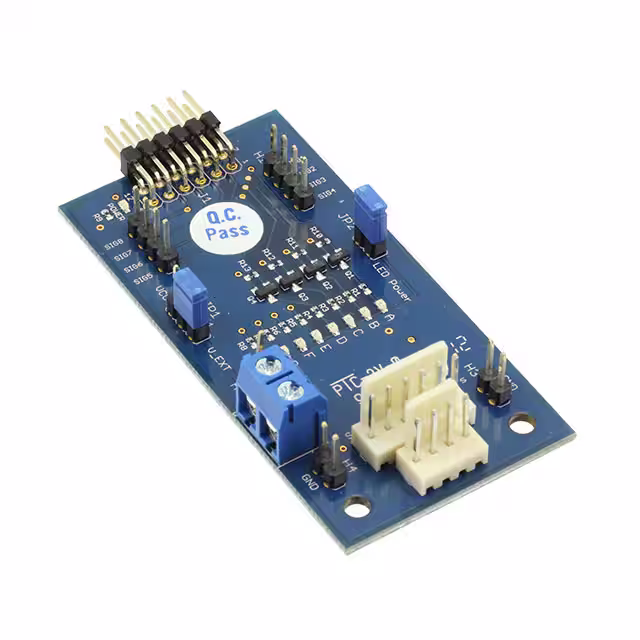

410-267PMODSMC STEPPER MOTOR DRIVER |
1,800 |
|
Datasheet | Pmod™ | Bulk | Obsolete | Pmod™ | Power Management | Motor Controller/Driver | L293DD | Board(s) |
|

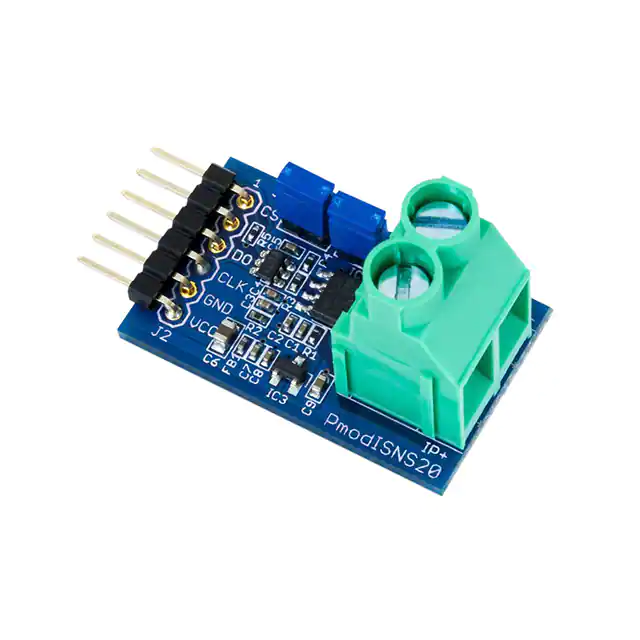

410-325PMODISNS20 BOARD |
2,095 |
|
Datasheet | Pmod™ | Bulk | Obsolete | Pmod™ | Sensor | Current | ACS722 | Board(s) |
|

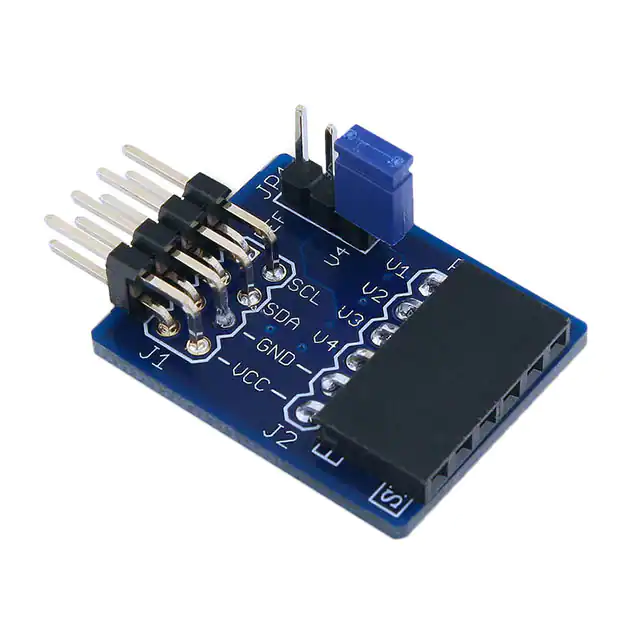

410-217BOARD PMODAD2 FOR AD7991 |
3,243 |
|
Datasheet | Pmod™ | Box | Obsolete | Pmod™ | Data Acquisition | Analog to Digital Converter (ADC) | AD7991 | Board(s) |
|
410-063BOARD PMODDA1 FOR AD7303 |
4,954 |
|
Datasheet | Pmod™ | Box | Obsolete | Pmod™ | Data Acquisition | Digital to Analog Converter (DAC) | AD7303 | Board(s) |
|

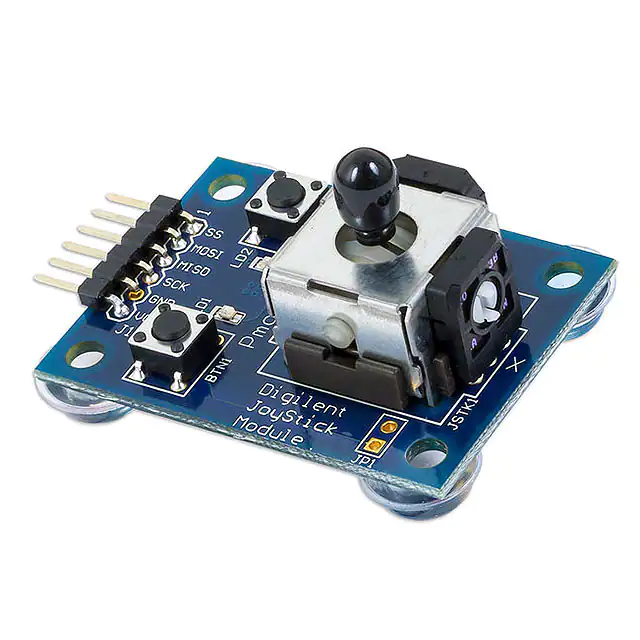

410-116PMODJSTK TWO AXIS JOYSTICK |
4,691 |
|
Datasheet | Pmod™ | Bulk | Obsolete | Pmod™ | Human Interface | Joystick | - | Board(s) |
|

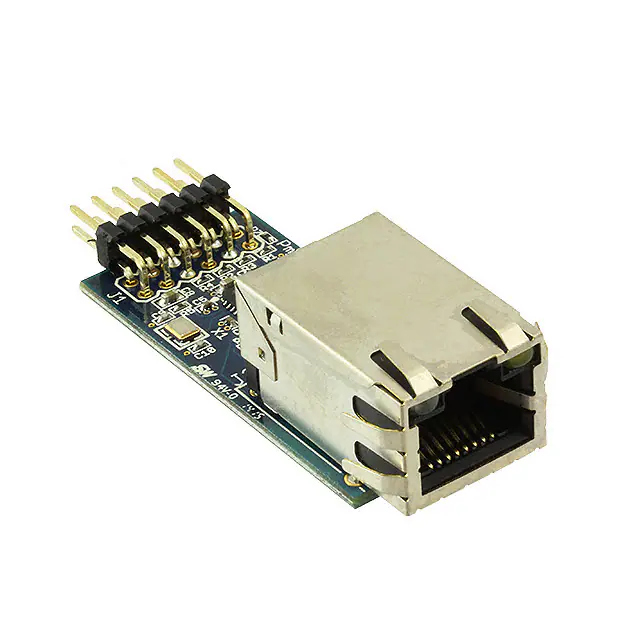

410-208PMODNIC100 ETHERNET INTERFACE |
3,597 |
|
Datasheet | Pmod™ | Bulk | Obsolete | Pmod™ | Interface | Ethernet | ENC424J600 | Board(s) |
|

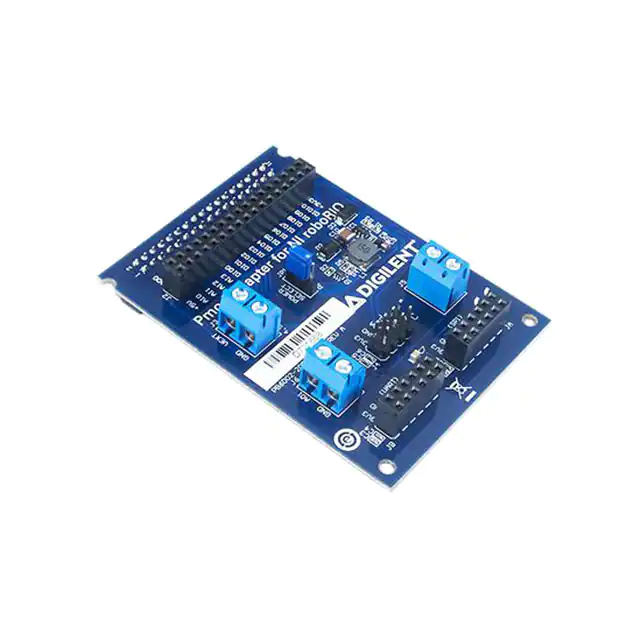

6002-410-015PMOD ADAPTER FOR NI ROBORIO |
2,913 |
|
Datasheet | Pmod™ | Bulk | Obsolete | NI roboRIO | Connectivity | Pmod to NI roboRIO | - | Board(s) |
|
|
210-109WWFX2WW WIREWRAP BOARD |
2,625 |
|
- |
- | Bulk | Obsolete | Pmod™ | Protoboard | Wire Wrap | - | Board(s) |
|

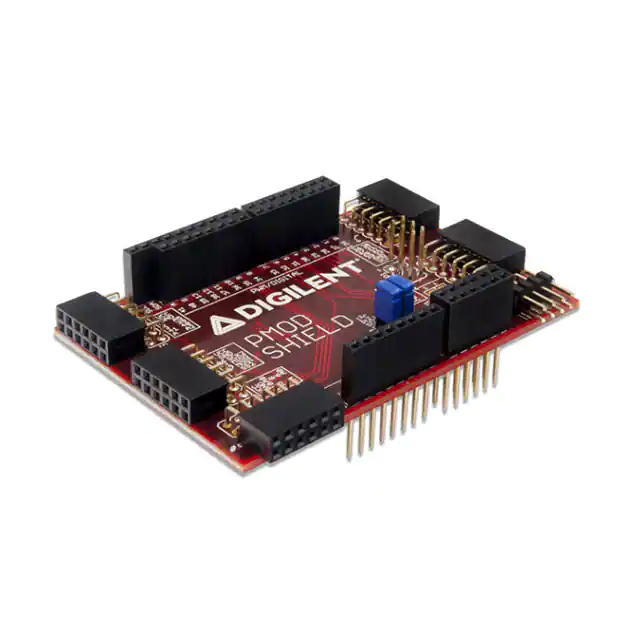

410-229CHIPKIT PMOD SHIELD-UNO |
3,308 |
|
Datasheet | Pmod™ | Box | Obsolete | Pmod™ | Connectivity | Arduino to Pmod | - | Board(s) |
