DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVB_RT8293AHZSPEVAL BOARD FOR RT8293A |
3,947 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 23V | Buck | 340kHz | Board(s) | RT8293A |
|
|
EVB_RT8297BZQWEVAL BOARD FOR RT8297B |
1,497 |
|
Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1.5A | 4V ~ 17V | Buck | 800kHz | Board(s) | RT8297B |
|
EVB_RT7297AHZSPEVAL BOARD FOR RT7297A |
2,648 |
|

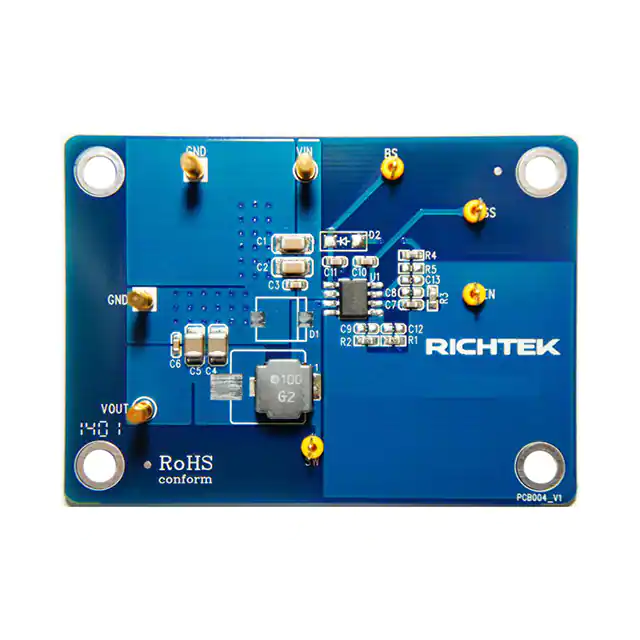

Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 18V | Buck | 340kHz | Board(s) | RT7297A |
|
EVB_RT5785AGJ8FEVAL BOARD FOR RT5785A |
3,746 |
|
Datasheet | ACOT® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | - | 2A | 2.5V ~ 6V | Buck | 1.5MHz | Board(s) | RT5785A |
|
EVB_RT8296AHZSPEVAL BOARD FOR RT8296A |
1,997 |
|

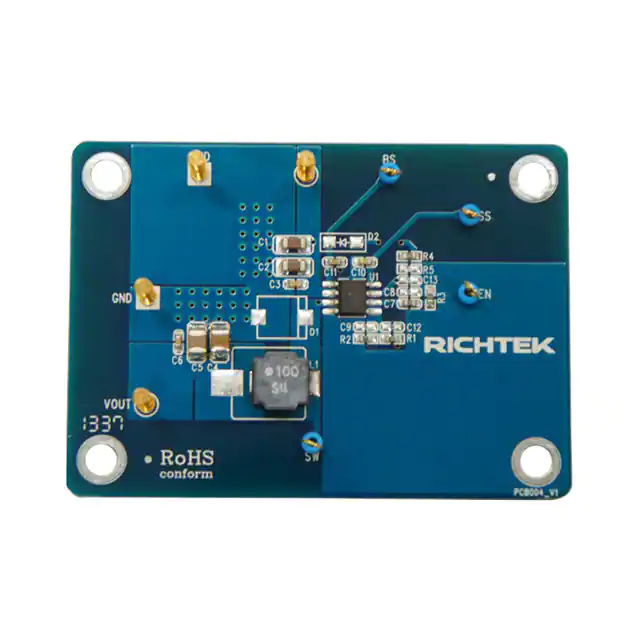

Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 23V | Buck | 340kHz | Board(s) | RT8296A |
|
EVB_RT6255AHGJ6FEVAL BOARD FOR RT6255A |
1,624 |
|

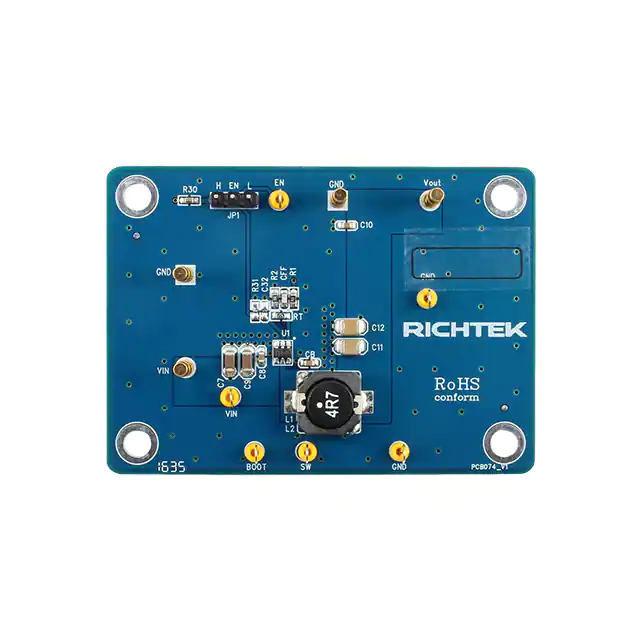

Datasheet | ACOT® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 5A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | RT6255A |
|
EVB_RT6204GSPEVAL BOARD FOR RT6204 |
3,906 |
|

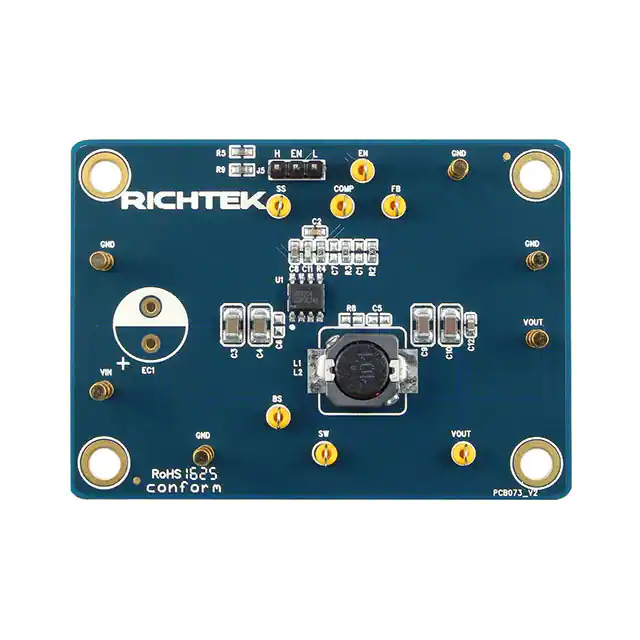

Datasheet | - | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.8V ~ 50V | 500mA | 5.2V ~ 60V | Buck | 350kHz | Board(s) | RT6204 |
|
EVB_RT7272BGSPEVAL BOARD FOR RT7272B |
2,609 |
|

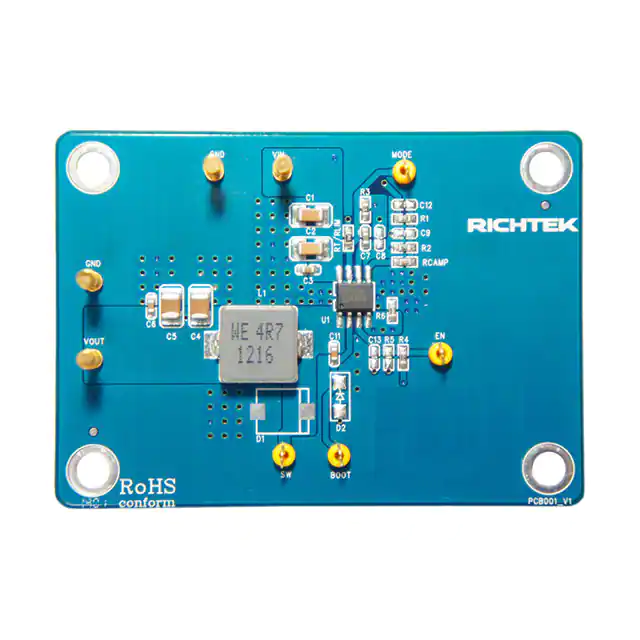

Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 36V | Buck | 500kHz | Board(s) | RT7272B |
|
EVB_RT6219AGQWEVAL BOARD FOR RT6219 |
4,329 |
|

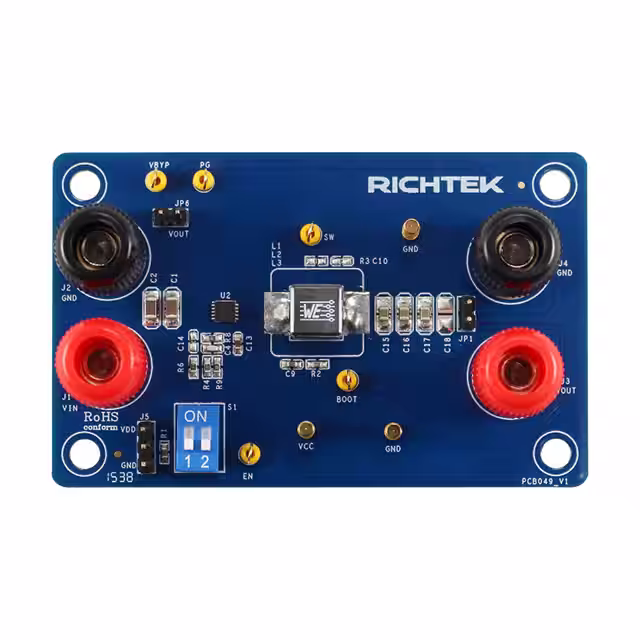

Datasheet | ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 4A | 5V ~ 23V | Buck | 500kHz | Board(s) | RT6219 |
|
EVB_RT6276BHGQUFEVAL BOARD FOR RT6276B |
4,819 |
|

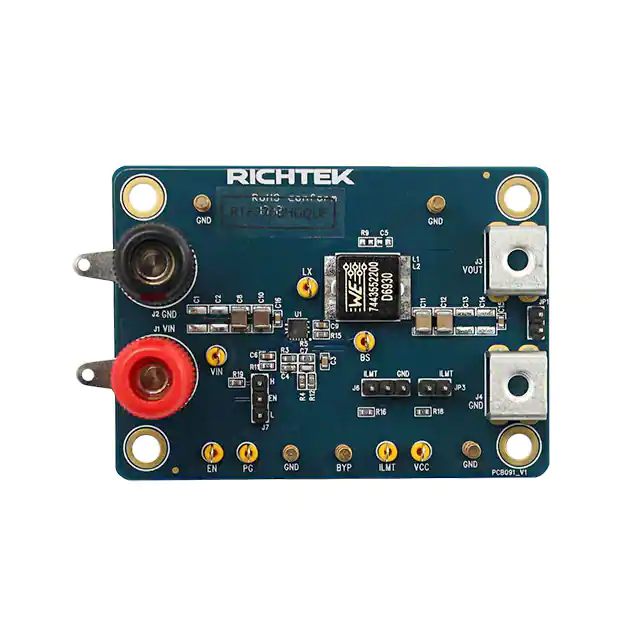

Datasheet | ACOT® | Bulk | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.6V ~ 5.1V | 6A | 4.5V ~ 23V | Buck | 500kHz | Board(s) | RT6276B |
