DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVB_RT8071CGQWEVAL BOARD FOR RT8071C |
1,602 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 2.7V ~ 5.5V | Buck | 1MHz | Board(s) | RT8071C |
|
EVB_RT2853BHGQWEVAL BOARD FOR RT2853B |
3,800 |
|
Datasheet | ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | RT2853B |
|
EVB_RT2859BHGQWEVAL BOARD FOR RT2859B |
1,196 |
|
Datasheet | ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | RT2859B |
|
EVB_RT6259BHGQWEVAL BOARD FOR RT6259B |
1,580 |
|
Datasheet | ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 3A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | RT6259B |
|
EVB_RT2855BHGQWEVAL BOARD FOR RT2855B |
3,310 |
|
Datasheet | ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 4A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | RT2855B |
|
EVB_RT5795AGQWEVAL BOARD FOR RT5795A |
4,728 |
|
Datasheet | ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 2A | 2.5V ~ 5.5V | Buck | 2.7MHz | Board(s) | RT5795A |
|

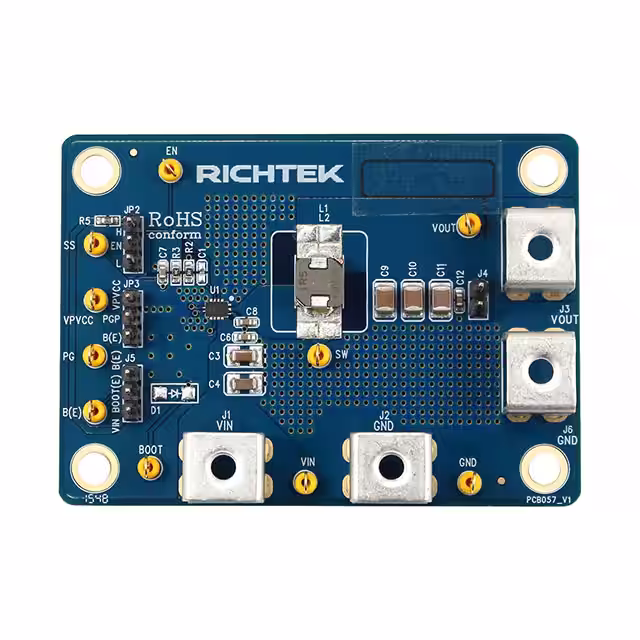

EVB_RT6207AHGQUFEVAL BOARD FOR RT6207A |
2,547 |
|
Datasheet | ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.2V | 5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | RT6207A |
|
EVB_RT6251BHGQWEVAL BOARD FOR RT6251B |
1,552 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 3A | 4.5V ~ 18V | Buck | - | Board(s) | RT6251B |
|
EVB_RT6206BHGQWEVAL BOARD FOR RT6206B |
3,117 |
|
Datasheet | ACOT® | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 1.05V | 5.5A | 4.5V ~ 18V | Buck | 650kHz | Board(s) | RT6206B |
|
EVB_RT7249GQWEVAL BOARD FOR RT7249 |
1,932 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3A | 4.5V ~ 18V | Buck | 500kHz | Board(s) | RT7249 |
