DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MAX17502GTEVKITE#EVAL BOARD FOR MAX17502 |
4,134 |
|
- |
- | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 6.5V ~ 60V | Buck | 600kHz | Board(s) | MAX17502 |
|
|
MAX8546EVKITEVAL BOARD FOR MAX8546 |
1,763 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 2.5V | 6A | 10V ~ 24V | Buck | 300kHz | Board(s) | MAX8546 |
|
|
MAX1522EVKITEVAL BOARD FOR MAX1522 |
2,641 |
|
Datasheet | - | Bulk | Obsolete | DC/DC, Step Up | 2 Non-Isolated Outputs | - | 5V, 12V | 1A, 200mA | 1.5V ~ 5.5V | Boost | 1MHz | Board(s) | MAX1522 |
|
|
MAXM17900EVKIT#EVAL BOARD FOR MAXM17900 |
4,386 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 100mA | 10V ~ 21V | Buck | 600kHz | Board(s) | MAXM17900 |
|
MAXM15466EVKIT#EVAL BOARD FOR MAXM15466 |
2,729 |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 8.5V ~ 42V | Buck | 550kHz | Board(s) | MAXM15466 |
|
MAXM15463EVKIT#EVAL BOARD FOR MAXM15463 |
3,488 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 4.5V ~ 42V | Buck | 500kHz | Board(s) | MAXM15463 |
|
|
MAXM15464EVKIT#EVAL BOARD FOR MAXM15464 |
4,255 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 300mA | 12V ~ 42V | Buck | 500kHz | Board(s) | MAXM15464 |
|
|
MAXM17901EVKIT#EVAL BOARD FOR MAXM17901 |
1,811 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 300mA | 5.5V ~ 24V | Buck | 500kHz | Board(s) | MAXM17901 |
|
|
MAX5080EVKITEVAL BOARD FOR MAX5080 |
3,291 |
|
Datasheet | - | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 3.3V | 1A | 4.5V ~ 40V | Buck | 250kHz | Board(s) | MAX5080 |
|

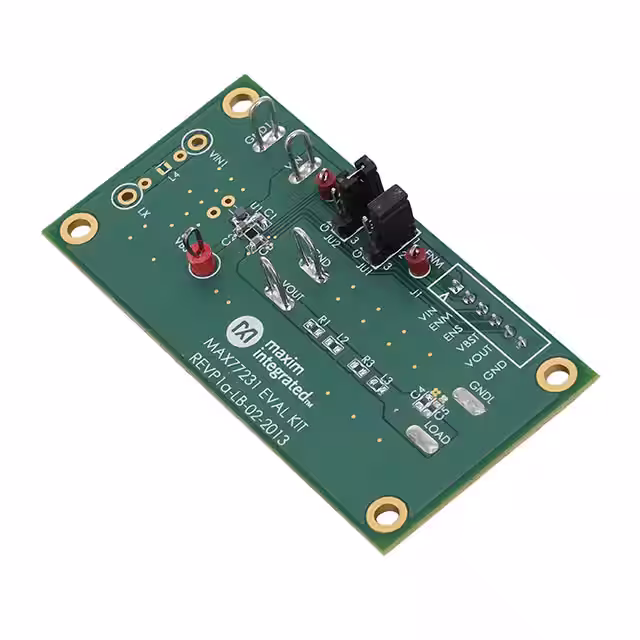

MAX77231EVKIT#EVAL BOARD FOR MAX77231 |
2,460 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Up | 1 Non-Isolated Output | - | 11.2V | 10mA | 2.7V ~ 4.8V | Boost | - | Board(s) | MAX77231 |
