DC/DC & AC/DC (Off-Line) SMPS Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Main Purpose | Outputs and Type | Voltage - Output | Current - Output | Voltage - Input | Regulator Topology | Frequency - Switching | Contents | Utilized IC / Part | Power - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

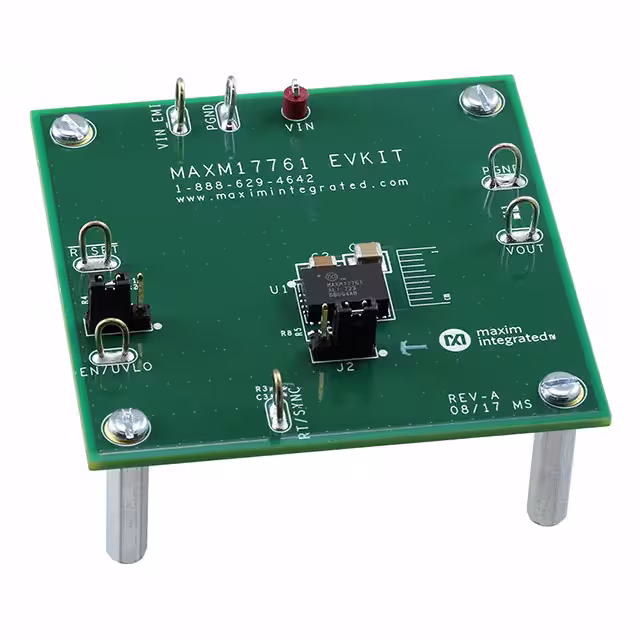

MAXM17761EVKIT#EVAL BOARD FOR MAXM17761 |
2,222 |
|
Datasheet | Himalaya | Box | Active | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 1A | 10V ~ 76V | Buck | 537kHz | Board(s) | MAXM17761 |
|
MAXM17504EVKIT#EVAL BOARD FOR MAXM17504 |
4,791 |
|
- |
Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 3.5A | 11V ~ 60V | Buck | 500kHz | Board(s) | MAXM17504 |
|

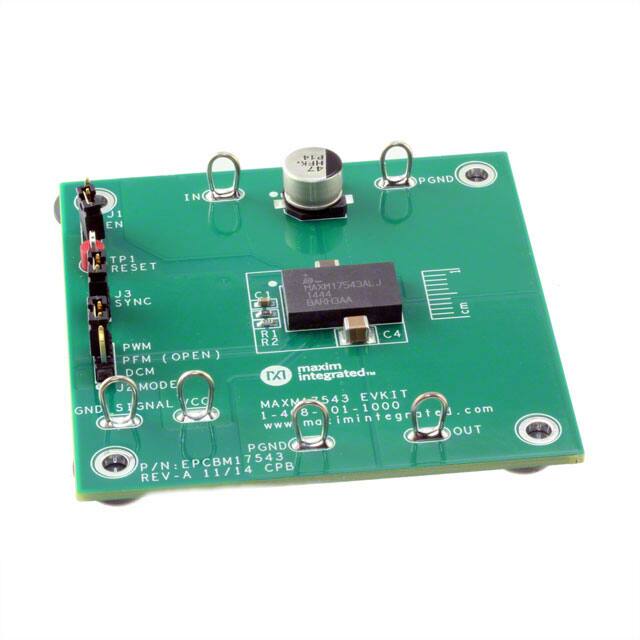

MAXM17543EVKIT#EVAL BOARD FOR MAXM17543 |
1,052 |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 2.5A | 4.5V ~ 42V | Buck | - | Board(s) | MAXM17543 |
|
MAXM17544EVKIT#EVAL BOARD FOR MAXM17544 |
1,885 |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 3.5A | 4.5V ~ 42V | Buck | - | Board(s) | MAXM17544 |
|
|
MAXM17503EVKIT#EVAL BOARD FOR MAXM17503 |
2,601 |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 5V | 2.5A | 11V ~ 60V | Buck | 500kHz | Board(s) | MAXM17503 |
|
|
MAXM17505EVKIT#EVAL BOARD FOR MAXM17505 |
3,640 |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 1.7A | 4.5V ~ 60V | Buck | - | Board(s) | MAXM17505 |
|

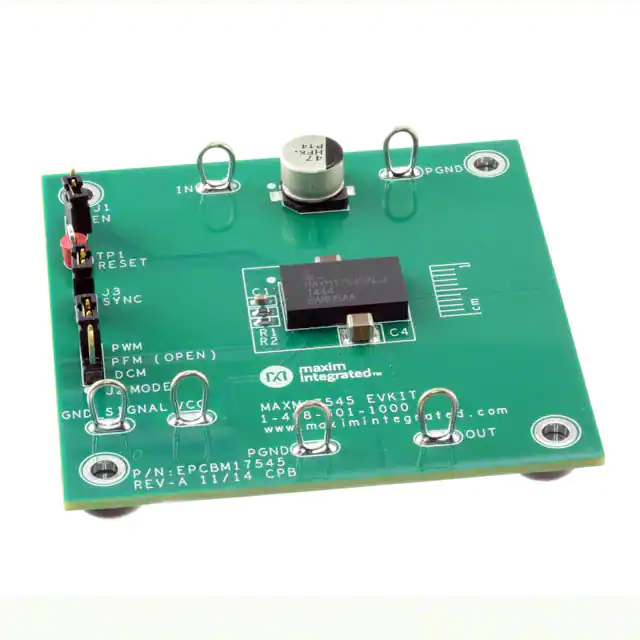

MAXM17545EVKIT#EVAL BOARD FOR MAXM17545 |
1,395 |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.9V ~ 12V | 1.7A | 4.5V ~ 42V | Buck | - | Board(s) | MAXM17545 |
|

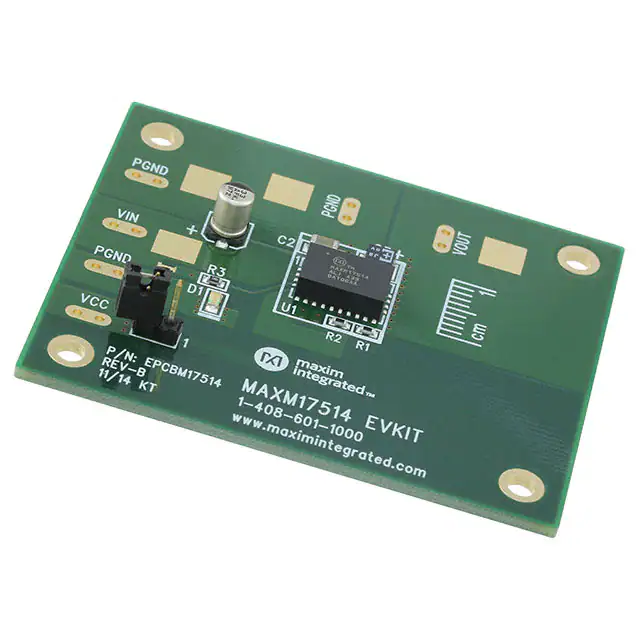

MAXM17514EVKIT#EVAL BOARD FOR MAXM17514 |
3,055 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 3.6V | 4A | 2.4V ~ 5.5V | Buck | 1MHz | Board(s) | MAXM17514 |
|

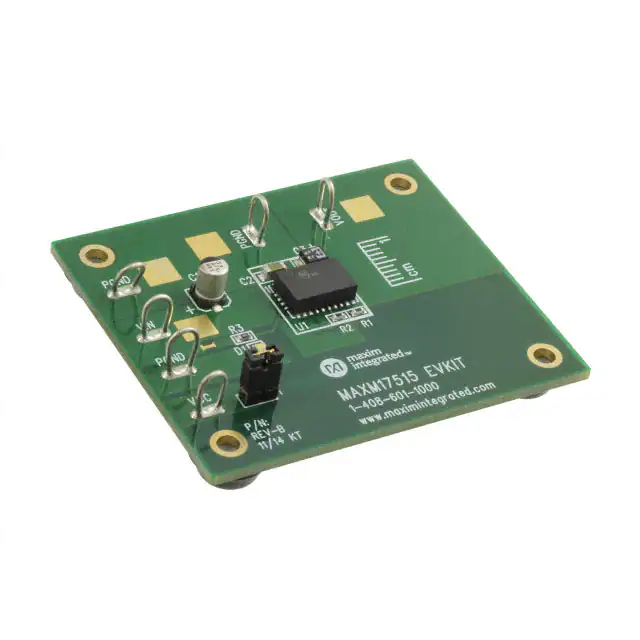

MAXM17515EVKIT#EVAL BOARD FOR MAXM17515 |
2,092 |
|
Datasheet | - | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 3.6V | 5A | 2.4V ~ 5.5V | Buck | 1MHz | Board(s) | MAXM17515 |
|
MAXM17516EVKIT#EVAL BOARD FOR MAXM17516 |
4,295 |
|
Datasheet | Himalaya | Box | Obsolete | DC/DC, Step Down | 1 Non-Isolated Output | - | 0.75V ~ 1.8V | 6A | 2.4V ~ 5.5V | Buck | 1MHz | Board(s) | MAXM17516 |
