Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

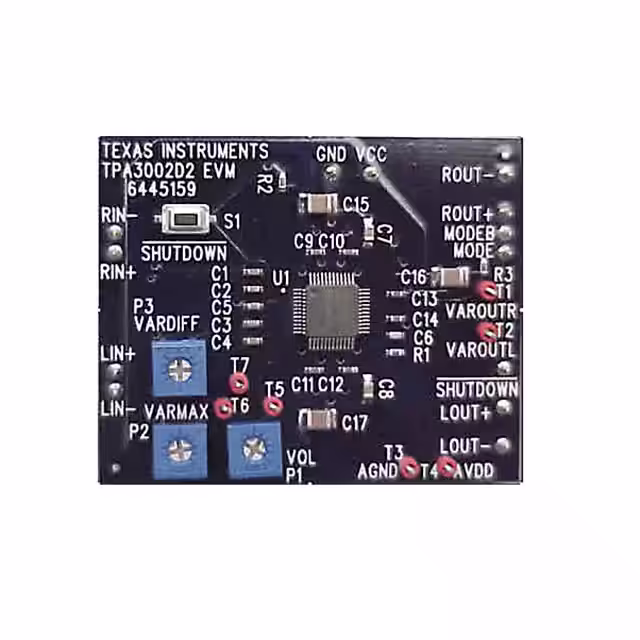

TPA3002D2EVMEVAL BOARD FOR TPA3002D2 |
4,837 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 9W x 2 @ 8Ohm | 8.5V ~ 14V | TPA3002D2 | Board(s) |
|

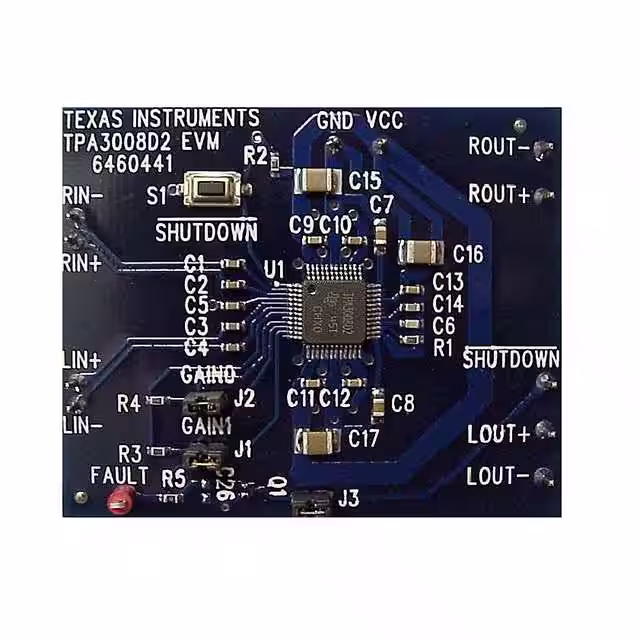

TPA3008D2EVMEVAL BOARD FOR TPA3008D2 |
3,157 |
|
Datasheet | - | Bulk | Active | Class D | 2-Channel (Stereo) | 10W x 2 @ 16Ohm | 8.5V ~ 18V | TPA3008D2 | Board(s) |
|

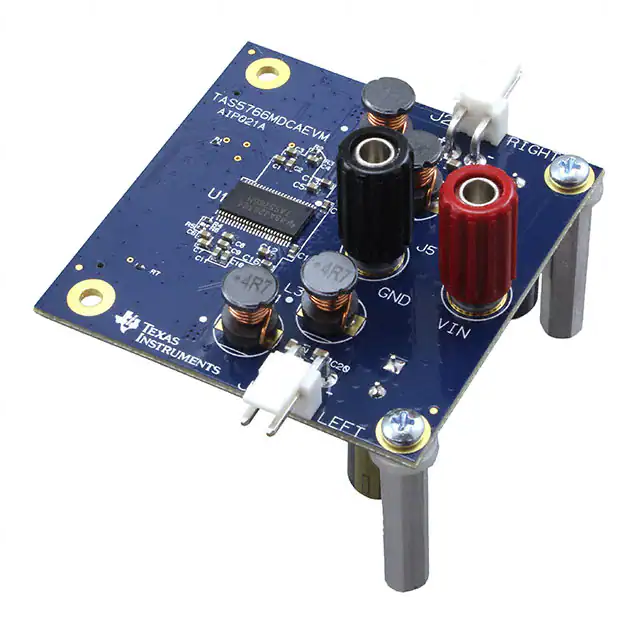

TAS5766MDCAEVMEVAL BOARD FOR TAS5766M |
2,881 |
|
Datasheet | PurePath™ | Bulk | Active | Class D | 2-Channel (Stereo) | 50W x 2 @ 4Ohm | 4.5V ~ 26.4V | TAS5766M | Board(s) |
|

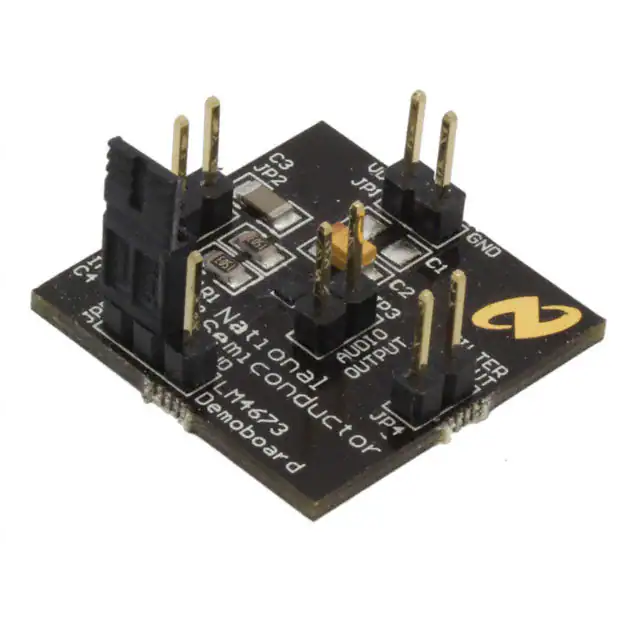

LM4673TMBDEVAL BOARD FOR LM4673 |
1,992 |
|
Datasheet | Boomer® | Box | Active | Class D | 1-Channel (Mono) | 2.65W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM4673 | Board(s) |
|

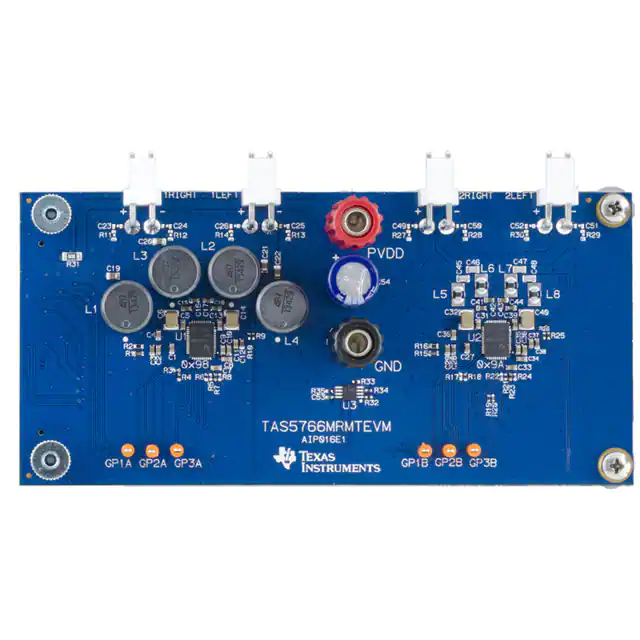

TAS5766MRMTEVMEVAL BOARD FOR TAS5766M |
3,198 |
|
Datasheet | PurePath™ | Bulk | Active | Class D | 2-Channel (Stereo) | 50W x 2 @ 4Ohm | 7V ~ 26V | TAS5766M | Board(s) |
|
TAS5756MDCAEVMEVAL BOARD FOR TAS5756M |
4,316 |
|
Datasheet | PurePath™ | Box | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 56W x 1 @ 4Ohm; 28W x 2 @ 4Ohm | 4.5V ~ 26.4V | TAS5756M | Board(s) |
|

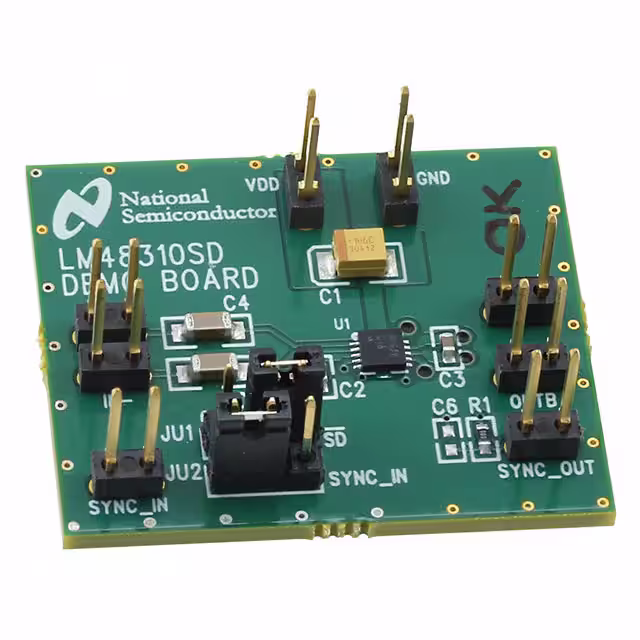

LM48310SDBD/NOPBEVAL BOARD FOR LM48310SD |
1,518 |
|
Datasheet | Boomer® | Bulk | Active | Class D | 1-Channel (Mono) | 2.6W x 1 @ 4Ohm | 2.4V ~ 5.5V | LM48310SD | Board(s) |
|
TAS2564YBGEVM-DCEVAL BOARD FOR TAS2564 |
2,604 |
|
Datasheet | - | Box | Active | Class D | 2-Channel (Stereo) | 8W x 2 @ 4Ohm | 2.7V ~ 5.5V | TAS2564 | Board(s) |
|

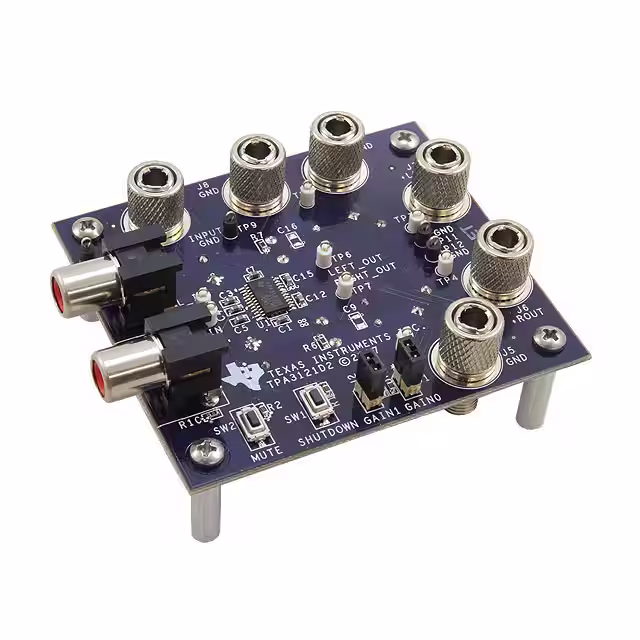

TPA3121D2EVMEVAL BOARD FOR TPA3121D2 |
3,073 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 30W x 1 @ 8Ohm; 15W x 2 @ 4Ohm | 10V ~ 26V | TPA3121D2 | Board(s) |
|

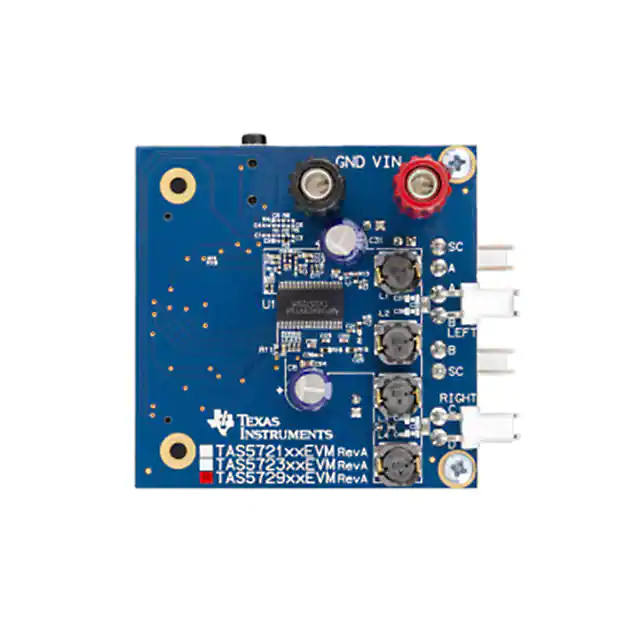

TAS5729MDEVMEVAL BOARD FOR TAS5729MD |
2,556 |
|
Datasheet | DirectPath™ | Box | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | - | - | TAS5729MD | Board(s) |
