Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

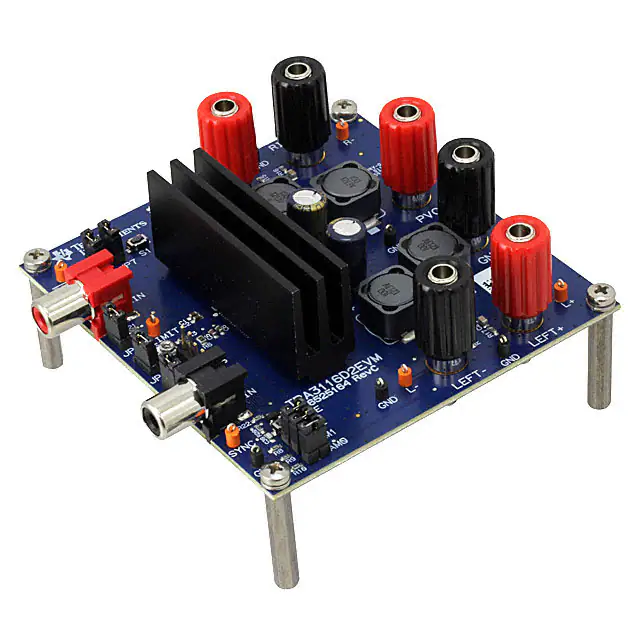

TPA3116D2EVMEVAL BOARD FOR TPA3116D2 |
4,804 |
|
Datasheet | SpeakerGuard™ | Box | Active | Class D | 2-Channel (Stereo) | 50W x 2 @ 4Ohm | 6V ~ 26V | TPA3116D2 | Board(s) |
|

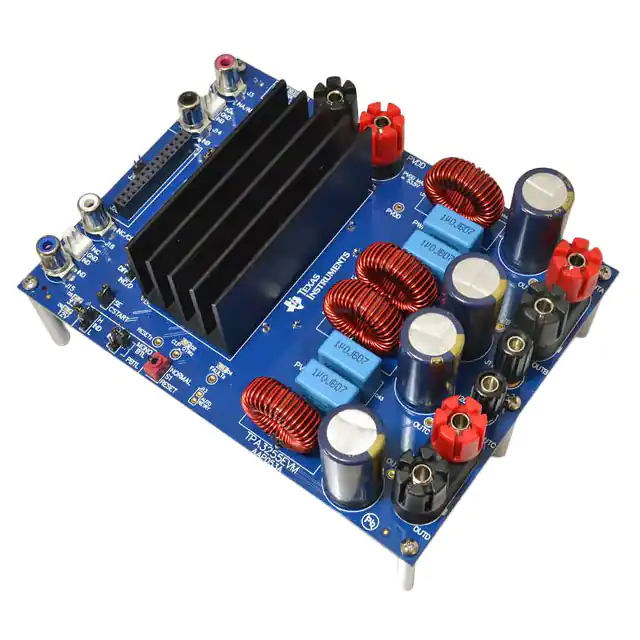

TPA3255EVMEVAL BOARD FOR TPA3255 |
4,785 |
|
Datasheet | PurePath™ | Bulk | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 605W x 1 @ 2Ohm; 315W x 2 @ 4Ohm | 18V ~ 53.5V | TPA3255 | Board(s) |
|

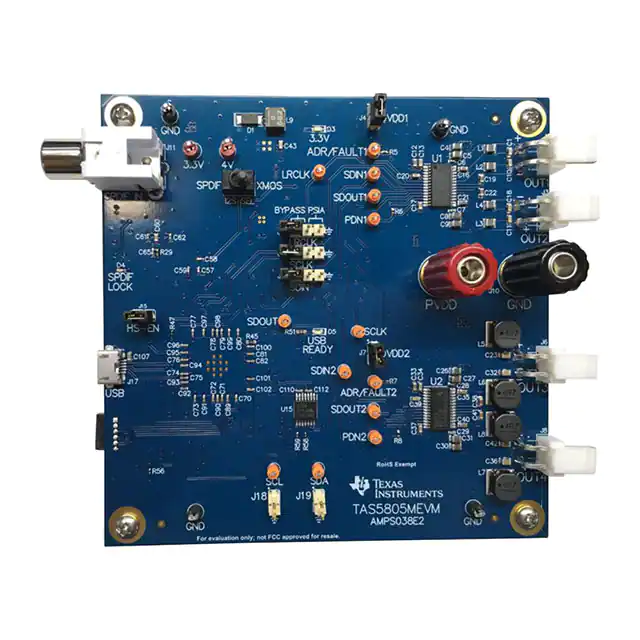

TAS5805MEVMEVAL BOARD FOR TAS5805M |
1,039 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | - | 4.5V ~ 26V | TAS5805M | Board(s) |
|
TAS2781EVMEVAL BOARD FOR TAS2781 |
2,980 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) | 25W x 1 @ 4Ohm | 1.65V ~ 1.95V | TAS2781 | Board(s) |
|

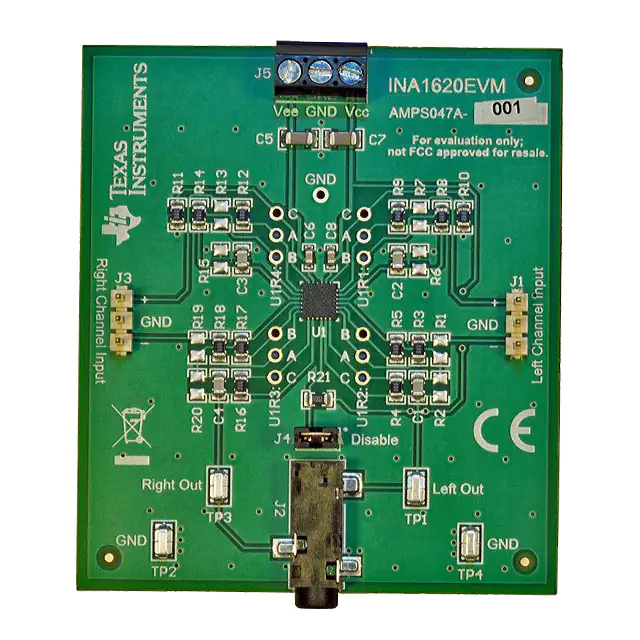

INA1620EVMEVAL BOARD FOR INA1620 |
1,336 |
|
Datasheet | - | Bulk | Active | Class AB | Headphones, 2-Channel (Stereo) | 142mW x 2 @ 32Ohm | ±15V | INA1620 | Board(s) |
|

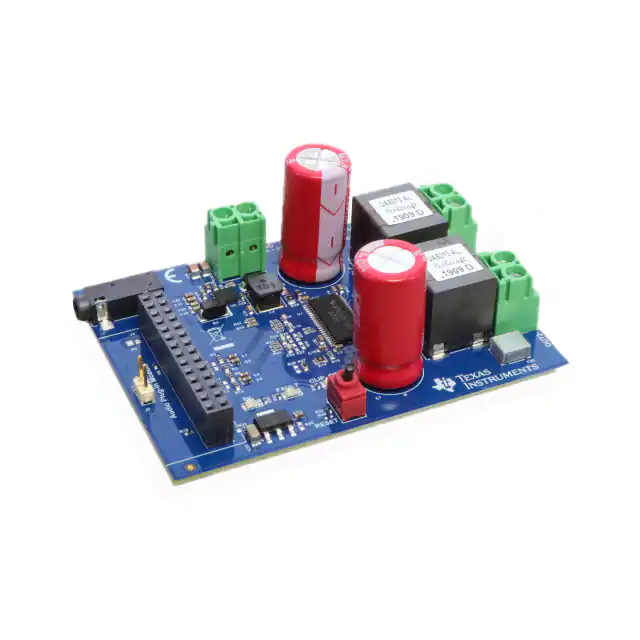

TPA3220EVM-MICROEVAL BOARD FOR TPA3220 |
2,820 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) or 2-Channel (Stereo) | 155W x 1 @ 3Ohm; 105W x 2 @ 4Ohm | 12V ~ 30V | TPA3220 | Board(s) |
|

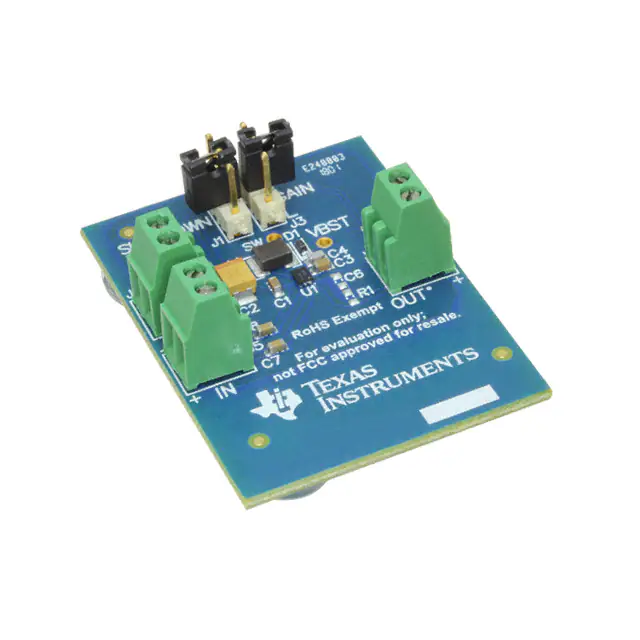

LM48580EVMEVAL BOARD FOR LM48580 |
3,750 |
|
Datasheet | Boomer® | Bulk | Active | Class H | 1-Channel (Mono) | - | 2.5V ~ 5.5V | LM48580 | Board(s) |
|

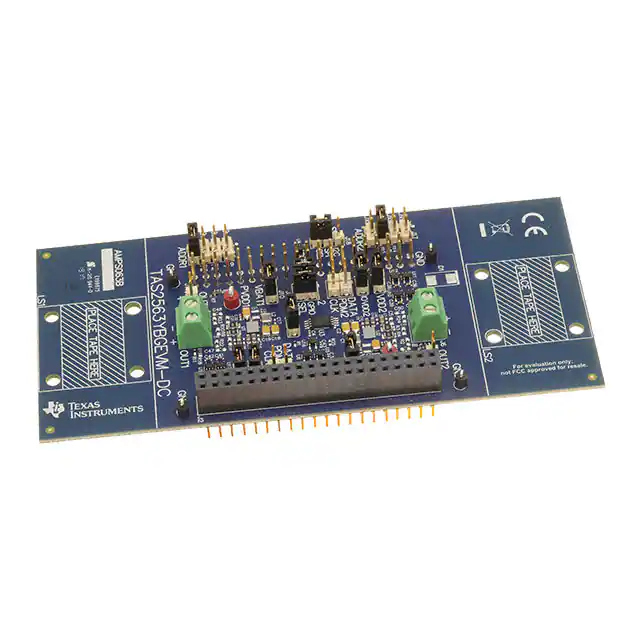

TAS2563YBGEVM-DCEVAL BOARD FOR TAS2563 |
1,969 |
|
Datasheet | - | Box | Active | Class D | 1-Channel (Mono) | 6W x 1 @ 4Ohm | 2.7V ~ 5.5V | TAS2563 | Board(s) |
|
|
TAS2505-Q1EVMEVAL BOARD FOR TAS2505-Q1 |
3,422 |
|
Datasheet | - | Bulk | Active | Class D | 1-Channel (Mono) with Mono Headphones | 2.5W x 1 @ 4Ohm | 2.7V ~ 5.5V | TAS2505-Q1 | Board(s) |
|

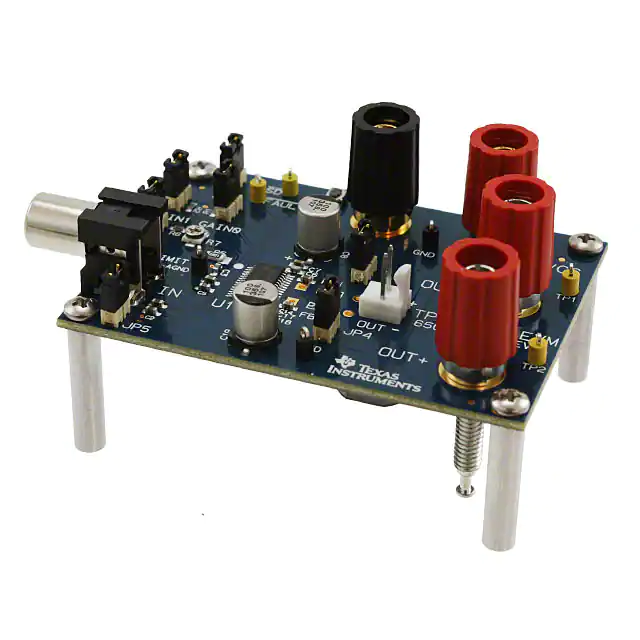

TPA3111D1EVMEVAL BOARD FOR TPA3111D1 |
4,479 |
|
Datasheet | SpeakerGuard™ | Box | Active | Class D | 1-Channel (Mono) | 10W x 1 @ 8Ohm | 8V ~ 26V | TPA3111D1 | Board(s) |
