Audio Amplifier Evaluation Boards
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Amplifier Type | Output Type | Max Output Power x Channels @ Load | Voltage - Supply | Utilized IC / Part | Contents |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

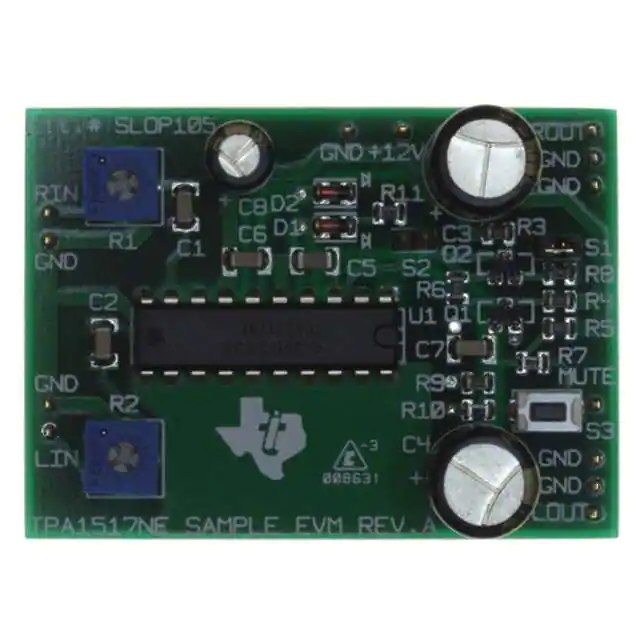

TPA1517NEEVMEVAL BOARD FOR TPA1517 |
2,398 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 2-Channel (Stereo) | 6W x 2 @ 4Ohm | 9.5V ~ 18V | TPA1517 | Board(s) |
|
TPA152EVMEVAL BOARD FOR TPA152 |
4,926 |
|
Datasheet | - | - | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 75mW x 2 @ 32Ohm | 4.5V ~ 5.5V | TPA152 | Board(s) |
|
|
TPA701MSOPEVMEVAL BOARD FOR TPA701 |
2,399 |
|
Datasheet | - | - | Obsolete | Class AB | 1-Channel (Mono) | 700mW x 1 @ 8Ohm | 2.5V ~ 5.5V | TPA701 | Board(s) |
|
|
TPA0103EVMEVAL BOARD FOR TPA0103 |
1,689 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 3-Channel | 2.1W x 1 @ 4Ohm; 575mW x 2 @ 4Ohm | 3V ~ 5.5V | TPA0103 | Board(s) |
|
|
TPA0232EVMEVAL BOARD FOR TPA0232 |
4,251 |
|
Datasheet | - | Bulk | Obsolete | Class AB | 2-Channel (Stereo) with Stereo Headphones | 2.8W x 2 @ 3Ohm | 4.5V ~ 5.5V | TPA0232 | Board(s) |
|
|
TPA122MSOPEVMEVAL BOARD FOR TPA122 |
3,185 |
|
Datasheet | - | Bulk | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 70mW x 2 @ 8Ohm | 2.5V ~ 5.5V | TPA122 | Board(s) |
|

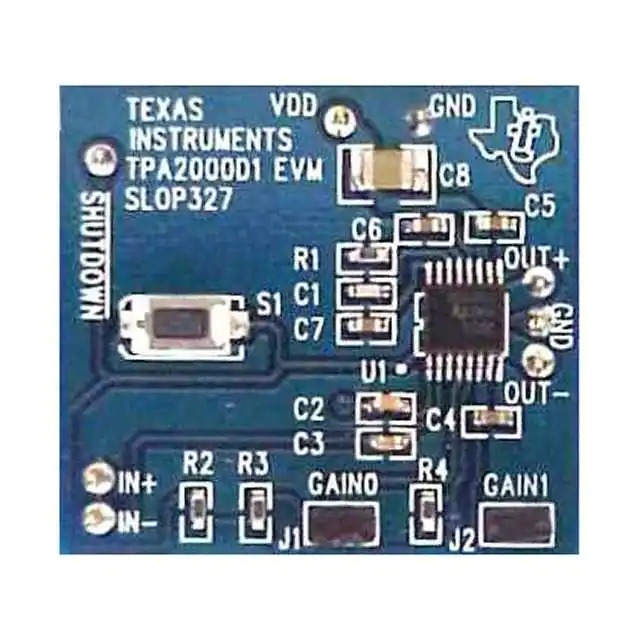

TPA2000D1EVMEVAL BOARD FOR TPA2000D1 |
2,175 |
|
Datasheet | - | - | Obsolete | Class D | 1-Channel (Mono) | 2W x 1 @ 4Ohm | 2.7V ~ 5.5V | TPA2000D1 | Board(s) |
|
|
TPA6111A2EVMEVAL BOARD FOR TPA6111A2 |
4,322 |
|
Datasheet | - | Bulk | Obsolete | Class AB | Headphones, 2-Channel (Stereo) | 150mW x 2 @ 16Ohm | 2.5V ~ 5.5V | TPA6111A2 | Board(s) |
|
|
TPA3200D1EVMEVAL BOARD FOR TPA3200D1 |
2,082 |
|
Datasheet | - | Box | Obsolete | Class D | 1-Channel (Mono) | 20W x 1 @ 8Ohm | 8V ~ 18V | TPA3200D1 | Board(s) |
|

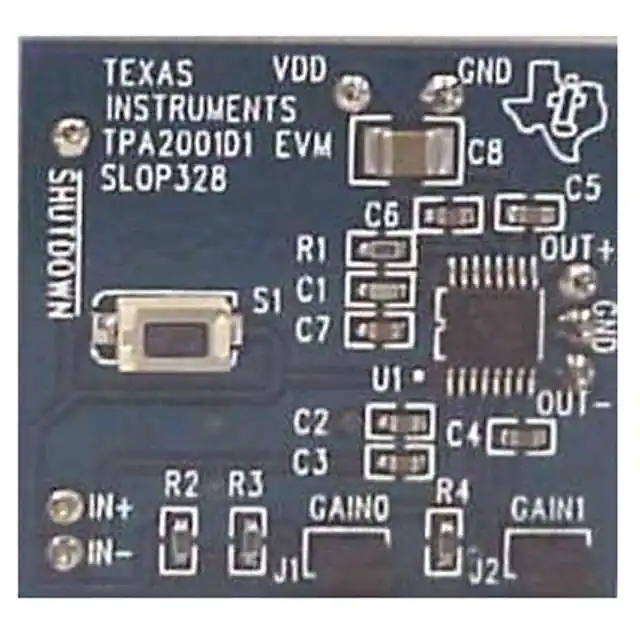

TPA2001D1EVMEVAL BOARD FOR TPA2001D1 |
4,446 |
|
Datasheet | - | Bulk | Obsolete | Class D | 1-Channel (Mono) | 1W x 1 @ 8Ohm | 2.7V ~ 5.5V | TPA2001D1 | Board(s) |
