Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
600128CN1ROTARY ENCODER OPTICAL 128PPR |
4,169 |
|
- |
600 | Bulk | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 128 | 5V | 1/4" Dia Round End | No | No | Panel, PCB Through Hole | Vertical | Cable with Connector | 10M | - | - |
|
EM14R0B-R20-R064SROTARY ENCODER OPTICAL 64PPR |
1,532 |
|
Datasheet | EM14 | Tray | Obsolete | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 1M | - | - |
|

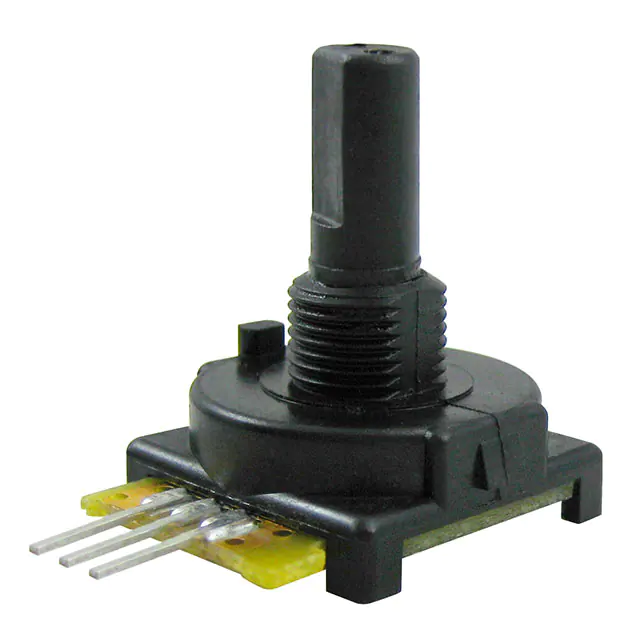

510E1A48F204PCROTARY ENCODER MECHANICAL 4PPR |
2,155 |
|
Datasheet | 510 | Box | Obsolete | Not Verified | Mechanical | Gray Code (Absolute) | 4 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
510E1A48F204PDROTARY ENCODER MECHANICAL 4PPR |
1,179 |
|
Datasheet | 510 | Box | Obsolete | Not Verified | Mechanical | Gray Code (Absolute) | 4 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
288V222R161B2ROTARY ENCODER MECHANICAL 16PPR |
2,430 |
|
Datasheet | 288 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Round End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 50K | - | - |
|

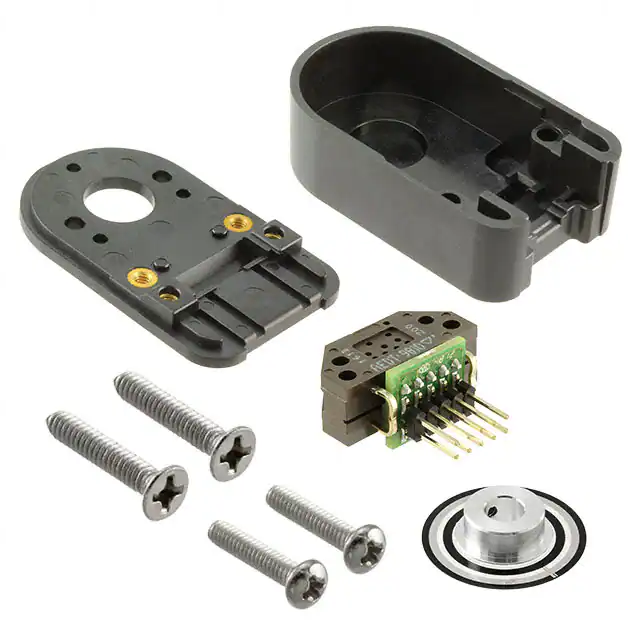

AEDC-5550-W12ROTARY ENCODER OPTICAL 5000PPR |
3,612 |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | - | - | - | - | - | - |
|

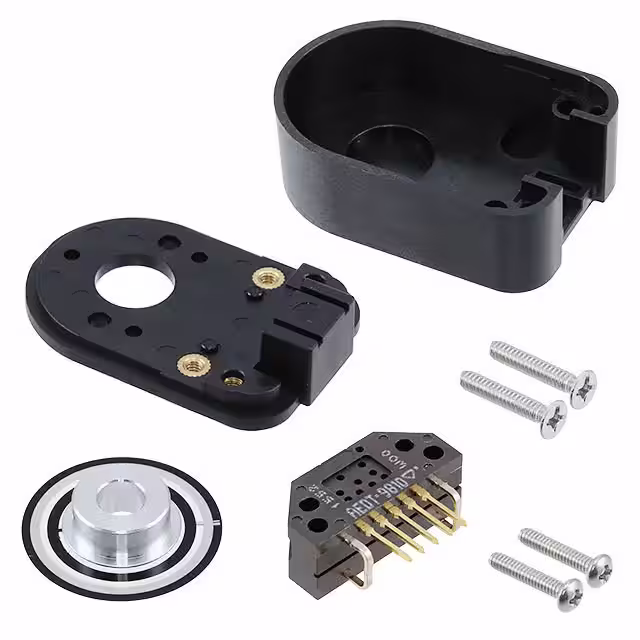

AEDC-5560-W12ROTARY ENCODER OPTICAL 2500PPR |
1,771 |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2500 | 4.5V ~ 5.5V | Hole for Shaft | No | No | - | - | - | - | - | - |
|
|
AEDC-5560-W13ROTARY ENCODER OPTICAL 2500PPR |
1,019 |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2500 | 4.5V ~ 5.5V | Hole for Shaft | No | No | - | - | - | - | - | - |
|
|
AEDC-5560-Z13ROTARY ENCODER OPTICAL 5000PPR |
2,784 |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 5000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | - | - | - | - | - | - |
|
AEDL-5810-W11ROTARY ENCODER OPTICAL 2500PPR |
1,863 |
|
Datasheet | AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2500 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
|
AEDL-5810-W12ROTARY ENCODER OPTICAL 2500PPR |
3,964 |
|
Datasheet | AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2500 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
|
AEDL-5810-J01ROTARY ENCODER OPTICAL 1024PPR |
1,229 |
|
Datasheet | AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1024 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
|
AEDL-5810-U06ROTARY ENCODER OPTICAL 2048PPR |
1,256 |
|
Datasheet | AEDL-5 | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2048 | 4.5V ~ 5.5V | Shaft | No | No | - | - | - | - | - | - |
|
|
AEDT-9810-A00ROTARY ENCODER OPTICAL 500PPR |
1,591 |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 500 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
|
AEDT-9811-I00ROTARY ENCODER OPTICAL 512PPR |
3,189 |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 512 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
|
AEDT-9811-L00ROTARY ENCODER OPTICAL 1250PPR |
2,170 |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 1250 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
|
AEDT-9811-R00ROTARY ENCODER OPTICAL 4096PPR |
4,287 |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 4096 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
|
AEDT-9811-U00ROTARY ENCODER OPTICAL 2048PPR |
1,924 |
|
Datasheet | - | Bulk | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2048 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
|
|
AEDC-5520-B03ENCODER 2CH 1000CPR 1/8" |
3,760 |
|
Datasheet | AEDC-55xx | Bulk | Active | Not Verified | Optical | Voltage | 1000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
|
|
AEDC-5550-B12ENCODER 3CH 1000CPR 6MM |
4,029 |
|
Datasheet | AEDC-55xx | Bulk | Active | Not Verified | Optical | Differential Voltage | 1000 | 4.5V ~ 5.5V | Hole for Shaft | No | No | Chassis Mount | Right Angle | Terminal Pins | - | - | - |
