Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1083066INCREMENTAL ENCODERS, DFS60, DFS |
4,787 |
|
Datasheet | DFS60 | Bulk | Active | - | Incremental | Quadrature (Incremental) | 1024 | 4.5V ~ 32V | Hole for Shaft | No | No | Chassis Mount | User Selectable | Cable | 36B | - | - |
|
|
1038033MAGNETIC LINEAR ENCODERS, TTK70, |
3,767 |
|
Datasheet | TTK70 | Bulk | Active | - | Magnetic | SSI | - | 4.5V ~ 30V | Shaft | No | No | Chassis Mount | User Selectable | Connector | - | - | - |
|
|
1037434MAGNETIC LINEAR ENCODERS, TTK70, |
3,474 |
|
Datasheet | TTK70 | Bulk | Active | - | Magnetic | Digital | - | 7V ~ 12V | Shaft | No | No | Chassis Mount | User Selectable | Connector | - | - | - |
|
|
6039749WIRE DRAW ENC ANALOG |
4,755 |
|
Datasheet | EcoLine | Bulk | Active | - | Absolute | Quadrature (Analog) | - | 19V ~ 33V | Cable Pull | No | No | Chassis Mount | User Selectable | Cable | 1M | - | - |
|
|
6028625WIRE DRAW MECHANISM |
1,478 |
|
Datasheet | - | Bulk | Active | - | Mechanical | Digital | - | - | Cable Pull | No | No | Chassis Mount | User Selectable | Connector | 1M | - | - |
|
|
6028626WIRE DRAW MECHANISM, MRA-F130-10 |
1,071 |
|
Datasheet | - | Bulk | Active | - | Mechanical | Digital | - | - | Thumbwheel | No | No | Chassis Mount | User Selectable | Connector | 1M | - | - |
|
|
6028627WIRE DRAW MECHANISM |
4,123 |
|
Datasheet | - | Bulk | Active | - | Mechanical | Digital | - | - | Cable Pull | No | No | Chassis Mount | User Selectable | Connector | 1M | - | - |
|

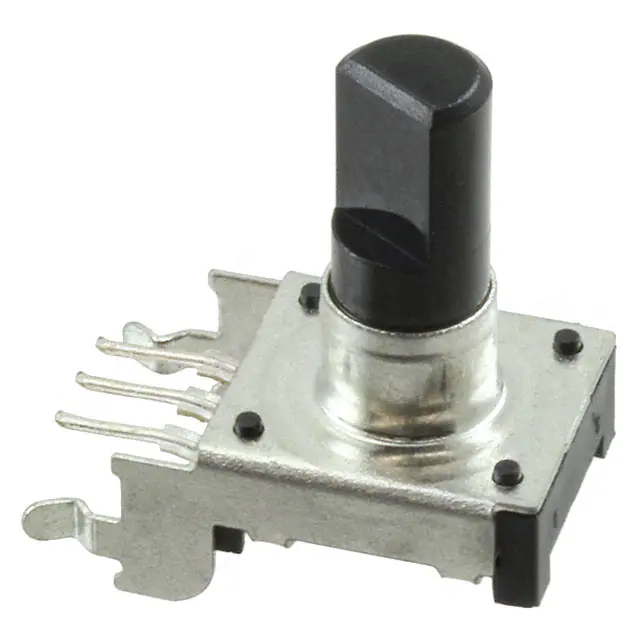

PEC12R-2120F-N0012ROTARY ENCODER MECHANICAL 12PPR |
4,695 |
|
Datasheet | PEC12R | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | No | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEC12R-2130F-S0012ROTARY ENCODER MECHANICAL 12PPR |
2,166 |
|
Datasheet | PEC12R | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
TMR311023 Bit Angular Encoder IC |
100 |
|
Datasheet | - | Bulk | Active | - | Magnetic | SPI | Programmable | 3.3V ~ 5V | External Magnet, Not Included | No | No | Surface Mount | Vertical | SMD (SMT) Tab | - | - | - |
|
12CE1H25F12224ROT ENCODER MECH 12PPR BLUE LED |
3,397 |
|
Datasheet | 12CE | Tray | Active | Not Verified | Mechanical | Quadrature, 2-Bit | 12 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
RMM44A3A00Magnet for recessing in shafts |
1,987 |
|
Datasheet | RMM Magnet | Tape & Box (TB) | Active | - | Magnetic | - | - | - | - | No | No | - | - | - | - | - | - |
|
|
RMH06A3A00Magnet for assembly into shaft |
3,613 |
|
Datasheet | RMH Magnet | Tape & Box (TB) | Active | - | Magnetic | - | - | - | - | No | No | - | - | - | - | - | - |
|
|
KR9600-2672PKEYBOARD ENCODER |
2,204 |
|
- |
* | Bulk | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
EC09P20V-217ROTARY ENCODER MECHANICAL 20PPR |
3,747 |
|
- |
- | Bulk | Obsolete | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
RMA05A3A00Magnet for assembly onto shaft |
4,484 |
|
Datasheet | RMA Magnet | Tape & Box (TB) | Active | - | Magnetic | - | - | - | - | No | No | - | - | - | - | - | - |
|
2591MICRO GEARMTR 2PK OPTICL ENC KIT |
1,707 |
|
Datasheet | - | - | Active | Not Verified | Optical | Digital, Quadtrature | 12 | 3.3V | Hole for Shaft | No | No | Servo Mount | Vertical | Surface Mount (SMD,SMT) | - | - | - |
|
512-15020000011HOLLOW-SHAFT ENCODER, THT VERT |
3,697 |
|
Datasheet | - | Box | Active | Not Verified | Incremental | Pulse | 2 | 24V | Hole for Shaft | Yes | No | Surface Mount | Vertical | SMD (SMT) Tab | 10K | - | - |
|
427-051141AL0322-BIT ENCODER, SMD |
3,803 |
|
Datasheet | - | Box | Active | Not Verified | - | Pulse | 2 | 5V | 6mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | SMD (SMT) Tab | 100K | - | - |
|
510E1A48F209PBROTARY ENCODER MECHANICAL 9PPR |
3,238 |
|
Datasheet | 510 | Bulk | Obsolete | Not Verified | Mechanical | Gray Code (Absolute) | 9 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
