Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
3315P-001-016LROTARY ENCODER MECHANICAL 16PPR |
387 |
|
Datasheet | 3315 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
EVE-YPCAJ016BROTARY ENCODER MECHANICAL 16PPR |
486 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-YPCAJ008BROTARY ENCODER MECHANICAL 8PPR |
480 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

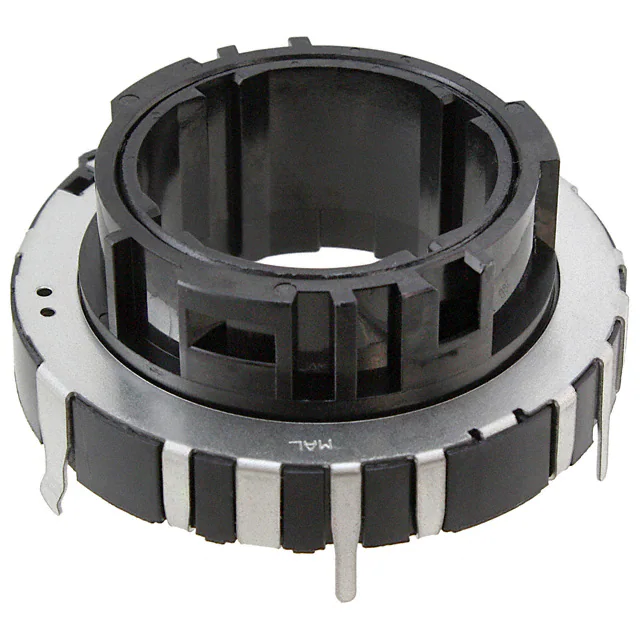

EVQ-V4300418BROTARY ENCODER MECHANICAL |
186 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | - | - | - | - | - | - | - | - | - | - | - |
|
|
3315R-102-016LROTARY ENCODER MECHANICAL 16PPR |
362 |
|
Datasheet | 3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Flatted End | No | No | Panel Mount | Vertical | PC Pin | 25K | - | - |
|
ECW0J-B24-HC0006LROTARY ENCODER MECHANICAL 6PPR |
282 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-B24-AB0012LROTARY ENCODER MECHANICAL 12PPR |
285 |
|
Datasheet | ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

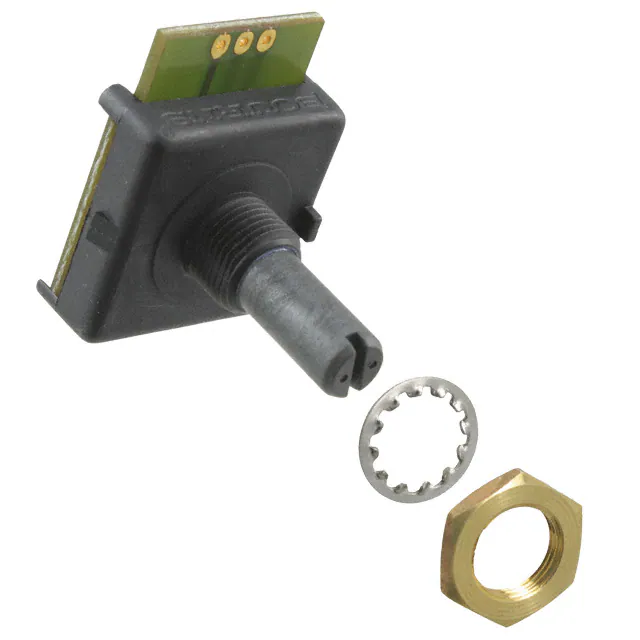

ECW0J-B24-CC0006LROTARY ENCODER MECHANICAL 6PPR |
255 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-B28-AC0024LROTARY ENCODER MECHANICAL 24PPR |
283 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ESD1D-S00-GC0024LROTARY ENCODER MECHANICAL 24PPR |
104 |
|
Datasheet | ES | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | - | Yes | No | PCB, Surface Mount | Vertical | PC Pin | 200K | - | - |
|
AEDR-8600-100IC,2CH,REEL,304LPI,1000PC |
980 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-8600-102IC,2CH,REEL,304LPI,100PC |
400 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
EM14R0B-M25-L064SROTARY ENCODER OPTICAL 64PPR |
118 |
|
Datasheet | EM14 | Bulk | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
C14D16N-C3P15 MM, 16 PPR, 6.35 MM PLASTIC S |
186 |
|
Datasheet | C14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 4.75V ~ 5.25V | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
AR25-AS0125BITS ABS UPTO 60MM SSI/485/ESL |
449 |
|
Datasheet | - | Tray | Active | Not Verified | Absolute | Digital, SSI | - | - | - | No | No | - | - | - | - | - | - |
|
|
AR25-AB0225BITS ABS UPTO 60MM BISS C 1K |
953 |
|
Datasheet | - | Tray | Active | Not Verified | Absolute | BiSS-C | 1000 | - | - | No | No | - | - | - | - | - | - |
|
|
AR25-AB0125BITS ABS UPTO 60MM BISS C 100 |
185 |
|
Datasheet | - | Tray | Active | Not Verified | Absolute | BiSS-C | 100 | - | - | No | No | - | - | - | - | - | - |
|
|
AR25-A18TALUM CW 512,THRU ID 12MM |
496 |
|
Datasheet | - | Tray | Active | Not Verified | - | - | 512 | - | - | No | No | - | - | - | - | - | - |
|
|
AR25-A13TALUM CW 512,THRU ID 8MM |
443 |
|
Datasheet | - | Tray | Active | Not Verified | - | - | 512 | - | - | No | No | - | - | - | - | - | - |
|
AEDT-9810-W00ROTARY ENCODER OPTICAL 2500PPR |
179 |
|
Datasheet | - | Tube | Active | Not Verified | Optical | Quadrature with Index (Incremental) | 2500 | 4.5V ~ 5.5V | Codewheel Not Included | No | No | Chassis Mount | User Selectable | Terminal Pins | - | - | - |
