Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AEDR-8711-100ROTARY ENCODER OPTICAL PROG |
2,322 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
|
AEDR-8712-100ROTARY ENCODER OPTICAL PROG |
4,093 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | Programmable | 3.3V, 5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
AEDR-9820A-100AUTO HT, ENCODER 225LPI, REEL 1K |
4,498 |
|
Datasheet | AEDR | Tape & Reel (TR) | Active | Not Verified | Optical | Digital | 225 LPI | 2.97V ~ 3.63V, 4.5V ~ 5.5V | Codewheel Not Included | No | No | Surface Mount | - | SMD (SMT) Tab | - | - | - |
|
EM14R1D-M20-R008NROTARY ENCODER OPTICAL 8PPR |
1,212 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 5V | 6mm Dia Flatted End | Yes | No | Panel, PCB Through Hole | Right Angle | PC Pin | 200K | - | - |
|
|
EM14C1A-E24-L008NROTARY ENCODER OPTICAL 8PPR |
3,564 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 8 | 5V | 1/8" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
|
EM14C1A-E28-L032NROTARY OPTICAL ENCODER - 14MM |
1,188 |
|
Datasheet | EM14 | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
EM14R1D-M25-L032NROTARY OPTICAL ENCODER - 14MM |
2,246 |
|
Datasheet | EM14 | Tray | Active | Not Verified | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
EM14C0D-E28-L064SROTARY ENCODER OPTICAL 64PPR |
2,666 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/8" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|

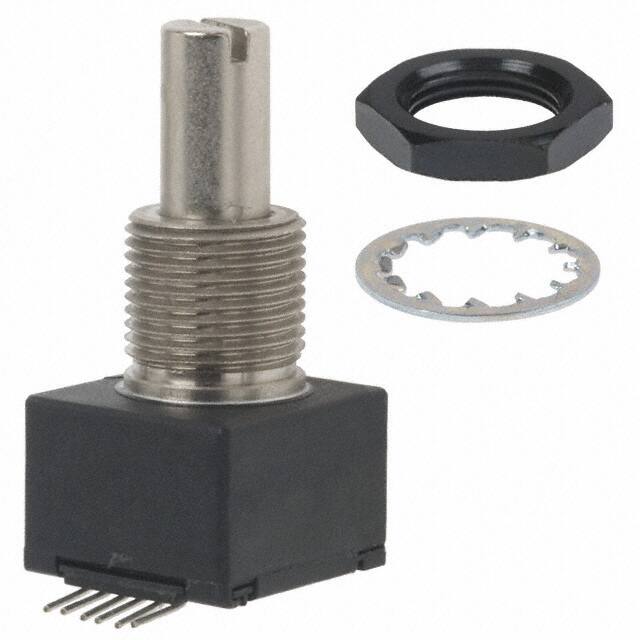

EM14R0D-R20-R016SROTARY ENCODER OPTICAL 16PPR |
1,592 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 6mm Dia Slotted End | No | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 1M | - | - |
|
EM14A0D-B24-L032SROTARY ENCODER OPTICAL 32PPR |
2,965 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14A0D-B24-L064SROTARY ENCODER OPTICAL 64PPR |
1,048 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14A0D-B28-L032SROTARY ENCODER OPTICAL 32PPR |
3,346 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14A0D-B28-L064SROTARY ENCODER OPTICAL 64PPR |
4,585 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
EM14A0D-C28-L032SROTARY ENCODER OPTICAL 32PPR |
3,889 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14C0D-E24-L016SROTARY ENCODER OPTICAL 16PPR |
4,691 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/8" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14C0D-E24-L032SROTARY ENCODER OPTICAL 32PPR |
2,787 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 32 | 5V | 1/8" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14A0A-B24-L064SROTARY ENCODER OPTICAL 64PPR |
2,861 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14A0A-C24-L064SROTARY ENCODER OPTICAL 64PPR |
4,948 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14A0D-C24-L016SROTARY ENCODER OPTICAL 16PPR |
3,156 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 16 | 5V | 1/4" Dia Flatted End | No | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 1M | - | - |
|
|
EM14C0A-E24-L064SROTARY ENCODER OPTICAL 64PPR |
3,935 |
|
Datasheet | EM14 | Tray | Active | Not Verified | Optical | Quadrature (Incremental) | 64 | 5V | 1/8" Dia Slotted End | No | Yes | Panel, PCB Through Hole | Vertical | Cable with Connector | 1M | - | - |
