Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EVE-VGHFL816BROTARY ENCODER MECHANICAL 16PPR |
1,386 |
|
Datasheet | EVEV | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
3315Y-001-016LROTARY ENCODER MECHANICAL 16PPR |
217 |
|
Datasheet | 3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 25K | - | - |
|
3315C-111-016LROTARY ENCODER MECHANICAL 16PPR |
161 |
|
Datasheet | 3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 1/8" Dia Flatted End | No | No | Panel, PCB Through Hole | Right Angle | PC Pin | 25K | - | - |
|

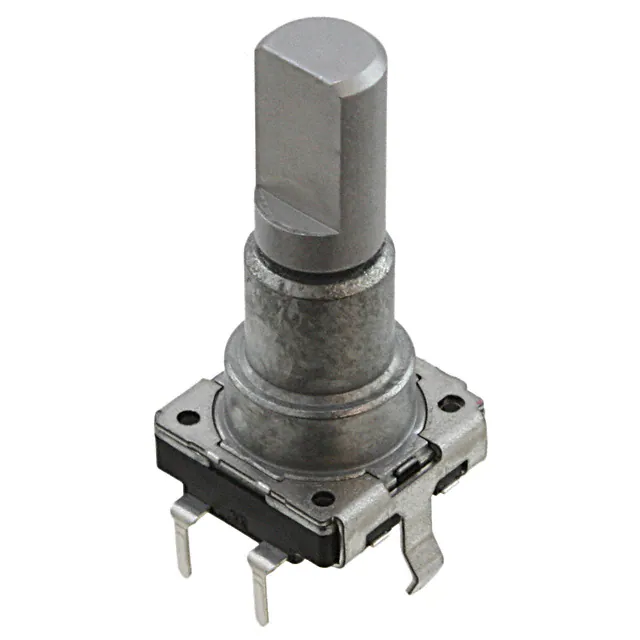

EVE-WRHJR012BROTARY ENCODER MECHANICAL 12PPR |
551 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 12 | 10V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 200K | - | - |
|
EVE-YBCAJ016BROTARY ENCODER MECHANICAL 16PPR |
399 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | - | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVE-YBCAJ008BROTARY ENCODER MECHANICAL 8PPR |
406 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | - | 8mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

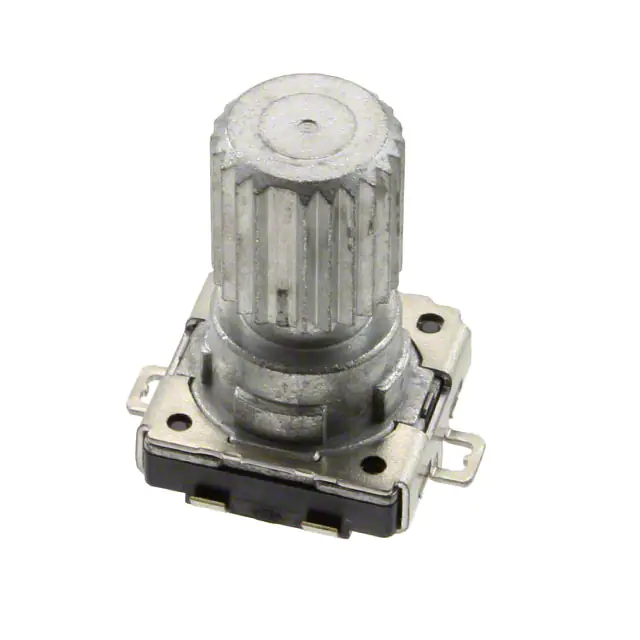

EVE-UPCAH516BROTARY ENCODER MECHANICAL 16PPR |
959 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | 5V | 8mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Solder Tab | 30K | - | - |
|

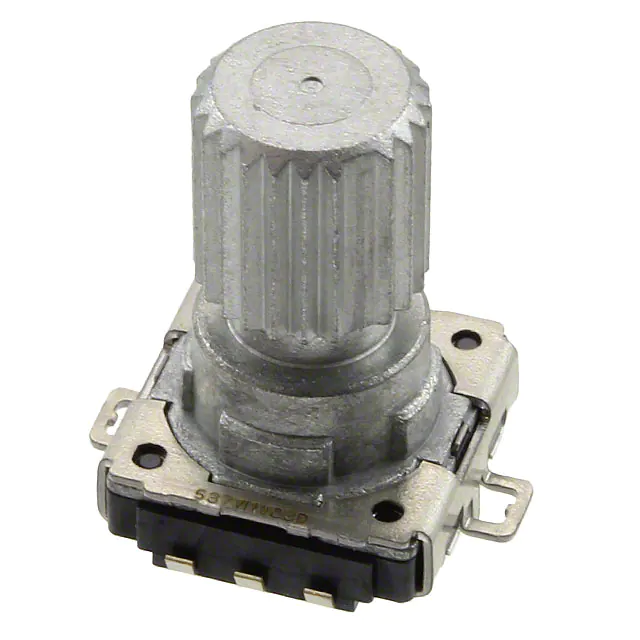

EVE-UPCAH508BROTARY ENCODER MECHANICAL 8PPR |
254 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | 5V | 8mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Solder Tab | 30K | - | - |
|

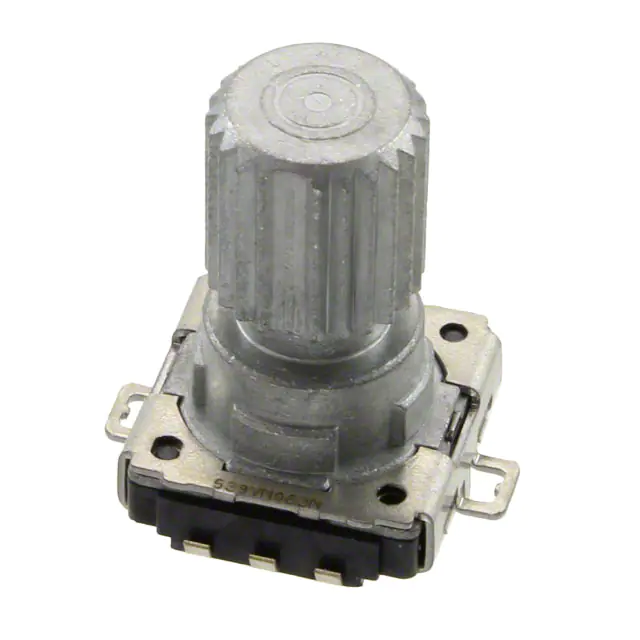

EVE-UBCAH508BROTARY ENCODER MECHANICAL 8PPR |
173 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 8 | 5V | 8mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Solder Tab | 30K | - | - |
|

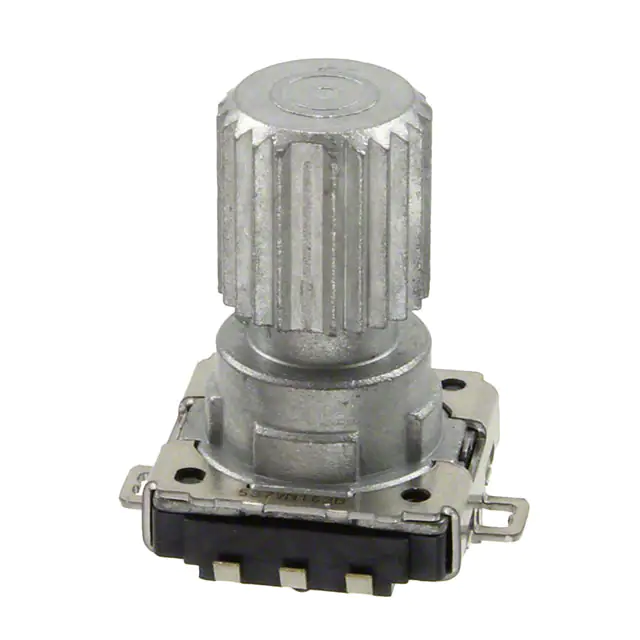

EVE-UBCAH516BROTARY ENCODER MECHANICAL 16PPR |
920 |
|
Datasheet | - | Tray | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 16 | 5V | 8mm Dia Flatted End | Yes | Yes | Surface Mount | Vertical | Solder Tab | 30K | - | - |
|
290VAB0R201B1ROTARY ENCODER MECHANICAL 20PPR |
400 |
|
Datasheet | 290 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Round End | No | Yes | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
482016564002WS-ENTV INCREMENTAL ENCODER SWIT |
135 |
|
Datasheet | WS-ENTV | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 15K | - | - |
|
PEC09-2120K-T0012ROTARY ENCODER MECHANICAL 12PPR |
885 |
|
Datasheet | PEC09 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | - | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
ECW0J-B16-BE0024LROTARY ENCODER MECHANICAL 24PPR |
226 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|

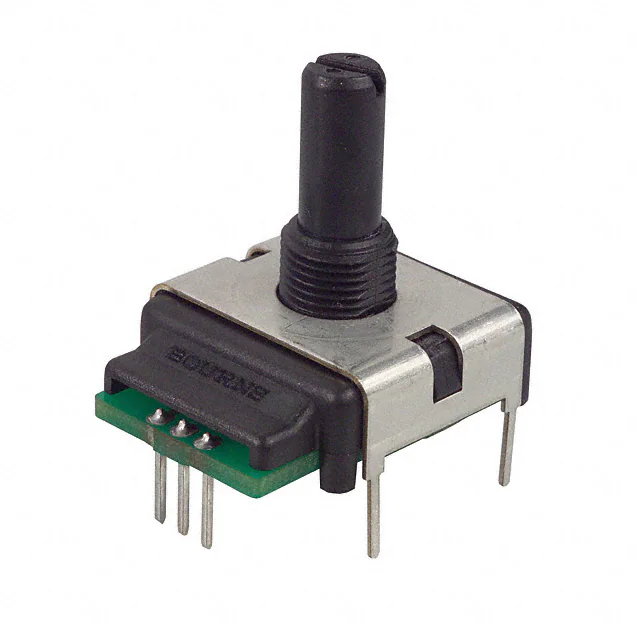

ECW1D-B24-BC0024LROTARY ENCODER MECHANICAL 24PPR |
129 |
|
Datasheet | ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ACZ11BR1E-20KQD1-20CROTARY ENCODER INCREMENT 20PPR |
873 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
482012714003WS-ENTV INCREMENTAL ENCODER SWIT |
111 |
|
Datasheet | WS-ENTV | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
3315Y-001-006LROTARY ENCODER MECHANICAL 6PPR |
240 |
|
Datasheet | 3315 | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 6 | - | 1/8" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
ECW0D-B24-AE0024LROTARY ENCODER MECHANICAL 24PPR |
533 |
|
Datasheet | ECW | Bulk | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Slotted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 200K | - | - |
|
ECW1J-C24-CC0024LROTARY ENCODER MECHANICAL 24PPR |
229 |
|
Datasheet | ECW | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 1/4" Dia Flatted End | Yes | No | Panel, PCB Through Hole | Vertical | Solder Lug | 200K | - | - |
