Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DP11V2020A30KDP11 VER 20P 20DET 30K M7*5MM |
4,072 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Knurled End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11V2020B30KDP11 VER 20P 20DET 30K M7*7MM |
4,385 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Knurled End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11V2020A30PDP11 VER 20P 20DET 30P M7*5MM |
4,712 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Round End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11V2020B30PDP11 VER 20P 20DET 30P M7*7MM |
1,406 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Round End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11V2020A30SDP11 VER 20P 20DET 30S M7*5MM |
3,894 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Slotted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11V2020B30SDP11 VER 20P 20DET 30S M7*7MM |
2,254 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Slotted End | Yes | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11VN20A30FDP11 VER 20P NDET 30F M7*5MM |
2,587 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11VN20B30FDP11 VER 20P NDET 30F M7*7MM |
1,175 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Flatted End | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11VN20A30KDP11 VER 20P NDET 30K M7*5MM |
1,112 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Knurled End | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11VN20B30KDP11 VER 20P NDET 30K M7*7MM |
1,037 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Knurled End | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11VN20A30PDP11 VER 20P NDET 30P M7*5MM |
4,849 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11VN20B30PDP11 VER 20P NDET 30P M7*7MM |
4,135 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11VN20A30SDP11 VER 20P NDET 30S M7*5MM |
1,130 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Slotted End | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
|
DP11VN20B30SDP11 VER 20P NDET 30S M7*7MM |
4,243 |
|
Datasheet | DP11 | Box | Active | Not Verified | Incremental | Pulse | 20 | 5V | 6mm Dia Slotted End | No | No | PCB, Through Hole | Vertical | PC Pin | 15K | - | - |
|
290VAB0R201A1ROTARY ENCODER MECHANICAL 20PPR |
4,825 |
|
Datasheet | 290 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Round End | No | No | PCB, Through Hole | Vertical | PC Pin | 50K | - | - |
|
|
PEC09-2215F-S0012ENCODER |
2,399 |
|
Datasheet | PEC09 | Tray | Active | Not Verified | Incremental | Quadrature, 2-Bit | 12 | - | 6mm Dia Flatted End | No | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 30K | - | - |
|
ACZ16BR2E-25FD1-24CROTARY ENCODER INCREMENT 24PPR |
4,518 |
|
Datasheet | ACZ16 | Bulk | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
ACZ11BR4E-15KQD1-20CROTARY ENCODER INCREMENT 20PPR |
2,393 |
|
Datasheet | ACZ11 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|

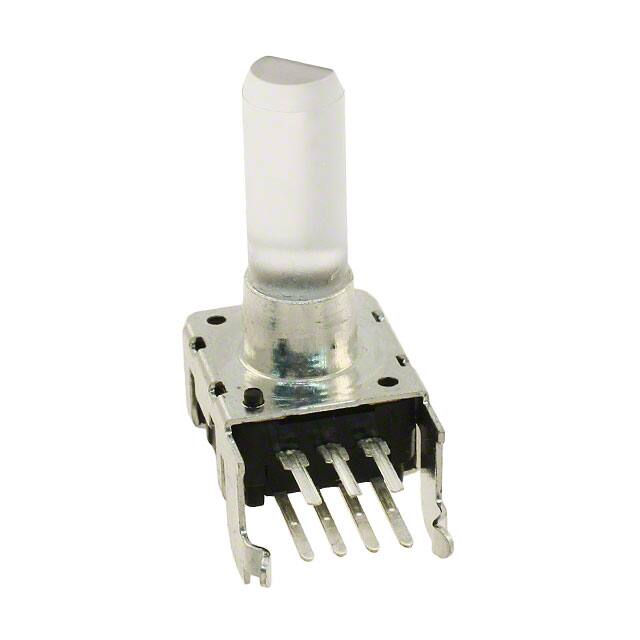

PEL12D-2226F-S3024ROTARY ENCODER MECHANICAL 24PPR |
1,413 |
|
Datasheet | PEL12D | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End, Illuminated | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
PEL12D-4021F-S1024ROTARY ENCODER MECHANICAL 24PPR |
2,886 |
|
Datasheet | PEL12D | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 24 | - | 6mm Dia Flatted End, Illuminated | No | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
