Encoders
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Programmable | Encoder Type | Output Type | Pulses per Revolution | Voltage - Supply | Actuator Type | Detent | Built in Switch | Mounting Type | Orientation | Termination Style | Rotational Life (Cycles Min) | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACZ16BR1E-15KQD1-12CROTARY ENCODER INCREMENT 12PPR |
1,576 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
ACZ16BR1E-15KQD1-20CROTARY ENCODER INCREMENT 20PPR |
1,235 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
ACZ16BR1E-20FA1-12CROTARY ENCODER INCREMENT 12PPR |
4,446 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
|
ACZ16BR1E-20FA1-20CROTARY ENCODER INCREMENT 20PPR |
1,524 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Right Angle | PC Pin | 100K | - | - |
|
ACZ16BR1E-20FD1-12CROTARY ENCODER INCREMENT 12PPR |
1,284 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
ACZ16BR1E-20FD1-20CROTARY ENCODER INCREMENT 20PPR |
4,850 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
ACZ16BR1E-20KQD1-12CROTARY ENCODER INCREMENT 12PPR |
3,398 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 12 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
ACZ16BR1E-20KQD1-20CROTARY ENCODER INCREMENT 20PPR |
1,439 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 20 | 5V | 6mm Dia Knurled End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
ACZ16BR1E-15FD1-24CROTARY ENCODER INCREMENT 24PPR |
4,004 |
|
Datasheet | ACZ16 | Bulk | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
ACZ16BR1E-20FD1-24CROTARY ENCODER INCREMENT 24PPR |
2,703 |
|
Datasheet | ACZ16 | Box | Active | Not Verified | Incremental | Quadrature (Incremental) | 24 | 5V | 6mm Dia Flatted End | Yes | Yes | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
GP3A233RBK0FROTARY ENCODER OPTICAL |
4,504 |
|
Datasheet | - | Tray | Obsolete | Not Verified | Optical | Quadrature (Incremental) | - | 6V | Codewheel Not Included | No | No | - | - | - | - | - | - |
|
EN11-VSM3BF15ROTARY ENCODER MECHANICAL 15PPR |
1,410 |
|
Datasheet | EN11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|
|
EN11-VSM3BF25ROTARY ENCODER MECHANICAL 15PPR |
4,540 |
|
Datasheet | EN11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | 5V | 6mm Dia Flatted End | Yes | Yes | PCB, Through Hole | Right Angle | PC Pin | 30K | - | - |
|

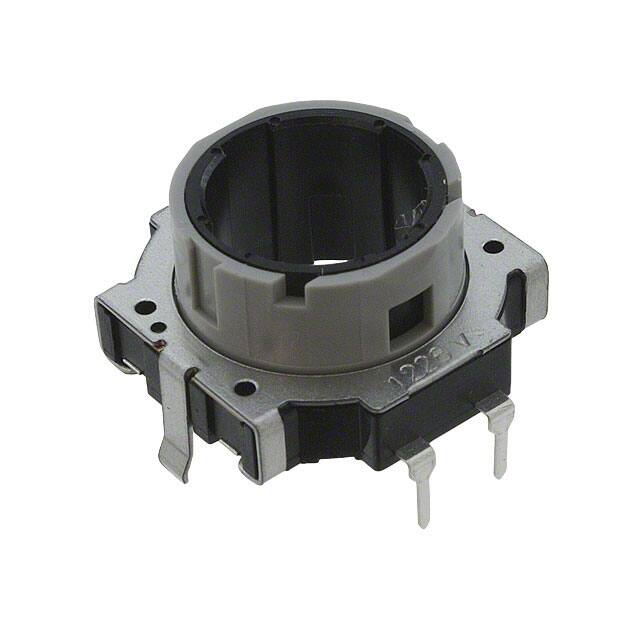

EVQ-V6A00609BROTARY ENCODER MECHANICAL 9PPR |
1,469 |
|
Datasheet | - | Bulk | Not For New Designs | Not Verified | Mechanical | Quadrature (Incremental) | 9 | - | 20mm Open Center | Yes | No | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
EVQ-V5J00509BROTARY ENCODER |
4,727 |
|
- |
EVQV | Bulk | Not For New Designs | - | Mechanical | Quadrature (Incremental) | 9 | 10V | 27mm Open Center | Yes | Yes | PCB, Through Hole | Vertical | PC Pin | 30K | - | - |
|
|
PEC11L-4015F-N0015ROTARY ENCODER MECHANICAL 15PPR |
2,226 |
|
Datasheet | PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC11L-4015F-N0020ROTARY ENCODER MECHANICAL 20PPR |
3,952 |
|
Datasheet | PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Flatted End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC11L-4025K-N0015ROTARY ENCODER MECHANICAL 15PPR |
4,082 |
|
Datasheet | PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Knurled End | No | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC11L-4120K-N0020ROTARY ENCODER MECHANICAL 20PPR |
3,554 |
|
Datasheet | PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 20 | - | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
|
|
PEC11L-4225K-N0015ROTARY ENCODER MECHANICAL 15PPR |
4,526 |
|
Datasheet | PEC11 | Tray | Active | Not Verified | Mechanical | Quadrature (Incremental) | 15 | - | 6mm Dia Knurled End | Yes | No | Panel, PCB Through Hole | Vertical | PC Pin | 100K | - | - |
