DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
EDS06SGRSTU04QSWITCH SLIDE DIP SPST 0.025A 24V |
4,570 |
|
Datasheet | EDS | Tube | Active | SPST | 6 | 25mA | 24VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.134" (3.40mm) | Surface Mount | Gull Wing | 0.100" (2.54mm), Full | Yes | - | -20°C ~ 85°C |
|
3-435640-6SWITCH ROCKER DIP SPST 0.06A 5V |
1,402 |
|
Datasheet | 7100 | Bulk | Obsolete | SPST | 5 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
|
5435640-2SWITCH ROCKER DIP SPST 0.06A 5V |
5,338 |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 4 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
5-435626-2SWITCH ROCKER DIP SPST |
4,301 |
|
Datasheet | 7000 | Bulk | Obsolete | SPST | 5 | - | - | Rocker | Flush, Recessed | - | - | - | Through Hole | - | - | No | - | - |
|
5435640-1SWITCH ROCKER DIP SPST 0.06A 5V |
4,695 |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 7 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
5435640-3SWITCH ROCKER DIP SPST 0.06A 5V |
4,286 |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 5 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
5435802-3SWITCH PIANO DIP SPST 0.025A 24V |
3,842 |
|
Datasheet | 7000 | Tube | Obsolete | SPST | 4 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.290" (7.37mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|
ADP08SWITCH PIANO DIP SPST 0.025A 24V |
3,595 |
|
- |
ADP | Bulk | Obsolete | SPST | 8 | 25mA | 24VDC | Piano | Raised | Copper Alloy | Gold | 0.294" (7.47mm) | Through Hole, Right Angle | PC Pin | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
5435640-4SWITCH ROCKER DIP SPST 0.06A 5V |
3,299 |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 6 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
|

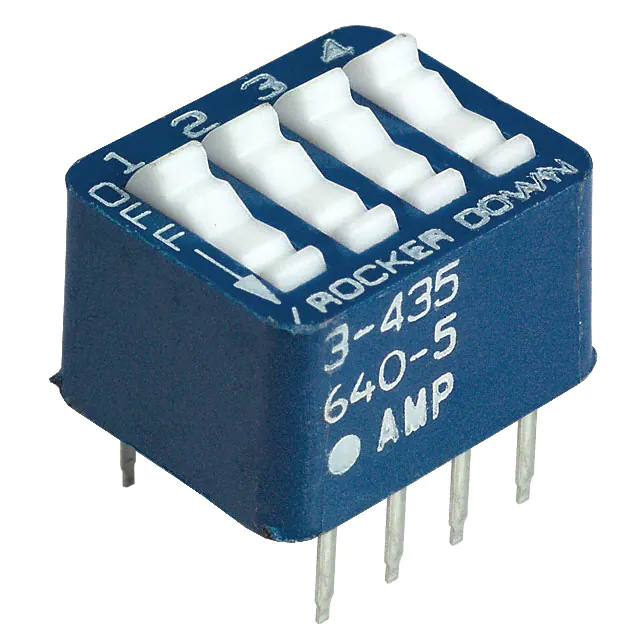

3-5435640-5SWITCH ROCKER DIP SPST 0.06A 5V |
2,408 |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 4 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | Yes | Sealed | -55°C ~ 105°C |
