DIP Switches
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Circuit | Number of Positions | Current Rating (Amps) | Voltage Rating | Actuator Type | Actuator Level | Contact Material | Contact Finish | Height Above Board | Mounting Type | Termination Style | Pitch | Washable | Features | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1825059-3SWITCH STANDARD DIP SPST |
3,204 |
|
Datasheet | ADF | Bulk | Active | SPST | 2 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
1-1825002-0SWITCH STANDARD DIP SPST |
3,716 |
|
Datasheet | ADF | Bulk | Active | SPST | 6 | - | - | Standard | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
1825190-9SWITCH SHUNT DIP PROGRAMMABLE |
3,970 |
|
Datasheet | 7600 | Tube | Obsolete | Programmable | 10 | - | - | Breakable (Shunt) | Flush, Recessed | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
3-1825059-1SWITCH STANDARD DIP SPST |
3,703 |
|
Datasheet | ADF | Tape & Reel (TR) | Active | SPST | 7 | - | - | Standard | Flush, Recessed | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
4-1571999-4SWITCH PIANO DIP SPST |
1,606 |
|
Datasheet | ADPA | Tube | Active | SPST | 4 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
4-1571999-5SWITCH PIANO DIP SPST |
1,778 |
|
Datasheet | ADPA | Tube | Active | SPST | 4 | - | - | Piano | Raised | - | - | - | Surface Mount | - | - | Yes | - | - |
|
|
ADF04SATR09400SWITCH SLIDE DIP SPST 0.025A 5V |
2,246 |
|
Datasheet | ADF | Tape & Reel (TR) | Active | SPST | 4 | 25mA | 5VDC | Slide (Standard) | Flush, Recessed | Copper Alloy | Gold | 0.203" (5.15mm) | Surface Mount | J Lead | 0.100" (2.54mm), Full | Yes | - | -30°C ~ 85°C |
|
|
1825057-8SWITCH STANDARD DIP SPST 0.1A |
3,246 |
|
Datasheet | ADE | Tape & Reel (TR) | Active | SPST | 9 | 100mA | - | Standard | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|
|
4-1571999-1SWITCH PIANO DIP SPST |
3,725 |
|
Datasheet | ADPA | Tube | Active | SPST | 2 | - | - | Piano | Raised | - | - | - | Through Hole | - | - | Yes | - | - |
|

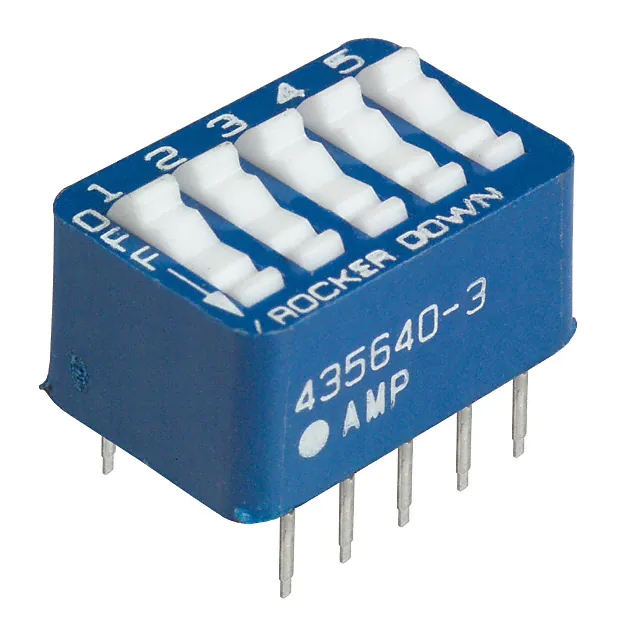

435640-3SWITCH ROCKER DIP SPST 0.06A 5V |
4,149 |
|
Datasheet | 7100 | Tube | Obsolete | SPST | 5 | 60mA | 5VDC | Rocker | Raised | Copper Alloy | Gold | 0.340" (8.64mm) | Through Hole | PC Pin | 0.100" (2.54mm), Full | No | - | -55°C ~ 105°C |
