DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VHK50W-Q48-S15DC/DC CONVERTER 15V 50W |
2,768 |
|
Datasheet | VHK50W (50W) | Box | Active | Enclosed | 18V | 75V | 1 | 15V | - | - | - | 3.33A | 50W | - | - | 83% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|

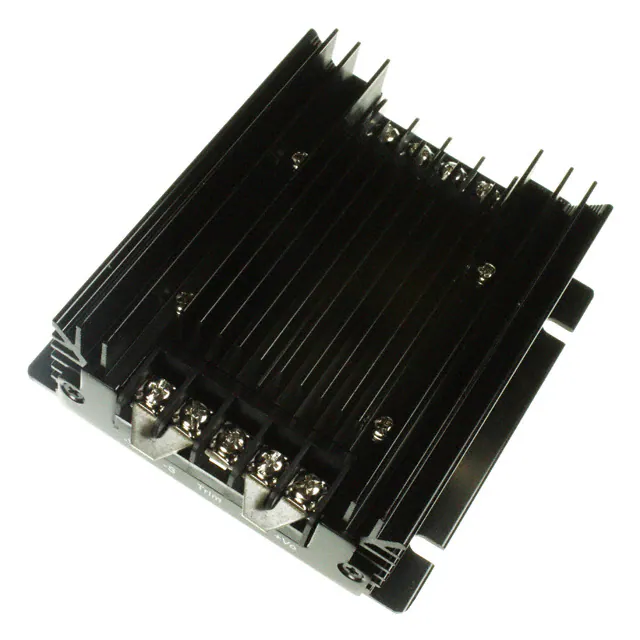

VHK50W-Q24-S28DC/DC CONVERTER 28V 50W |
4,400 |
|
Datasheet | VHK50W (50W) | Box | Active | Enclosed | 9V | 36V | 1 | 28V | - | - | - | 1.78A | 50W | - | - | 82% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.4mm x 101.9mm x 38.1mm) | - | - |
|

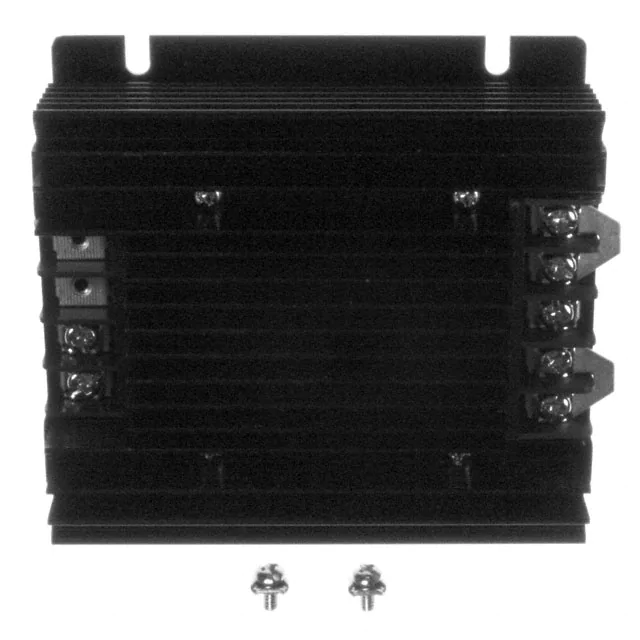

VHK50W-Q48-S28DC/DC CONVERTER 28V 50W |
4,696 |
|
Datasheet | VHK50W (50W) | Box | Active | Enclosed | 18V | 75V | 1 | 28V | - | - | - | 1.78A | 50W | - | - | 83% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.4mm x 101.9mm x 38.1mm) | - | - |
|
VDZ200-D24-S28DC/DC CONVERTER 28V 200W |
3,080 |
|
Datasheet | VDZ200 (125W) | - | Obsolete | Enclosed | 18V | 36V | 1 | 28V | - | - | - | 4.46A | 200W | - | - | 88% | -25°C ~ 85°C | Chassis Mount | 3.94" L x 2.56" W x 0.63" H (100.0mm x 65.0mm x 16.0mm) | - | - |
|
VHK100W-Q24-S3R3DC/DC CONVERTER 3.3V 100W |
4,164 |
|
Datasheet | VHK100W (100W) | Box | Active | Enclosed | 9V | 36V | 1 | 3.3V | - | - | - | 20A | 100W | - | - | 80% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|
VHK100W-Q48-S3R3DC/DC CONVERTER 3.3V 100W |
4,681 |
|
Datasheet | VHK100W (100W) | Box | Active | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 20A | 100W | - | - | 79% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
|
VHK75W-Q48-S5DC/DC CONVERTER 5V 75W |
3,731 |
|
Datasheet | VHK75W (75W) | Box | Active | Enclosed | 18V | 75V | 1 | 5V | - | - | - | 15A | 75W | - | - | 81% | -40°C ~ 85°C | Chassis Mount | 4.25" L x 4.00" W x 1.50" H (108.0mm x 101.6mm x 38.1mm) | - | - |
|
|
VHK75W-Q48-S3R3DC/DC CONVERTER 3.3V 75W |
3,614 |
|
Datasheet | VHK75W (75W) | Box | Active | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 15A | 75W | - | - | 78% | -40°C ~ 85°C | Chassis Mount | 4.25" L x 4.00" W x 1.50" H (108.0mm x 101.6mm x 38.1mm) | CE | - |
|
VHK100W-Q48-S28DC/DC CONVERTER 28V 100W |
4,444 |
|
Datasheet | VHK100W (100W) | Box | Active | Enclosed | 18V | 75V | 1 | 28V | - | - | - | 3.57A | 100W | - | - | 86% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.4mm x 101.9mm x 38.1mm) | - | - |
|
|
VHK75W-Q24-S15DC/DC CONVERTER 15V 75W |
1,905 |
|
Datasheet | VHK75W (75W) | Box | Active | Enclosed | 9V | 36V | 1 | 15V | - | - | - | 5A | 75W | - | - | 82.5% | -40°C ~ 85°C | Chassis Mount | 4.25" L x 4.00" W x 1.50" H (108.0mm x 101.6mm x 38.1mm) | - | - |
