DC DC Converters
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Voltage - Input (Min) | Voltage - Input (Max) | Number of Outputs | Voltage - Output 1 | Voltage - Output 2 | Voltage - Output 3 | Voltage - Output 4 | Current - Output (Max) | Power (Watts) | Voltage - Isolation | Applications | Efficiency | Operating Temperature | Mounting Type | Size / Dimension | Approval Agency | Standard Number |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
VCD30-D24-D5-TDC/DC CONVERTER 30W |
3,993 |
|
Datasheet | VCD30-T (30W) | Box | Obsolete | Enclosed | - | - | 2 | - | - | - | - | - | 30W | - | - | 79% | -25°C ~ 71°C | Chassis Mount | 2.00" L x 2.00" W x 0.40" H (50.8mm x 50.8mm x 10.2mm) | - | - |
|
AE40-EW-S15-TDC/DC CONVERTER 15V 40W |
2,201 |
|
Datasheet | AE40-EW-T (40W) | Tray | Obsolete | Enclosed | 200V | 1200V | 1 | 15V | - | - | - | 2.67A | 40W | 4 kV | - | 84% | -25°C ~ 70°C (With Derating) | Chassis Mount | 5.32" L x 2.76" W x 1.32" H (135.0mm x 70.0mm x 33.5mm) | - | - |
|

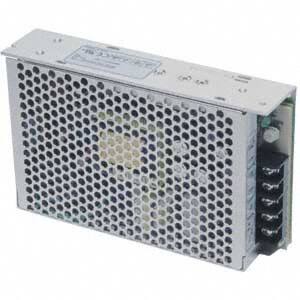

VSD-50A-24DC/DC CONVERTER 24V 50W |
2,024 |
|
Datasheet | VSD-50 (50W) | - | Obsolete | Enclosed | 9.2V | 18V | 1 | 24V | - | - | - | 2.1A | 50W | - | - | 76% | -10°C ~ 60°C | Chassis Mount | 6.26" L x 3.82" W x 1.50" H (159.0mm x 97.0mm x 38.0mm) | - | - |
|
PQA50-D24-S5-TDC/DC CONVERTER 5V 50W |
1,548 |
|
Datasheet | PQA50-T (50W) | Tray | Obsolete | Enclosed | 18V | 36V | 1 | 5V | - | - | - | 10A | 50W | 1.5 kV | - | 91% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | - | - |
|
|
PQA50-D48-S5-TDC/DC CONVERTER 5V 50W |
3,686 |
|
Datasheet | PQA50-T (50W) | Tray | Obsolete | Enclosed | 36V | 75V | 1 | 5V | - | - | - | 10A | 50W | 1.5 kV | - | 91% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | - | - |
|
|
PQA50-D48-S24-TDC/DC CONVERTER 24V 50W |
4,784 |
|
Datasheet | PQA50-T (50W) | Tray | Obsolete | Enclosed | 36V | 75V | 1 | 24V | - | - | - | 2.08A | 50W | 1.5 kV | - | 91% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | - | - |
|
|
PQA50-D24-S3-TDC/DC CONVERTER 3.3V 50W |
3,864 |
|
Datasheet | PQA50-T (50W) | Tray | Obsolete | Enclosed | 18V | 36V | 1 | 3.3V | - | - | - | 10A | 50W | 1.5 kV | - | 89% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | - | - |
|
|
PQA50-D48-S12-TDC/DC CONVERTER 12V 50W |
3,127 |
|
Datasheet | PQA50-T (50W) | Tray | Obsolete | Enclosed | 36V | 75V | 1 | 12V | - | - | - | 4.17A | 50W | 1.5 kV | - | 91% | -40°C ~ 85°C | Chassis Mount | 2.99" L x 1.24" W x 0.84" H (76.0mm x 31.5mm x 21.2mm) | CB Scheme, IEC | 60950-1 |
|
|
AE40-EW-S24-TDC/DC CONVERTER 24V 40W |
2,564 |
|
Datasheet | AE40-EW-T (40W) | Tray | Obsolete | Enclosed | 200V | 1200V | 1 | 24V | - | - | - | 1.67A | 40W | 4 kV | - | 84% | -25°C ~ 70°C (With Derating) | Chassis Mount | 5.32" L x 2.76" W x 1.32" H (135.0mm x 70.0mm x 33.5mm) | - | - |
|
VHK50W-Q48-S3R3DC/DC CONVERTER 3.3V 50W |
4,147 |
|
Datasheet | VHK50W (50W) | Box | Active | Enclosed | 18V | 75V | 1 | 3.3V | - | - | - | 10A | 50W | - | - | 76% | -40°C ~ 85°C | Chassis Mount | 4.23" L x 4.01" W x 1.50" H (107.5mm x 101.8mm x 38.0mm) | - | - |
