Process, Temperature
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Input Range | Output Type | Control Method | Communications | Number of Characters Per Row | Display Type | Display Characters - Height | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E5AN-Q3MT-500-N AC100-240CONTROL TEMP 100-240V PANEL MT |
2,386 |
|
Datasheet | E5AN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (3), Voltage (External SSR) | On/Off, Proportional (PID) | Option Cards Available | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.622" (15.80mm), 0.374" (9.50mm), 0.268" (6.80mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
|
E5CN-Q2MTD-500 AC/DC24CONTROL TEMP RELAY/VOLT OUT 24V |
1,275 |
|
Datasheet | E5CN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (2), Voltage (External SSR) | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Dual Color Characters | 0.433" (11.00mm), 0.256" (6.50mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
|
E5CN-R2MTD-500 AC/DC24CONTROL TEMP RELAY OUT 24V |
2,218 |
|
Datasheet | E5CN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (3) | On/Off, Proportional (PID) | Option Cards Available | 4, 4 | LED - Dual Color Characters | 0.433" (11.00mm), 0.256" (6.50mm) | 24VAC/DC | Square - 45.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
|
E5AN-Q3MTD-500-N AC/DC24CONTROL TEMP RELAY/VOLT OUT 24V |
2,268 |
|
Datasheet | E5AN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (3), Voltage (External SSR) | On/Off, Proportional (PID) | Option Cards Available | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.622" (15.80mm), 0.374" (9.50mm), 0.268" (6.80mm) | 24VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
|
E5AN-R3MT-500-N AC100-240CONTROL TEMP RELAY OUT 100-240V |
3,683 |
|
Datasheet | E5AN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (4) | On/Off, Proportional (PID) | Option Cards Available | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.622" (15.80mm), 0.374" (9.50mm), 0.268" (6.80mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
|

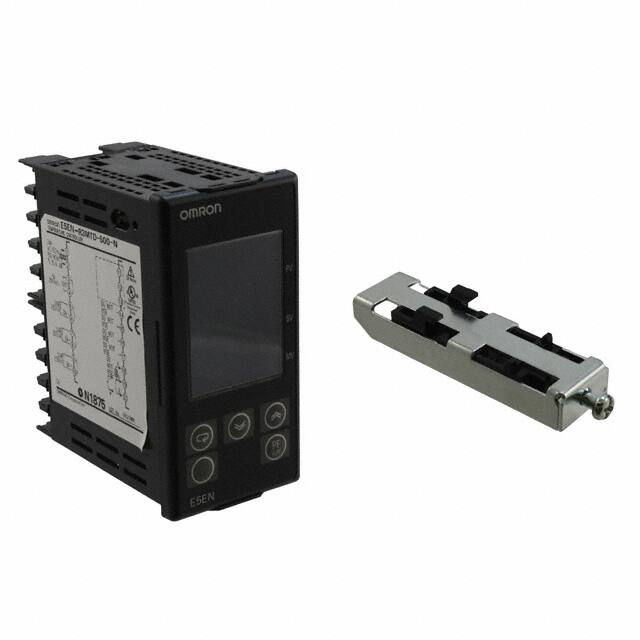

E5EN-R3MTD-500-N AC/DC24CONTROL TEMP RELAY OUT 24V |
2,612 |
|
Datasheet | E5EN | Box | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, W) | -200°C ~ 2300°C, 0 ~ 50mV | Relay (4) | On/Off, Proportional (PID) | Option Cards Available | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.465" (11.80mm), 0.319" (8.10mm), 0.228" (5.80mm) | 24VAC/DC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
|
E5AN-C3ML-500-N AC100-240CONTROL PROC 100-240V PANEL MT |
1,013 |
|
Datasheet | E5AN | Bulk | Obsolete | Process Controller | 0 ~ 20mA, 0 ~ 10VDC | Analog, Relay (3) | On/Off, Proportional (PID) | Option Cards Available | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.622" (15.80mm), 0.374" (9.50mm), 0.268" (6.80mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
|
|
E5AN-C3MT-W-500-N AC100-240CONTROL TEMP 100-240V PANEL MT |
4,228 |
|
Datasheet | E5AN | Bulk | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, W) | -200°C ~ 2300°C, 0 ~ 50mV | Analog, Relay (3) | On/Off, Proportional (PID) | Option Cards Available | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.622" (15.80mm), 0.374" (9.50mm), 0.268" (6.80mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
|
|
E5AN-C3MTD-W-500-N AC/DC24CONTROL TEMP ANALOG/REL OUT 24V |
1,104 |
|
Datasheet | E5AN | Bulk | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, W) | -200°C ~ 2300°C, 0 ~ 50mV | Analog, Relay (3) | On/Off, Proportional (PID) | Option Cards Available | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.622" (15.80mm), 0.374" (9.50mm), 0.268" (6.80mm) | 24VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
|
|
E5AN-C3QMT-500-N AC100-240CONTROL TEMP 100-240V PANEL MT |
3,833 |
|
Datasheet | E5AN | Bulk | Obsolete | Temperature Controller (RTD, Type B, E, J, K, L, N, PLII, R, S, T, W) | -200°C ~ 2300°C, 0 ~ 50mV | Analog, Relay (3), Voltage (External SSR) | On/Off, Proportional (PID) | Option Cards Available | 4, 4, 4 | LCD - Tri Color Characters, Backlight | 0.622" (15.80mm), 0.374" (9.50mm), 0.268" (6.80mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Option Cards Available |
