Process, Temperature
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Type | Input Range | Output Type | Control Method | Communications | Number of Characters Per Row | Display Type | Display Characters - Height | Voltage - Supply | Panel Cutout Dimensions | Mounting Type | Termination Style | Ingress Protection | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
E5AR-PRQ43DF-FLK AC/DC24CONTROL TEMP/PROC 24V PANEL MT |
2,860 |
|
- |
E5AR | Bulk | Obsolete | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (6), Voltage (External SSR) (2) | On/Off, Proportional (PID) | RS-485 (CompoWay/F) | 5, 5, 4 | LCD - Tri Color Characters, Backlight | 0.504" (12.80mm), 0.303" (7.70mm), 0.303" (7.70mm) | 24VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|

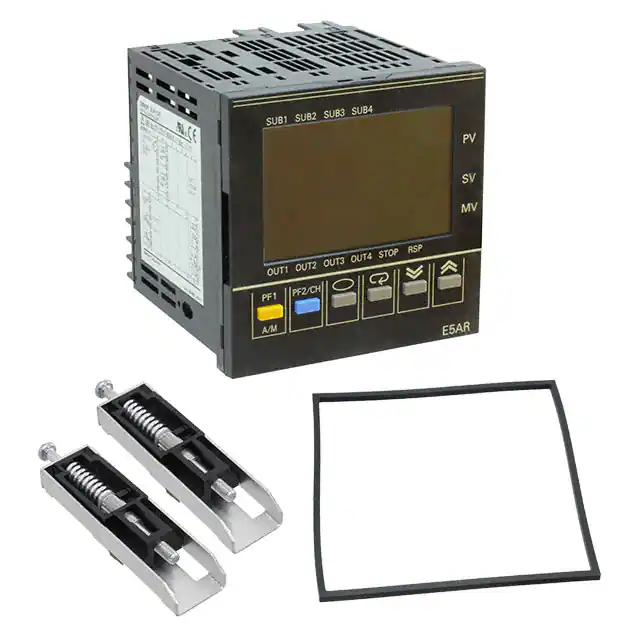

E5AR-QQ43DW-FLK AC100-240CONTROL TEMP/PROC RELAY/VOLT OUT |
1,177 |
|
- |
E5AR | Bulk | Obsolete | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (4), Voltage (External SSR) (4) | On/Off, Proportional (PID) | RS-485 (CompoWay/F) | 5, 5, 4 | LCD - Tri Color Characters, Backlight | 0.504" (12.80mm), 0.303" (7.70mm), 0.303" (7.70mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|
|
E5AR-QQ43DW-FLK AC/24CONTROL TEMP/PROC 24V PANEL MT |
4,766 |
|
- |
E5AR | Bulk | Obsolete | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Relay (4), Voltage (External SSR) (4) | On/Off, Proportional (PID) | RS-485 (CompoWay/F) | 5, 5, 4 | LCD - Tri Color Characters, Backlight | 0.504" (12.80mm), 0.303" (7.70mm), 0.303" (7.70mm) | 24VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|
E5ER-CTB-DRT AC100-240VCONTROL TEMP/PROCESS 100-240V |
4,362 |
|
- |
E5ER | Bulk | Obsolete | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog (2), Solid State (2) | On/Off, Proportional (PID) | DeviceNet | 5, 5, 3 | LCD - Tri Color Characters, Backlight | 0.374" (9.50mm), 0.283" (7.20mm), 0.283" (7.20mm) | 100 ~ 240VAC | Rectangular - 92.00mm x 45.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|
|
E5ZE-8AAAMPB-ECONTROL TEMP OUT 24V CHASSIS MT |
4,784 |
|
Datasheet | E5ZE | Bulk | Obsolete | Temperature Controller (RTD) | -100°C ~ 500°C | Option Cards Available | On/Off, Proportional (PID) | Option Cards Available | - | - | - | 24VDC | - | Chassis Mount | Screw Terminal | IP00 | Option Cards Available |
|
|
E5AR-TQQE3MW-FLK AC100-240CONTROL TEMP/PROCESS 100-240V |
2,297 |
|
- |
E5AR-T | Bulk | Obsolete | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Solid State (10), Voltage (External SSR) (4) | On/Off, Proportional (PID) | RS-485 (CompoWay/F) | 5, 5, 4 | LCD - Tri Color Characters, Backlight | 0.504" (12.80mm), 0.303" (7.70mm), 0.303" (7.70mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5ZE-8AAAMTCB-ECONTROL TEMP OUT 24V CHASSIS MT |
4,825 |
|
Datasheet | E5ZE | Bulk | Obsolete | Temperature Controller (Type B, E, J, K, L, N, PLII, R, S, T, U, W) | -200°C ~ 2300°C | Option Cards Available | On/Off, Proportional (PID) | Option Cards Available | - | - | - | 24VDC | - | Chassis Mount | Screw Terminal | IP00 | Option Cards Available |
|
|
E5AR-CC43DWW-FLK AC/DC24CONTROL TEMP/PROC 24V PANEL MT |
2,465 |
|
- |
E5AR | Bulk | Obsolete | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog (4), Relay (4) | On/Off, Proportional (PID) | RS-485 (CompoWay/F) | 5, 5, 4 | LCD - Tri Color Characters, Backlight | 0.504" (12.80mm), 0.303" (7.70mm), 0.303" (7.70mm) | 24VAC/DC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | Event Input |
|
|
E5AR-CC4WW-DRT AC100-240VCONTROL TEMP/PROCESS 100-240V |
3,438 |
|
- |
E5AR | Bulk | Obsolete | Process, Temperature Controller (RTD, Type B, E, J, K, L, N, R, S, T, U, W) | -200°C ~ 2300°C, 0 ~ 20mA, 0 ~ 10VDC | Analog (4), Relay (4) | On/Off, Proportional (PID) | DeviceNet | 5, 5, 4 | LCD - Tri Color Characters, Backlight | 0.504" (12.80mm), 0.303" (7.70mm), 0.303" (7.70mm) | 100 ~ 240VAC | Square - 92.00mm x 92.00mm | Panel Mount | Screw Terminal | IP66 - Dust Tight, Water Resistant | - |
|
|
E5ZE-8AQHD1PB-V2 DC24CONTROL TEMP SS/VOLT OUT 24V |
3,838 |
|
Datasheet | E5ZE | Bulk | Obsolete | Temperature Controller (RTD) | -100°C ~ 500°C | Solid State (3), Voltage (External SSR) | On/Off, Proportional (PID) | DeviceNet | - | - | - | 24VDC | - | Chassis Mount | Screw Terminal | IP00 | Heater Fault Detection, Sensor Fault Detection |
