Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DKIP-0233-3005CMC 30A 2LN TH |
3,815 |
|
Datasheet | Nonstandard | - | 2 | - | - | 30A | 12.5mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|
DKIP-0233-4003CMC 40A 2LN TH |
4,949 |
|
Datasheet | Nonstandard | - | 2 | - | - | 40A | 6mOhm | 760V | 540V | -25°C ~ 100°C | - | UR | - | - | - |
|

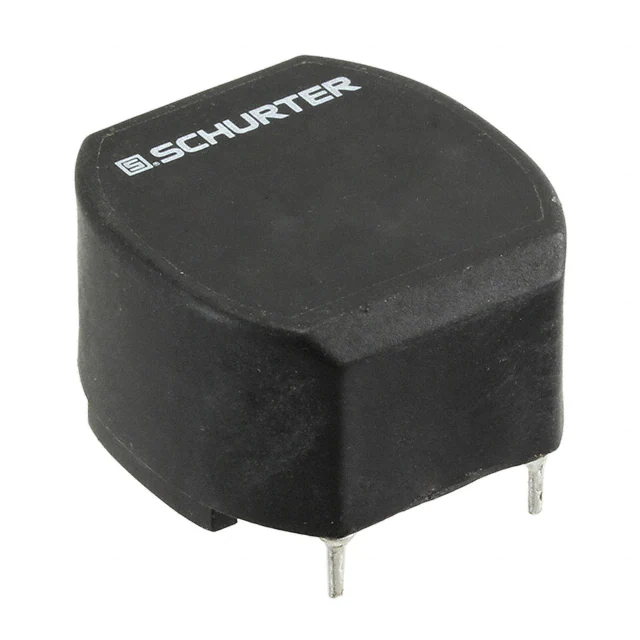

DFKF-28-0001CMC 600MA 2LN TH |
1,998 |
|
Datasheet | Radial - 4 Leads | - | 2 | - | - | 600mA | 1Ohm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
DS1-175-0003CMC 1A 2LN TH |
100 |
|
Datasheet | Radial | - | 2 | - | - | 1A | 180mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|

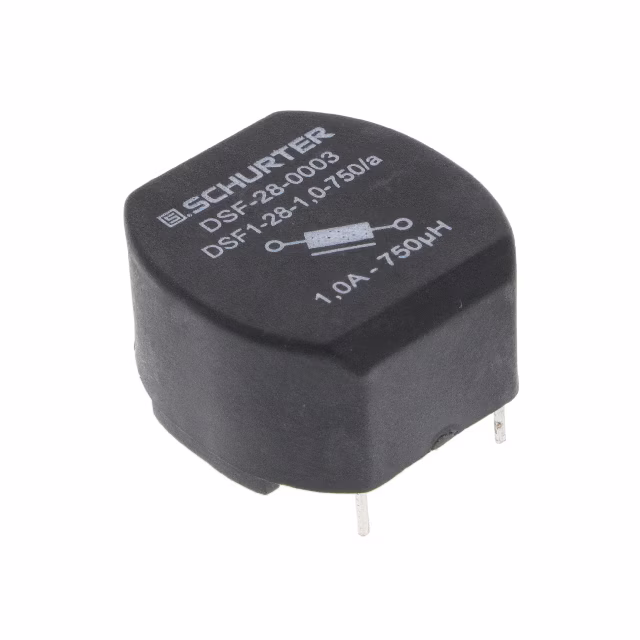

DSF-28-0003CMC 1A 2LN TH |
3,905 |
|
Datasheet | Nonstandard | - | 2 | - | - | 1A | 360mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DSF-28-0001CMC 450MA 2LN TH |
3,734 |
|
Datasheet | Nonstandard | - | 2 | - | - | 450mA | 1.9Ohm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DSF-28-0007CMC 4.5A 2LN TH |
1,636 |
|
Datasheet | Nonstandard | - | 2 | - | - | 4.5A | 10mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
DSF-28-0008CMC 4.5A 2LN TH |
3,977 |
|
Datasheet | Nonstandard | - | 2 | - | - | 4.5A | 10mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|

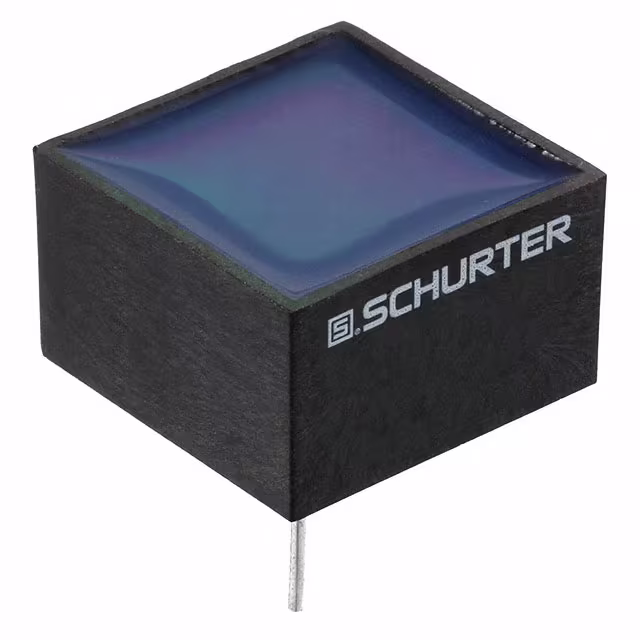

DS1-25-0003CMC 3.15A 2LN TH |
2,188 |
|
Datasheet | Radial | - | 2 | - | - | 3.15A | 40mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
DS1-25-0002CMC 2A 2LN TH |
4,967 |
|
Datasheet | Radial | - | 2 | - | - | 2A | 100mOhm | 600V | - | -40°C ~ 125°C | - | - | - | - | - |
