Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DFKF-18-0006CMC 4A 2LN TH |
1,426 |
|
Datasheet | Radial - 4 Leads | - | 2 | - | - | 4A | 16mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
DFKH-22-0005CMC 6.3A 2LN TH |
100 |
|
Datasheet | Radial - 4 Leads | - | 2 | - | - | 6.3A | 15mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
DFKF-28-0006CMC 6.3A 2LN TH |
2,691 |
|
Datasheet | Radial - 4 Leads | - | 2 | - | - | 6.3A | 13mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
|
DFKF-28-0005CMC 4A 2LN TH |
2,536 |
|
Datasheet | Radial - 4 Leads | - | 2 | - | - | 4A | 28mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|

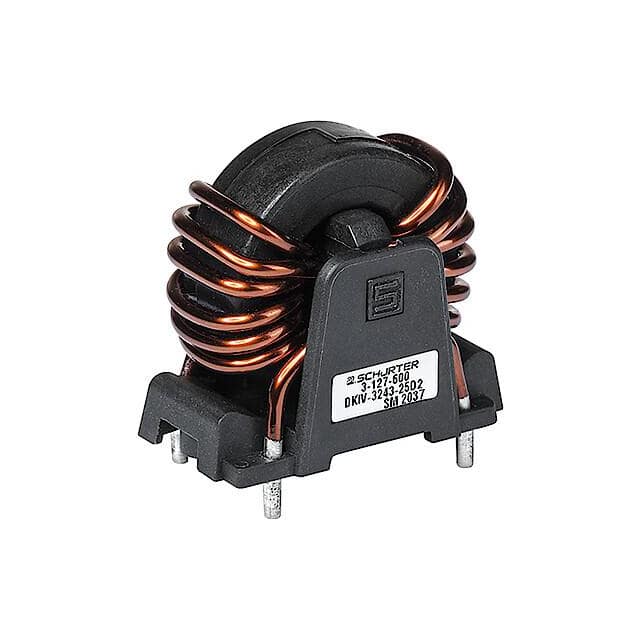

DKIV-1-3253-403M-NKCMC 40A 2LN TH |
3,592 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 40A | 1.7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
|
DKIV-1-3253-40D5CMC 40A 2LN TH |
2,065 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 40A | 1.7mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
|
DKIV-1-3253-504J-NKCMC 50A 2LN TH |
1,610 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | - | 50A | 0.5mOhm | 450V | 300/250V | -40°C ~ 100°C | - | CSA, IEC, UL | - | - | - |
|
DLFL-0125-0501CMC 5A 2LN TH |
3,840 |
|
Datasheet | Radial | - | 2 | - | - | 5A | 120mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
|
DKIH-3242-160Q-NKCMC 16A 2LN TH |
1,634 |
|
Datasheet | Horizontal, 4 PC Pin | - | 2 | - | - | 16A | 5.6mOhm | - | - | -40°C ~ 100°C | - | ENEC, UR | - | - | - |
|
DLFL-0147-16D3CMC 16A 2LN TH |
4,211 |
|
Datasheet | Radial | - | 2 | - | - | 16A | 25mOhm | - | 440V | -25°C ~ 100°C | - | - | - | - | - |
