Common Mode Chokes
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Filter Type | Number of Lines | Impedance @ Frequency | Current Rating (Max) | DC Resistance (DCR) (Max) | Voltage Rating - DC | Voltage Rating - AC | Operating Temperature | Ratings | Approval Agency | Features | Mounting Type | Size / Dimension | Height (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ACMP-4724-900-TCMC 3.2A 2LN 90 OHM SMD |
3,962 |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 90 Ohms @ 100 MHz | - | 3.2A | 35mOhm | 50V | - | -40°C ~ 125°C | - | - | - | - | - |
|
|
ACMP-7038-700-TCMC 15A 2LN 70 OHM SMD |
266 |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 70 Ohms @ 100 MHz | - | 15A | 5mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|

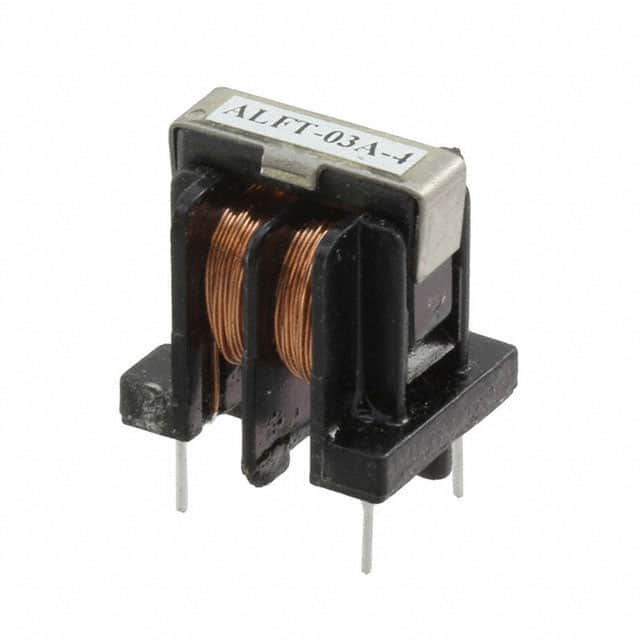

ALFT-03A-8CMC 5.5MH 1A 2LN TH |
129 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 5.5 mH @ 1 kHz | 1A | 750mOhm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ACMP-1264-231-TCMC 10A 2LN 230 OHM SMD |
4,528 |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 230 Ohms @ 100 MHz | - | 10A | 4mOhm | 125V | - | -40°C ~ 125°C | - | - | - | - | - |
|
ACMP-Q9050-102-TCMC 5A 2LN 1K OHM SMD AEC-Q200 |
7,869 |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 5A | 10mOhm | 80V | - | -40°C ~ 125°C | AEC-Q200 | - | - | - | - |
|
|
ALFT-03A-13CMC 1MH 2.2A 2LN TH |
310 |
|
Datasheet | Vertical, 4 PC Pin | Power Line | 2 | - | 1 mH @ 1 kHz | 2.2A | 400mOhm | 250V | - | -25°C ~ 85°C | - | - | - | - | - |
|
|
ACMP-1566-102-TCMC 9A 2LN 1K OHM SMD |
1,556 |
|
Datasheet | Horizontal, 4 PC Pad | Power Line | 2 | 1 kOhms @ 100 MHz | - | 9A | 10mOhm | 80V | - | -40°C ~ 125°C | - | - | - | - | - |
|
ACM-21H-121-TCMC 280MA 2LN 120 OHM SMD |
1,902 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 120 Ohms @ 100 MHz | - | 280mA | 400mOhm | 20V | - | -40°C ~ 85°C | - | - | - | - | - |
|
|
ACM-21-670M-TCMC 400MA 2LN 67 OHM SMD |
2,000 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 67 Ohms @ 100 MHz | - | 400mA | 250mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
|
ACM-31-900M-TCMC 370MA 2LN 90 OHM SMD |
1,400 |
|
Datasheet | Horizontal, 4 PC Pad | Signal Line | 2 | 90 Ohms @ 100 MHz | - | 370mA | 300mOhm | 50V | - | -40°C ~ 85°C | - | - | - | - | - |
