Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1064538-1COAX CBL SSMT TO CABLE |
443 |
|
Datasheet | - | Bag | Active | SSMT to Cable | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 7.874" (200.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|
2032440-1COAX CBL U.FL TO SMA |
6,865 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
1064524-1COAX CBL SSMT TO SSMT |
1,559 |
|
Datasheet | - | Bag | Active | SSMT to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|
1064533-1COAX CBL SSMT TO SSMT |
108 |
|
Datasheet | - | Bag | Active | SSMT to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|

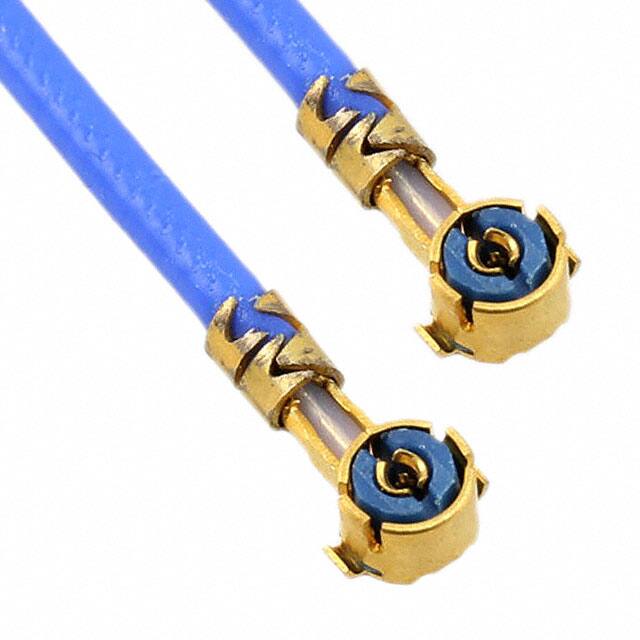

1064530-1COAX CBL SSMT TO SSMT |
1,225 |
|
Datasheet | - | Bag | Active | SSMT to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|
1064309-1COAX CBL OSMT TO OSMT |
1,975 |
|
Datasheet | - | Bag | Active | OSMT to OSMT | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | - | - | 50 Ohms | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 105°C | - | - |
|
2408023-1COAX CBL SMA TO PROBE |
1,674 |
|
Datasheet | Blind-Mate Coaxial | Bag | Active | SMA to Probe | SMA Jack | Female | Free Hanging (In-Line) | - | Probe, Right Angle | Male | Free Hanging (In-Line) | - | 11.930" (303.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 85°C | - | - |
|
2411069-2COAX CBL MHF4L TO CABLE |
5,265 |
|
Datasheet | - | Bag | Active | I-PEX MHF4L to Cable | I-PEX MHF4L Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C | - | - |
|
2411062-2COAX CBL U.FL MHF1 TO CBL |
2,628 |
|
Datasheet | UMCC | Bag | Active | U.FL (UMCC), I-PEX MHF1 to Cable | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C | - | - |
|
2148999-2COAX CBL U.FL MHF1 TO CBL |
5,464 |
|
Datasheet | UMCC | Bag | Active | U.FL (UMCC), I-PEX MHF1 to Cable | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | Female | - | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 9 GHz | Black | - | -40°C ~ 80°C | - | - |
