Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2032443-1COAX CBL U.FL TO MMCX |
3,014 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to MMCX | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 0.81mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
1064474-1COAX CBL OSMT TO CABLE |
3,973 |
|
Datasheet | - | Bag | Active | OSMT to Cable | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | Cable (Round) | - | - | - | 12.00" (304.80mm) | - | - | - | 50 Ohms | 6 GHz | - | Shielded | -55°C ~ 150°C | - | - |
|
|
1064552-1COAX CBL SMA TO SSMT |
4,632 |
|
Datasheet | - | Bulk | Active | SMA to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.30mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|

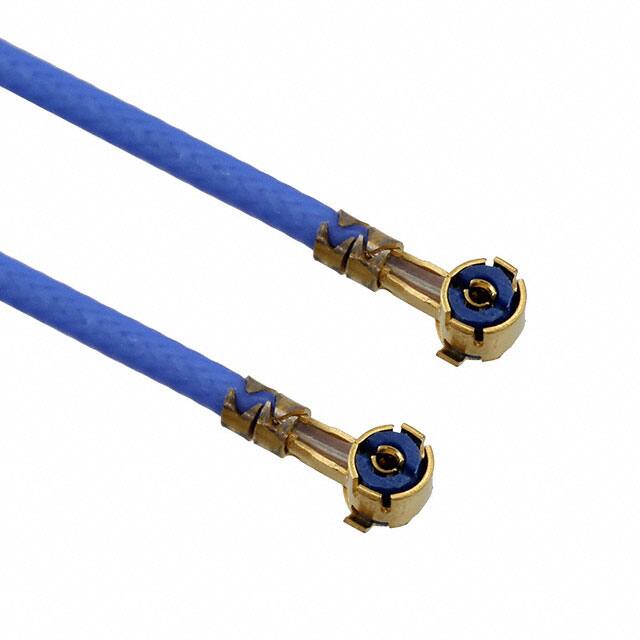

1084305-1COAX CBL SSMT TO SSMT |
2,672 |
|
Datasheet | - | Bag | Active | SSMT to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 3.543" (90.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|
|
2195633-3COAX CBL U.FL MHF1 TO U.FL MHF1 |
4,321 |
|
Datasheet | UMCC | Bag | Active | U.FL (UMCC), I-PEX MHF1 to U.FL (UMCC), I-PEX MHF1 | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), I-PEX MHF1 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.32mm OD Coaxial Cable | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
