Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1408483-1COAX CBL MMCX TO SSMT |
2,675 |
|
Datasheet | - | Bag | Active | MMCX to SSMT | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.30mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|
1064522-1COAX CBL SSMT TO SSMT |
3,442 |
|
Datasheet | - | Bag | Active | SSMT to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|

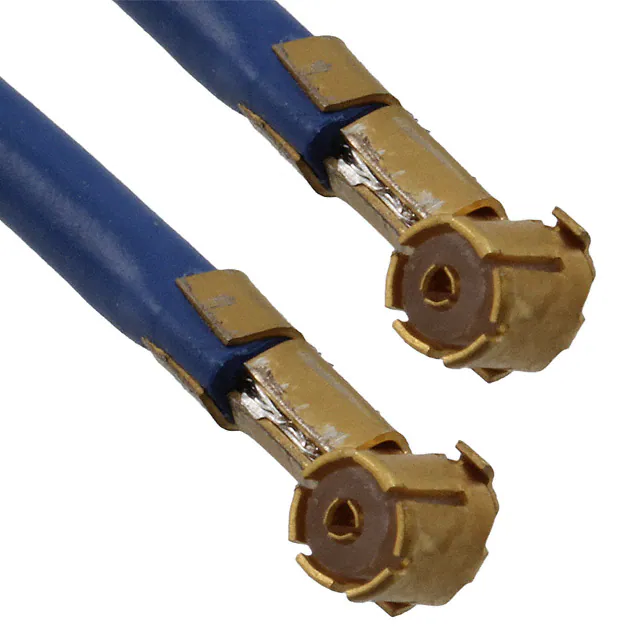

1064315-1COAX CBL OSMT TO OSMT |
4,510 |
|
Datasheet | - | Bag | Active | OSMT to OSMT | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 105°C | - | - |
|
|
2163694-1COAX CBL MCX TO MCX |
1,586 |
|
- |
- | Bulk | Active | MCX to MCX | MCX Plug, Right Angle | Male | - | - | MCX Plug, Right Angle | Male | - | - | 6.000" (152.40mm) | 0.086" Semi-Rigid Cable | 50 Ohms | - | 50 Ohms | - | - | - | - | - | - |
|
2032438-1COAX CBL U.FL TO FME |
2,173 |
|
Datasheet | - | Bag | Obsolete | U.FL (UMCC) to FME | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | FME Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
2032445-1COAX CBL U.FL TO RP-SMA |
4,682 |
|
Datasheet | - | Bag | Obsolete | U.FL (UMCC) to RP-SMA | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
1064465-1COAX CBL OSMT TO OSMT |
4,373 |
|
Datasheet | - | Bulk | Active | OSMT to OSMT | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | OSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 105°C | - | - |
|
|
1064559-1COAX CBL SMA TO SSMT |
2,348 |
|
Datasheet | - | Bulk | Active | SMA to SSMT | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.30mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|

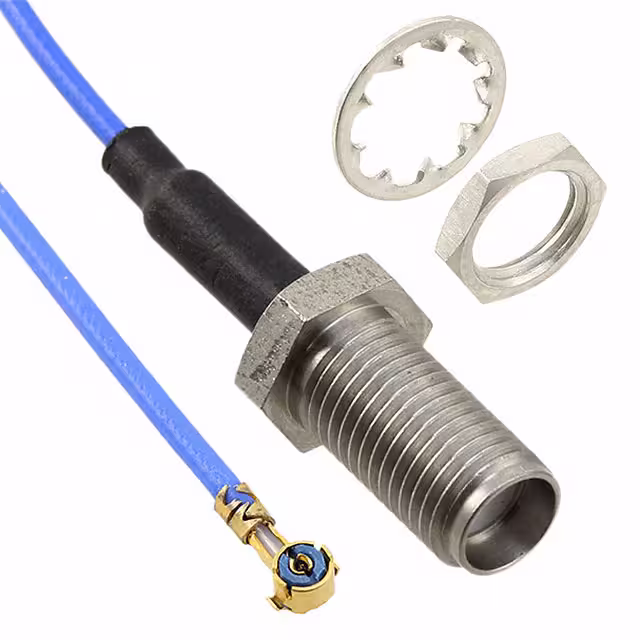

1064544-1COAX CBL SMA TO SSMT |
4,090 |
|
Datasheet | - | Bulk | Active | SMA to SSMT | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SSMT Jack, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | - | - | - | 50 Ohms | 6 GHz | Blue | Shielded | -40°C ~ 125°C | - | - |
|
|
5-1393667-0RF CABLES |
1,412 |
|
Datasheet | - | Bulk | Active | - | - | - | Free Hanging (In-Line) | - | - | - | Free Hanging (In-Line) | - | - | - | - | - | - | - | - | - | - | - | - |
