Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBA-TNCF-SMAMRCOAX CBL SMA TO TNC |
1,319 |
|
Datasheet | - | Bag | Active | SMA to TNC | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
CBA-NM-NM1COAX CBL N-TYPE TO N-TYPE |
4,454 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | 50 Ohms | - | Black | Shielded | - | - | - |
|
CBA-SMAM-SMAF30COAX CBL SMA TO SMA |
4,281 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-58 | 50 Ohms | - | 50 Ohms | 1 MHz | Black | - | -55°C ~ 125°C | - | - |
|

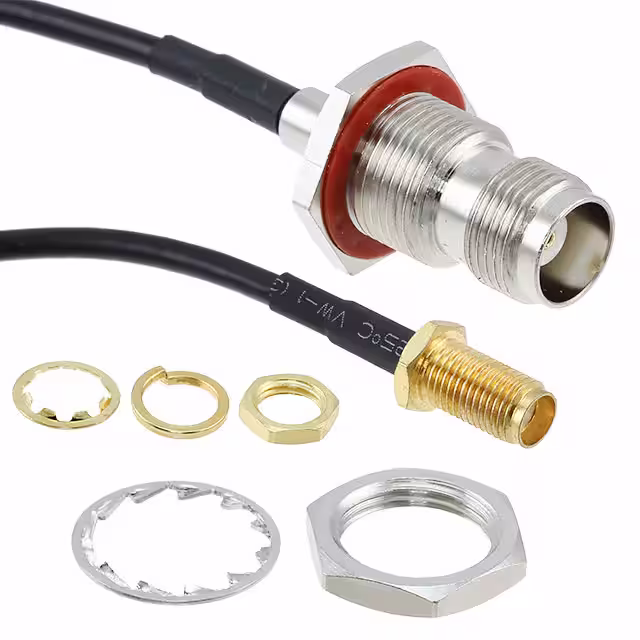

CBA-TNCF-SMAFCOAX CBL SMA TO TNC |
2,162 |
|
Datasheet | - | Bag | Active | SMA to TNC | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBAC-SMAMRP-SMAFCOAX CBL RP-SMA TO SMA |
3,634 |
|
Datasheet | - | Box | Active | RP-SMA to SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | SMA Jack | Female | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -55°C ~ 155°C | - | - |
|
|
CBAC-SMAM-SMAFCOAX CBL SMA TO SMA |
3,305 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 59.1" (1.5m) 4.9' | RG-174 | 50 Ohms | - | 50 Ohms | 6 GHz | Black | - | -55°C ~ 155°C | - | - |
|
|
CBA-SMAM-NM300CABLE ASSEMBLY SMA MALE TO N MAL |
2,459 |
|
Datasheet | - | Bag | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
|
|
CBA-SMAM-SMAFIP100COAX CBL SMA TO SMA |
1,601 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | - | - | 50 Ohms | - | Black | - | - | - | - |
|

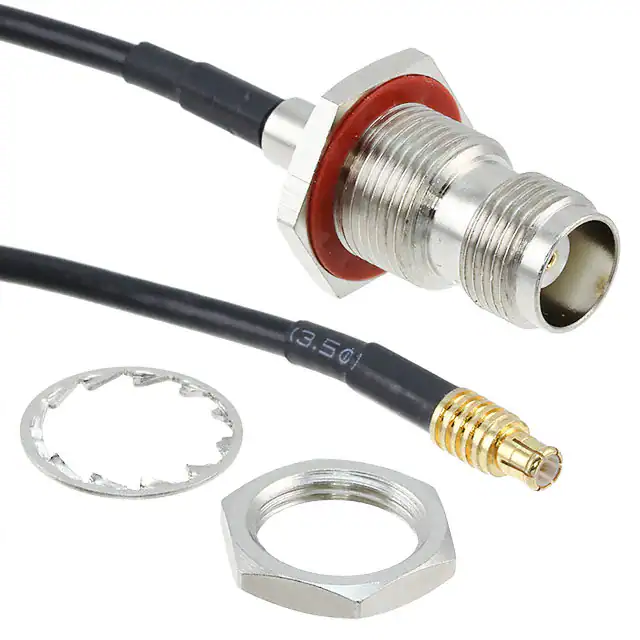

CBA-TNCF-MCXMCOAX CBL MCX TO TNC |
2,016 |
|
Datasheet | - | Bag | Active | MCX to TNC | MCX Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
|
CBA-SMAM-SMAF3COAX CBL SMA TO SMA |
3,736 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMA Plug | Male | Free Hanging (In-Line) | - | 11.811" (300.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 1 MHz | Black | - | -55°C ~ 125°C | - | - |
