Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CBA-SMA-SMB1COAX CBL SMA TO SMB |
173 |
|
Datasheet | - | Bulk | Active | SMA to SMB | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | SMB Plug | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | 1 GHz | Black | Shielded | - | - | - |
|
CBA-SMAMR-MMCXMCOAX CBL SMA TO MMCX |
217 |
|
Datasheet | - | Bag | Active | SMA to MMCX | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
CBA-TNCF-SMAMCOAX CBL SMA TO TNC |
272 |
|
Datasheet | - | Bag | Active | SMA to TNC | SMA Plug | Male | Free Hanging (In-Line) | - | TNC Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|
CBA-UFLSMAM25COAX CBL U.FL TO SMA |
231 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | RG-178 | 50 Ohms | - | 50 Ohms | - | Silver | - | - | - | - |
|
CBA-UFLSMA20COAX CBL U.FL TO SMA |
1,910 |
|
Datasheet | - | Bag | Active | U.FL (UMCC) to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | U.FL (UMCC) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | - | - | - | 50 Ohms | 6 GHz | Gray | - | - | - | - |
|
CBA-SMAM-SMAMRP30COAX CBL RP-SMA TO SMA |
131 |
|
Datasheet | - | Bulk | Active | RP-SMA to SMA | RP-SMA Plug | Female | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 118.1" (3.0m) 9.8' | RG-58 | 50 Ohms | - | 50 Ohms | 2.7 GHz | Black | Shielded | - | - | - |
|
CBA-SMAF-MCXMCOAX CBL SMA TO MCX |
3,873 |
|
Datasheet | - | Bag | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Copper | - | - | - | - |
|
CBA-SMAF-MCXMRCOAX CBL SMA TO MCX |
1,365 |
|
Datasheet | - | Bag | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|

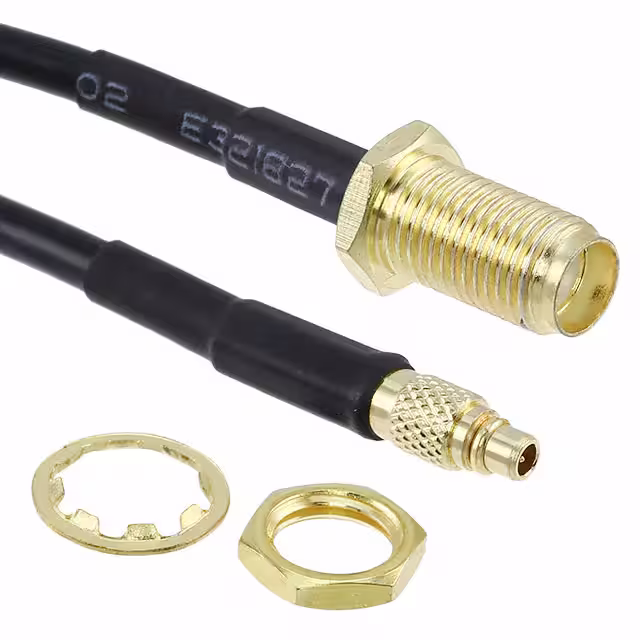

CBA-SMAF-MMCXMCOAX CBL SMA TO MMCX |
2,393 |
|
Datasheet | - | Bag | Active | SMA to MMCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MMCX Plug | Male | Free Hanging (In-Line) | - | 7.874" (200.00mm) | RG-174 | 50 Ohms | - | 50 Ohms | - | Black | - | - | - | - |
|

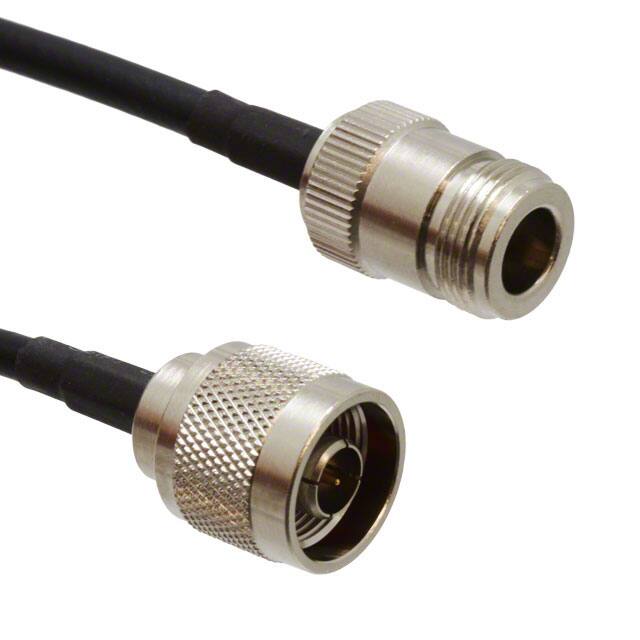

CBA-NF-NM1COAX CBL N-TYPE TO N-TYPE |
3,765 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Jack | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | RG-58 | 50 Ohms | - | - | - | Black | Shielded | - | - | - |
