Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
095-850-274M075COAX CBL TNC TO TNC |
4,781 |
|
Datasheet | TNC | Bag | Active | TNC to TNC | TNC Plug | Male | Free Hanging (In-Line) | - | TNC Plug | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-58 | 50 Ohms | - | 50 Ohms | 6 GHz | - | - | -40°C ~ 85°C | - | - |
|
095-900-558-050COAX CBL AMC4 TO MMCX |
1,925 |
|
Datasheet | - | Bag | Active | AMC4 to MMCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
095-902-585-050COAX CBL MHF1 LK TO SMA |
4,015 |
|
Datasheet | - | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
095-902-585-100COAX CBL MHF1 LK TO SMA |
1,219 |
|
Datasheet | - | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
095-900-553-050COAX CBL U.FL AMC TO MMCX |
4,194 |
|
Datasheet | - | Bag | Active | U.FL (UMCC), AMC to MMCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|

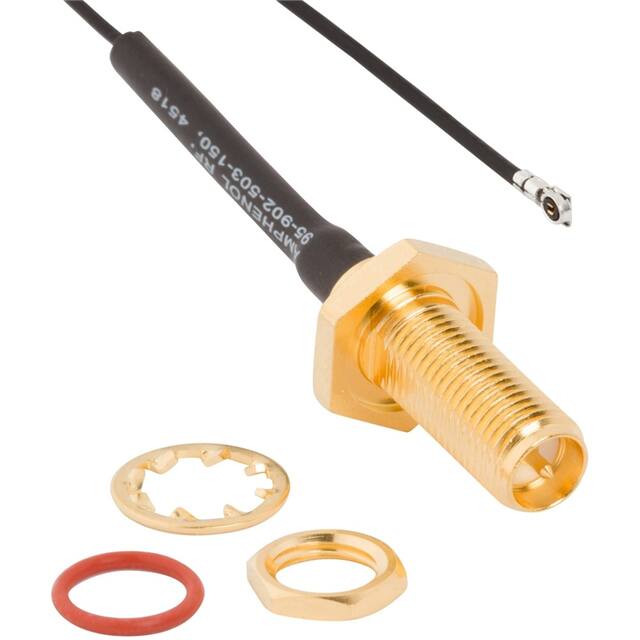

095-902-503-400COAX CBL RP-SMA TO AMC4 |
2,500 |
|
Datasheet | - | Bag | Active | RP-SMA to AMC4 | RP-SMA Jack | Male | Panel Mount | Bulkhead - Front Side Nut | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 15.75" (400.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
095-902-585-250COAX CBL MHF1 LK TO SMA |
2,936 |
|
Datasheet | - | Bag | Active | I-PEX MHF1 LK to SMA | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | I-PEX MHFI LK (Locking) Plug, Right Angle | Female | Free Hanging (In-Line) | - | 9.843" (250.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | - | - | - |
|
|
095-900-558-150COAX CBL AMC4 TO MMCX |
3,841 |
|
Datasheet | - | Bag | Active | AMC4 to MMCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
095-900-557-150COAX CBL U.FL AMC TO MMCX |
4,994 |
|
Datasheet | - | Bag | Active | U.FL (UMCC), AMC to MMCX | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Jack | Female | Panel Mount | Bulkhead - Front Side Nut | 5.906" (150.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
|
095-900-555-050COAX CBL AMC4 TO MMCX |
4,448 |
|
Datasheet | - | Bag | Active | AMC4 to MMCX | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | Black | - | -40°C ~ 90°C | - | - |
