Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

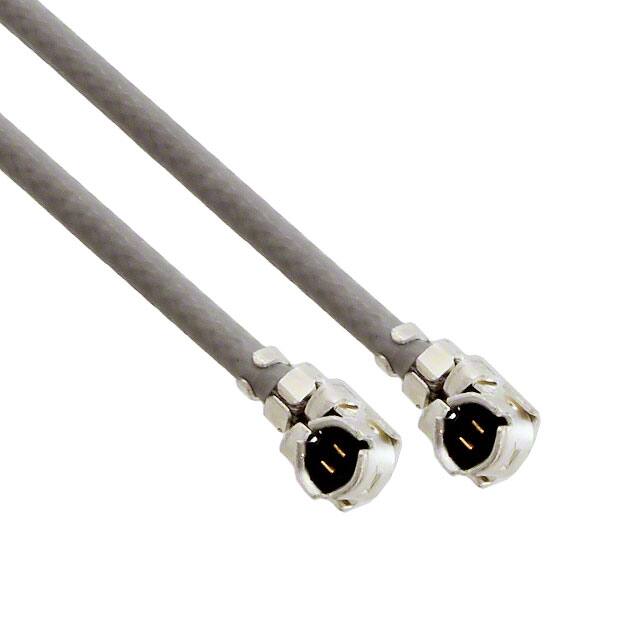

A-1PA-132-300G2COAX CBL U.FL AMC-U.FL AMC |
1,307 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|

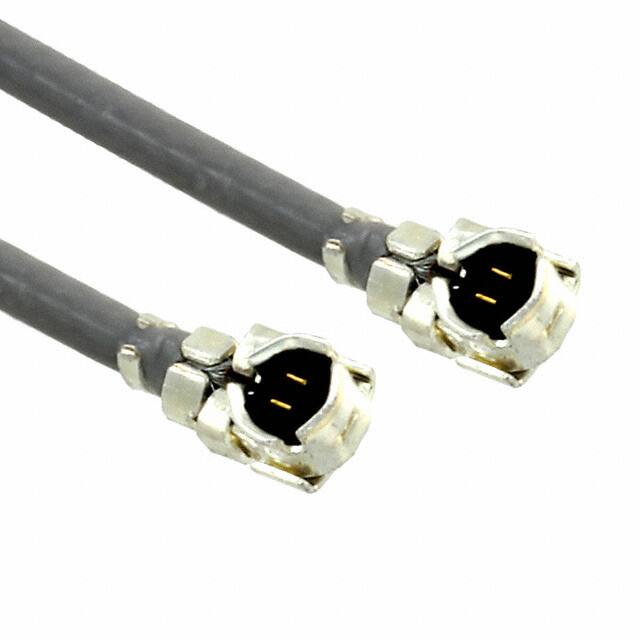

A-1PA-137-150G2COAX CBL U.FL AMC-U.FL AMC |
4,870 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 5.906" (150.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
A-1PA-137-153B2COAX CBL U.FL AMC-U.FL AMC |
3,428 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 6.024" (153.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-1PA-132-305B2COAX CBL U.FL AMC-U.FL AMC |
1,529 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 1.32mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
A-1PA-137-200G2COAX CBL U.FL AMC-U.FL AMC |
3,219 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 7.874" (200.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Gray | Shielded | -40°C ~ 90°C | - | - |
|
U-1PU-113-01KB2COAX CBL AMC4 TO AMC4 |
4,461 |
|
Datasheet | USS | Bag | Active | AMC4 to AMC4 | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | AMC4 Plug, Right Angle | Female | Free Hanging (In-Line) | - | 39.4" (1.0m) 3.3' | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | - | -40°C ~ 85°C | - | - |
|
|
A-1PA-137-300B2COAX CBL U.FL AMC-U.FL AMC |
1,893 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 11.811" (300.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
|
A-1PA-137-500B2COAX CBL U.FL AMC-U.FL AMC |
2,460 |
|
Datasheet | - | Bulk | Active | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 1.37mm OD Coaxial Cable | - | - | 50 Ohms | 6 GHz | Black | Shielded | -40°C ~ 90°C | - | - |
|
335104-12-0050COAX CBL U.FL AMC-U.FL AMC |
1,802 |
|
Datasheet | - | Bulk | Obsolete | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 1.969" (50.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
|
|
335104-12-0100COAX CBL U.FL AMC-U.FL AMC |
3,821 |
|
Datasheet | - | Bulk | Obsolete | U.FL (UMCC), AMC to U.FL (UMCC), AMC | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | U.FL (UMCC), AMC Plug, Right Angle | Female | Free Hanging (In-Line) | - | 3.937" (100.00mm) | 1.13mm OD Coaxial Cable | - | - | 50 Ohms | - | - | - | - | - | - |
