Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0081-003COAX CBL SMA TO SMA |
2,217 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .086 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|

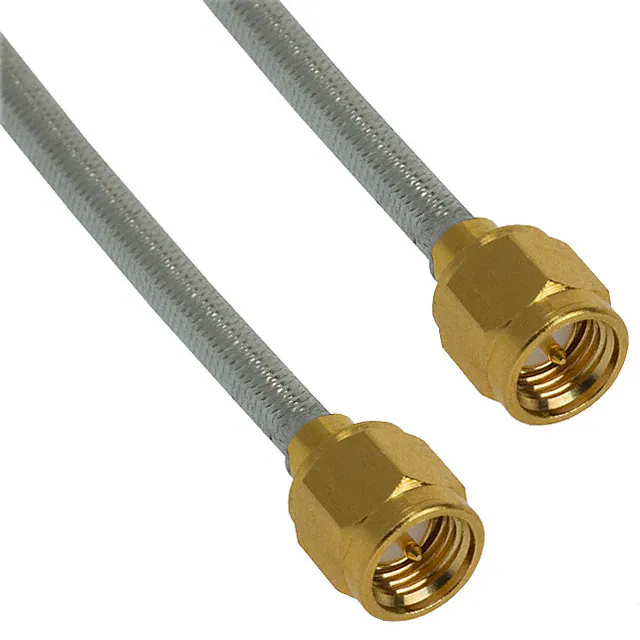

415-0082-003COAX CBL SMA TO SMA |
185 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.000" (76.20mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
415-0060-036COAX CBL N-TYPE TO N-TYPE |
101 |
|
Datasheet | - | Bulk | Active | N-Type to N-Type | N-Type Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 36.00" (914.40mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 11 GHz | Black | Shielded | - | - | - |
|
415-0027-012COAX CBL SMA TO SMA |
4,400 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
415-0210-MM100COAX CBL 2.92MM TO 2.92MM |
2,192 |
|
Datasheet | - | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | HP 160S | - | - | 50 Ohms | 40 GHz | Blue | Shielded | - | - | - |
|
415-0536-012COAX CBL 2.4MM TO 2.4MM |
1,964 |
|
Datasheet | - | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | 2.44mm OD Coaxial Cable | - | - | - | 50 GHz | Blue | - | - | - | - |
|
415-0181-024COAX CBL SMA TO MCX |
101 |
|
Datasheet | - | Bulk | Active | SMA to MCX | SMA Jack | Female | Panel Mount | Bulkhead - Front Side Nut | MCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-316 DS | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|
415-0082-MM175COAX CBL SMA TO SMA |
1,215 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 6.890" (175.00mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
|
415-0536-MM500COAX CBL 2.4MM TO 2.4MM |
121 |
|
Datasheet | - | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | 2.44mm OD Coaxial Cable | - | - | - | 50 GHz | Blue | - | - | - | - |
|
|
415-0210-018COAX CBL 2.92MM TO 2.92MM |
2,367 |
|
Datasheet | - | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | HP 160S | - | - | 50 Ohms | 40 GHz | Blue | Shielded | - | - | - |
