Coaxial Cables (RF)
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | Style | 1st Connector | 1st Contact Gender | 1st Connector Mounting Type | 1st Connector Mounting Feature | 2nd Connector | 2nd Contact Gender | 2nd Connector Mounting Type | 2nd Connector Mounting Feature | Length | Cable Type | Cable Impedance | Connector Impedance | Overall Impedance | Frequency - Max | Color | Features | Operating Temperature | Grade | Qualification |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
415-0030-006COAX CBL SMA TO SMA |
219 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 6.000" (152.40mm) | RG-316 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Copper | Shielded | - | - | - |
|
415-0068-024COAX CBL MMCX TO MMCX |
111 |
|
Datasheet | - | Bulk | Active | MMCX to MMCX | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | MMCX Plug, Right Angle | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 6 GHz | White | Shielded | - | - | - |
|

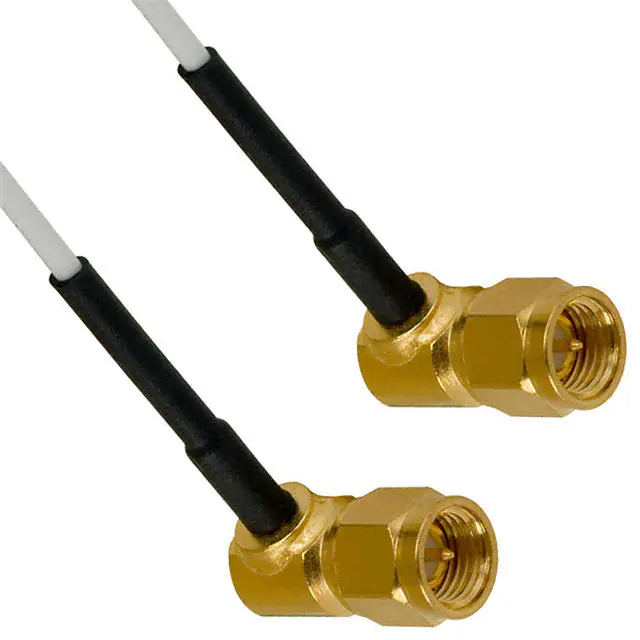

415-0027-MM750COAX CBL SMA TO SMA |
126 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | SMA Plug, Right Angle | Male | Free Hanging (In-Line) | - | 29.53" (750.00mm) | RG-178 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Gray | Shielded | - | - | - |
|
415-0081-018COAX CBL SMA TO SMA |
488 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 18.00" (457.20mm) | Hand Formable .086 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
415-0061-024COAX CBL SMA TO N-TYPE |
1,162 |
|
Datasheet | - | Bulk | Active | SMA to N-Type | SMA Plug | Male | Free Hanging (In-Line) | - | N-Type Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | RG-142 | 50 Ohms | 50 Ohms | 50 Ohms | 12.4 GHz | Black | Shielded | - | - | - |
|
|
415-0081-005COAX CBL SMA TO SMA |
2,584 |
|
Datasheet | - | Bag | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 5.000" (127.00mm) | Hand Formable .086 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
415-0082-MM100COAX CBL SMA TO SMA |
3,265 |
|
Datasheet | - | Bulk | Active | SMA to SMA | SMA Plug | Male | Free Hanging (In-Line) | - | SMA Plug | Male | Free Hanging (In-Line) | - | 3.937" (100.00mm) | Hand Formable .141 | - | 50 Ohms | 50 Ohms | 18 GHz | Gray | Shielded | - | - | - |
|
415-0536-024COAX CBL 2.4MM TO 2.4MM |
3,064 |
|
Datasheet | - | Bag | Active | 2.4mm to 2.4mm | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 2.4mm Plug | Male | Free Hanging (In-Line) | - | 24.00" (609.60mm) | 2.44mm OD Coaxial Cable | - | - | - | 50 GHz | Blue | - | - | - | - |
|
415-0210-012COAX CBL 2.92MM TO 2.92MM |
4,464 |
|
Datasheet | - | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 12.00" (304.80mm) | HP 160S | - | - | 50 Ohms | 40 GHz | Blue | Shielded | - | - | - |
|
|
415-0210-MM500COAX CBL 2.92MM TO 2.92MM |
4,852 |
|
Datasheet | - | Bag | Active | 2.92mm to 2.92mm | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 2.92mm Plug | Male | Free Hanging (In-Line) | - | 19.69" (500.00mm) | HP 160S | - | - | 50 Ohms | 40 GHz | Blue | Shielded | - | - | - |
