Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1417924CIRC CBL 8POS RCPT TO PLUG 32.8' |
1,471 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 8 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | 32.8' (10.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

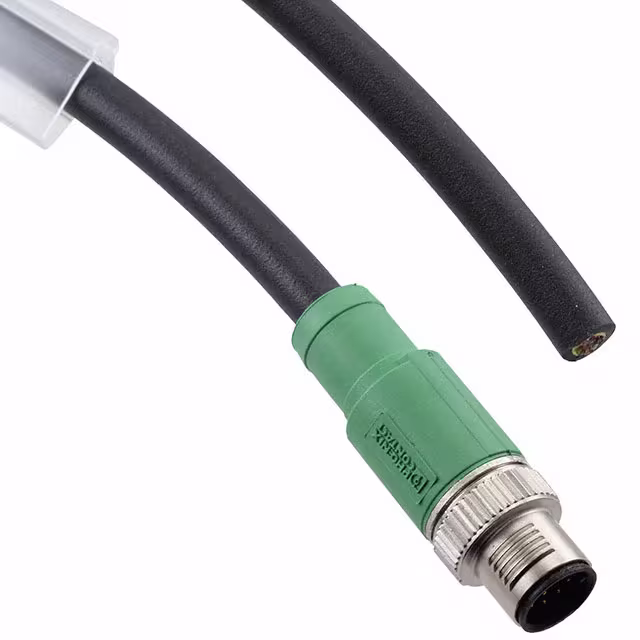

1430543CIR CBL 12POS RCPT TO WIRE 9.84' |
4,048 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 12 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1400526CIRC CBL 4POS RCPT TO PLUG 9.84' |
4,335 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | B | Free Hanging (In-Line) | Plug | Female Sockets | 5 | All | M12 | B | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1522422CIRC CBL 6POS PLUG TO WIRE 32.8' |
2,284 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 6 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1430129CIR CBL 12POS PLUG TO WIRE 4.92' |
1,443 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 12 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1417911CIRC CBL 5POS RCPT TO PLUG 65.6' |
2,996 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | 65.6' (20.0m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1555266CIR CBL 17POS RCPT TO WIRE 4.92' |
4,281 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 17 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1529179CIRC CBL 8POS RCPT TO PLUG 32.8' |
3,897 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 8 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
|
1430695CIR CBL 17POS RCPT TO WIRE 4.92' |
2,687 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 17 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1507557CIRC CBL 5POS RCPT TO PLUG 6.56' |
2,181 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | 6.56' (2.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
