Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1417921CIRC CBL 8POS RCPT TO PLUG 9.84' |
3,586 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 8 | All | M12 | A | Free Hanging (In-Line) | Plug | Female Sockets | 8 | All | M12 | A | Free Hanging (In-Line) | 9.84' (3.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

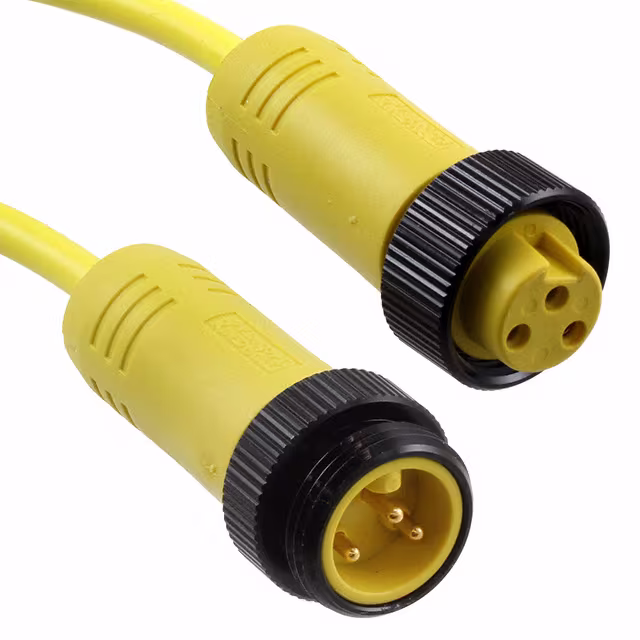

1416587CIRC CBL 3POS RCPT TO PLUG 16.4' |
3,555 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 3 | All | 7/8" | A | Free Hanging (In-Line) | Plug | Female Sockets | 3 | All | 7/8" | A | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
1522312CIRC CBL 6POS RCPT TO WIRE 16.4' |
3,809 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 6 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1407272CIRC CBL 8POS RCPT TO WIRE 16.4' |
1,393 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 8 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyethylene, Cross Linked (PEX) | Shielded | IP65/IP67/IP68/IP69K - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1522419CIRC CBL 6POS PLUG TO WIRE 16.4' |
2,962 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 6 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1405240CIRC CBL 4POS PLUG TO WIRE 1.64' |
1,756 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 | All | M12 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

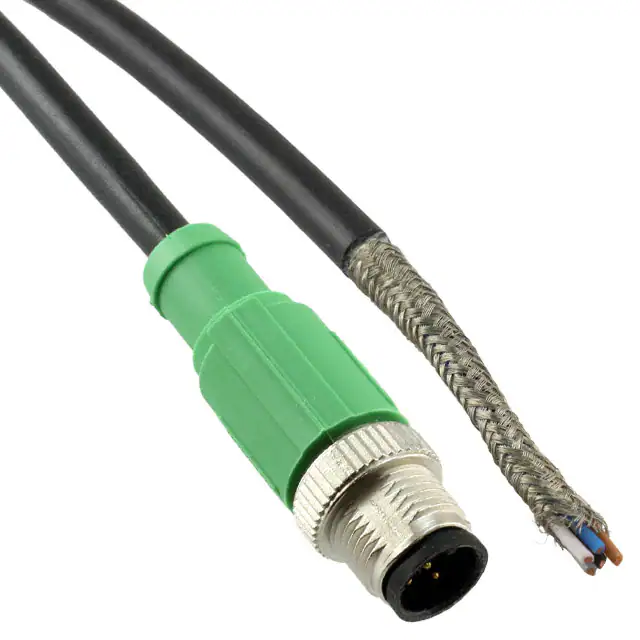

1500732CIRC CBL 5POS RCPT TO WIRE 32.8' |
1,529 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1500758CIRC CBL 5POS PLUG TO WIRE 32.8' |
1,477 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 32.8' (10.00m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1554775CIR CBL 12POS RCPT TO WIRE 4.92' |
2,898 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 12 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1192152CIRC CBL 4POS RCPT TO RCPT 16.4' |
4,907 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | D | Free Hanging (In-Line) | Receptacle | Male Pins | 4 | All | M12 | D | Free Hanging (In-Line) | 16.40' (5.00m) | Standard | Round | Thermoplastic Elastomer (TPE) | Shielded | IP65 - Dust Tight, Water Resistant | Cat5e, Industrial Environments |
