Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1095944CBL 5POS PLUG RA TO WIRE 16.4' |
4,828 |
|
Datasheet | SAC | Bulk | Active | Plug, Right Angle | Male Pins | 5 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1693791CIRC CBL 4POS PLUG TO WIRE 1.64' |
2,132 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 | All | M12 | A | Panel Feed Through | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Round | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1416520CIRC CBL 2POS PLUG TO WIRE 6.56' |
2,543 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 2 | All | 7/8" | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 6.56' (2.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
1424140CIRC CBL 4POS RCPT TO WIRE 1.64' |
3,026 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | T | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | - | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
|
1523447CIRC CBL 4POS PLUG TO WIRE 1.64' |
2,427 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 | All | M12 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

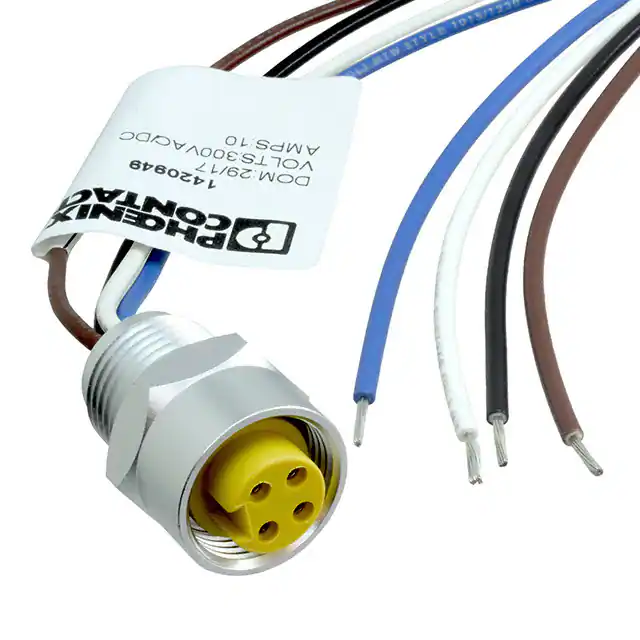

1420949CIRC CBL 4POS PLUG TO WIRE 3.28' |
1,697 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 | All | 7/8" | Keyed | Panel Mount | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Individual | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
|
1681897CBL 4POS PLUG RA TO WIRE 16.4' |
4,678 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 4 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|

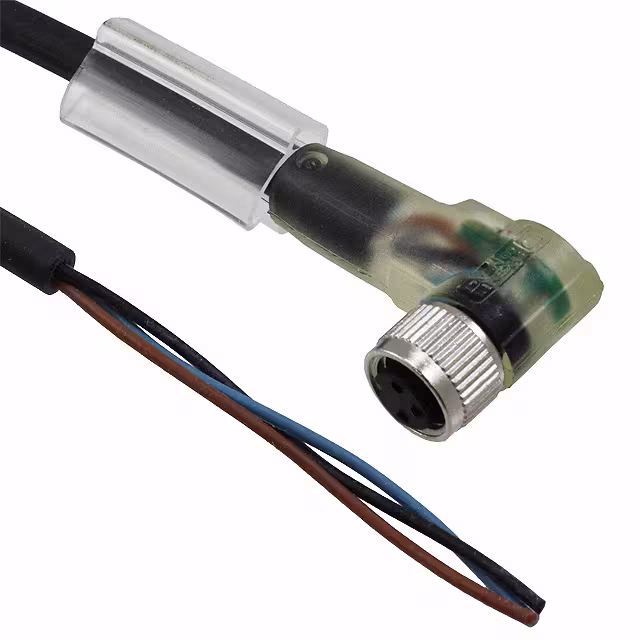

1671069CBL 3POS PLUG RA TO WIRE 4.92' |
2,804 |
|
Datasheet | - | Bulk | Active | Plug, Right Angle | Female Sockets | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1682715CIRC CBL 4POS RCPT TO WIRE 4.92' |
3,271 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 4.92' (1.50m) | Standard | Round | Polyurethane (PUR) | Shielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1682236CBL 4POS RCPT RA TO PLUG 1.97' |
3,548 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 4 | All | M8 | - | Free Hanging (In-Line) | Plug | Female Sockets | 4 | All | M8 | - | Free Hanging (In-Line) | 1.97' (600.00mm) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
