Circular Cable Assemblies
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Series | Packaging | Product Status | 1st Connector Type | 1st Connector Gender | 1st Connector Number of Positions | 1st Connector Number of Positions Loaded | 1st Connector Shell Size - Insert | 1st Connector Orientation | 1st Connector Mounting Type | 2nd Connector Type | 2nd Connector Gender | 2nd Connector Number of Positions | 2nd Connector Number of Positions Loaded | 2nd Connector Shell Size - Insert | 2nd Connector Orientation | 2nd Connector Mounting Type | Length | Assembly Configuration | Cable Type | Cable Material | Shielding | Ingress Protection | Usage |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1425583CIRC CBL 5POS PLUG TO WIRE 0.66' |
4,333 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 (4 Power + FE) | All | M12 | L | Panel Mount | Wire Leads | - | - | - | - | - | - | 0.66' (200.00mm) | Standard | Individual | Polyethylene, Cross Linked (PEX) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1681716CBL 3POS RCPT RA TO WIRE 16.4' |
4,666 |
|
Datasheet | - | Bulk | Active | Receptacle, Right Angle | Male Pins | 3 | All | M8 | - | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyurethane (PUR) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1419991CIRC CBL 4POS RCPT TO WIRE 1.64' |
1,882 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|

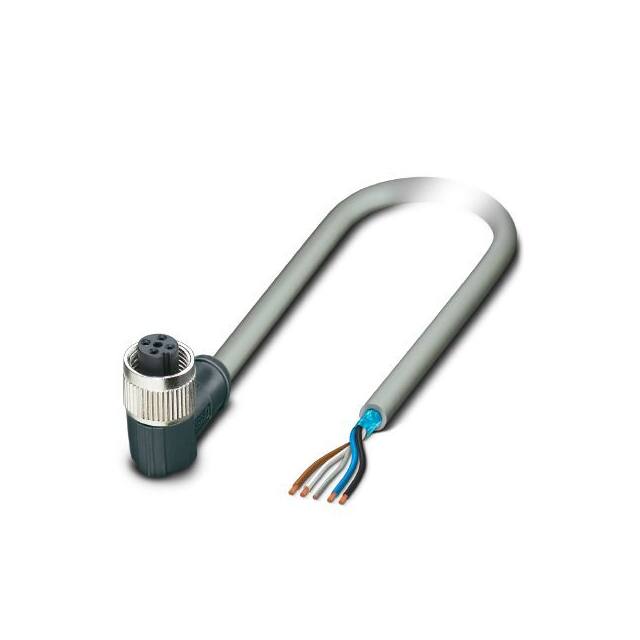

1095865CBL 4POS RCPT RA TO WIRE 16.4' |
4,081 |
|
Datasheet | SAC | Bulk | Active | Receptacle, Right Angle | Female Sockets | 4 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Shielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | - |
|
1425636CIRC CBL 5POS PLUG TO WIRE 0.66' |
2,406 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 5 (4 Power + PE) | All | M12 | K | Panel Mount | Wire Leads | - | - | - | - | - | - | 0.66' (200.00mm) | Standard | Individual | Polyphenylene Ether, Modified (mPPE) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1424953CIRC CBL 3POS PLUG TO WIRE 16.4' |
2,050 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 3 | All | M12 | A | Free Hanging (In-Line) | Wire Leads | - | - | - | - | - | - | 16.40' (5.00m) | Standard | Round | Polyvinyl Chloride (PVC) | Unshielded | IP65/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1425589CIRC CBL 4POS PLUG TO WIRE 0.66' |
3,250 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 | All | M12 | L | Panel Mount | Wire Leads | - | - | - | - | - | - | 0.66' (200.00mm) | Standard | Individual | Polyethylene, Cross Linked (PEX) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1425634CIRC CBL 4POS PLUG TO WIRE 0.66' |
4,208 |
|
Datasheet | - | Bulk | Active | Plug | Female Sockets | 4 | All | M12 | L | Panel Mount | Wire Leads | - | - | - | - | - | - | 0.66' (200.00mm) | Standard | Individual | Polyphenylene Ether, Modified (mPPE) | Unshielded | IP65/IP67 - Dust Tight, Water Resistant, Waterproof | Industrial Environments |
|
1420003CIRC CBL 4POS RCPT TO WIRE 1.64' |
3,780 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | M12 | A | Panel Mount | Wire Leads | - | - | - | - | - | - | 1.64' (500.00mm) | Standard | Individual | Thermoplastic Elastomer (TPE) | Unshielded | IP67 - Dust Tight, Waterproof | Industrial Environments |
|
1417765CIRC CBL 4POS RCPT TO WIRE 3.28' |
1,100 |
|
Datasheet | - | Bulk | Active | Receptacle | Male Pins | 4 | All | 7/8" | Keyed | Panel Mount | Wire Leads | - | - | - | - | - | - | 3.28' (1.00m) | Standard | Individual | Polyvinyl Chloride (PVC) | Unshielded | IP68 - Dust Tight, Waterproof | Industrial Environments |
