Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1411175CABLE GLND 13-18.01MM PG21 BRASS |
2,378 |
|
Datasheet | Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.283" (7.20mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
1411189CABLE GLAND 9-13MM M20 BRASS |
4,535 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.512" (13.00mm) | M20 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
1411187CABLE GLAND 3-6.5MM M12 BRASS |
1,714 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12 | 0.236" (6.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
1411176CABLE GLND 18.01-25MM PG29 BRASS |
3,681 |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | PG29 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
1424529CABLE GLAND 18.01-25MM M40 BRASS |
3,302 |
|
Datasheet | Cable Gland | 0.709" (18.01mm) | 0.984" (25.00mm) | M40x1.5 | 0.354" (9.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
1424497CABLE GLAND 5-10MM PG11 POLYAMID |
739 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | PG11 | 0.315" (8.00mm) | - | - | Polyamide (PA), Nylon | Seal | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
1424527CABLE GLAND 10-14MM M25 BRASS |
2,818 |
|
Datasheet | Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | M25x1.5 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|

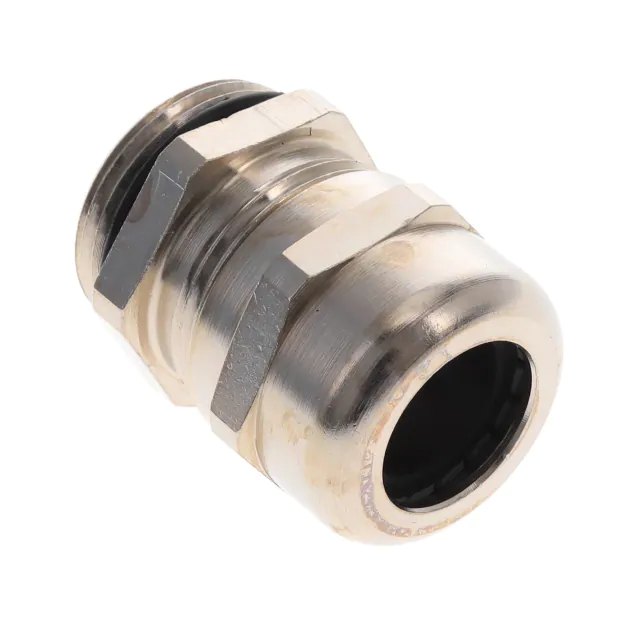

1411199CABLE GLAND 10-14MM PG16 BRASS |
1,630 |
|
Datasheet | Cable Gland | 0.394" (10.00mm) | 0.551" (14.00mm) | PG16 | 0.256" (6.50mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
1411200CABLE GLND 13-18.01MM PG21 BRASS |
1,030 |
|
Datasheet | Cable Gland | 0.512" (13.00mm) | 0.709" (18.01mm) | PG21 | 0.283" (7.20mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

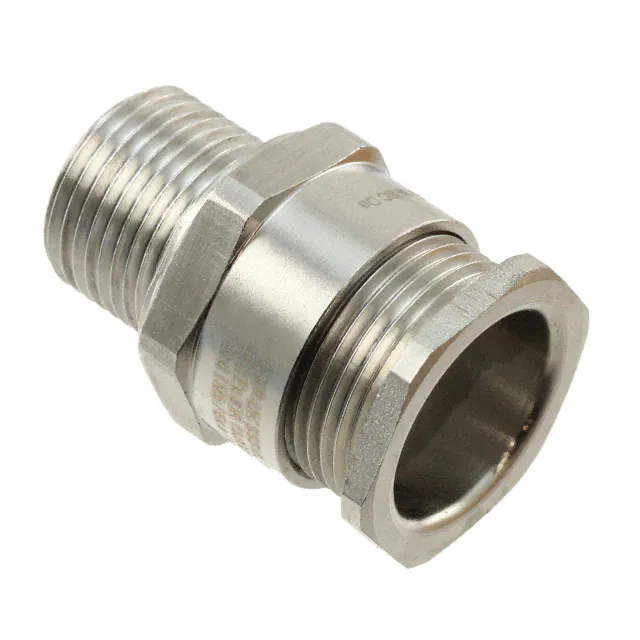

1411076CABLE GLAND 6.5-14MM M20 S STEEL |
1,391 |
|
Datasheet | Cable Gland | 0.256" (6.50mm) | 0.551" (14.00mm) | M20 | 0.591" (15.00mm) | - | - | Stainless Steel | O-Ring, Seal | Silver | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C |
