Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1411162CABLE GLAND 5-10MM M16 BRASS |
4,017 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16 | 0.276" (7.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
|
1411165CABLE GLAND 11-16.99MM M25 BRASS |
323 |
|
Datasheet | Cable Gland | 0.433" (11.00mm) | 0.669" (16.99mm) | M25 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
1411188CABLE GLAND 5-9MM M16 BRASS |
156 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M16 | 0.197" (5.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

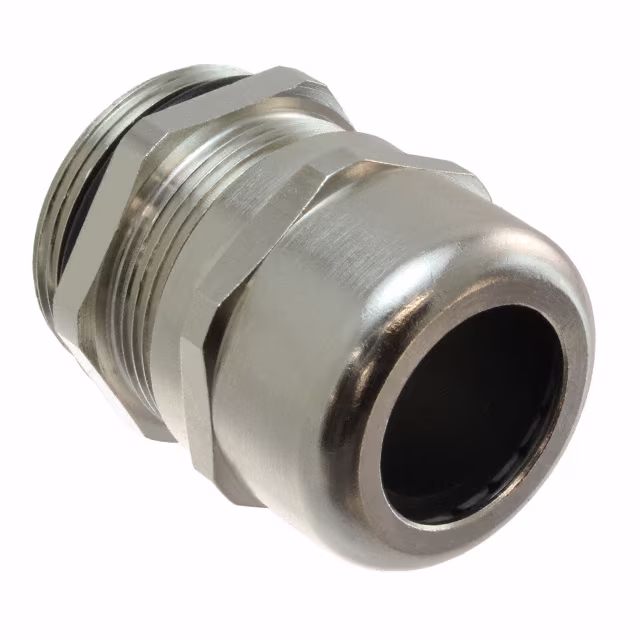

1411166CABLE GLAND 15-21MM M32 BRASS |
157 |
|
Datasheet | Cable Gland | 0.591" (15.00mm) | 0.827" (21.00mm) | M32 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68/IP69 - Dust Tight, Water Resistant, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
|
1411191CABLE GLAND 14-21MM M32 BRASS |
121 |
|
Datasheet | Cable Gland | 0.551" (14.00mm) | 0.827" (21.00mm) | M32 | 0.315" (8.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 100°C | |
|
1415117CABLE GLAND 7-13MM M20 POLYAMIDE |
162 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.512" (13.00mm) | M20 | 0.591" (15.00mm) | - | - | Polyamide (PA), Nylon | Seal | Black, Blue | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 75°C | |
|
|
1415146CABLE GLAND 21-35MM M50 BRASS |
124 |
|
Datasheet | Cable Gland | 0.827" (21.00mm) | 1.378" (35.00mm) | M50 | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 75°C | |
|
|
1411094CABLE GLND 23.7-33.9MM M32 BRASS |
136 |
|
Datasheet | Cable Gland | 0.933" (23.70mm) | 1.335" (33.90mm) | M32 | 0.591" (15.00mm) | - | - | Brass, Nickel Plated | O-Ring, Seal | Silver | IP66/IP67/IP68 - Dust Tight, Water Resistant, Waterproof | -60°C ~ 130°C | |
|
|
1417652CABLE GLAND 3-6.5MM M12 POLYAMID |
106 |
|
Datasheet | Cable Gland | 0.118" (3.00mm) | 0.256" (6.50mm) | M12x1.5 | 0.315" (8.00mm) | - | 0.480" (12.2mm) | Polyamide (PA), Nylon | - | Light Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
1411124CABLE GLAND 5-10MM M16 POLYAMIDE |
999 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.394" (10.00mm) | M16 | 0.394" (10.00mm) | - | - | Polyamide (PA), Nylon | Seal | Gray | IP66/IP68 - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C |
