Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
96786.5CABLE GLAND 6.6-8.89MM 1/2"NPT |
4,300 |
|
- |
Cable Gland | 0.260" (6.60mm) | 0.350" (8.89mm) | 1/2" NPT | 0.630" (16.00mm) | - | 0.840" (21.3mm) | Polyvinylidene Fluoride (PVDF) | Strain Relief | Black | IP65 - Dust Tight, Water Resistant; NEMA 4X | -40°C ~ 150°C | |
|
|
97376.6CABLE GLAND M16 BRASS |
2,097 |
|
- |
Cable Gland | - | - | M16x1.5 | - | - | - | Brass, Nickel Plated | - | Silver | - | - | |
|
|
20680.5CABLE GLAND 5.59-12.95MM PG21 |
4,712 |
|
- |
Cable Gland | 0.220" (5.59mm) | 0.510" (12.95mm) | PG21 | - | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 150°C | |
|
|
20682.5CABLE GLAND 11.43-15.5MM PG21 |
3,800 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | PG21 | - | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 150°C | |
|
|
20683.5CABLE GLAND 16-20.07MM PG21 PVDF |
3,865 |
|
- |
Cable Gland | 0.630" (16.00mm) | 0.790" (20.07mm) | PG21 | - | - | 1.120" (28.4mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP54 - Dust Protected, Water Resistant; NEMA 13 | -40°C ~ 150°C | |
|
|
21404.5CABLE GLAND MULT PG21 PVDF |
4,064 |
|
- |
Cable Gland - Multiple Openings | - | - | PG21 | - | - | - | Polyvinylidene Fluoride (PVDF) | - | Black | - | - | |
|

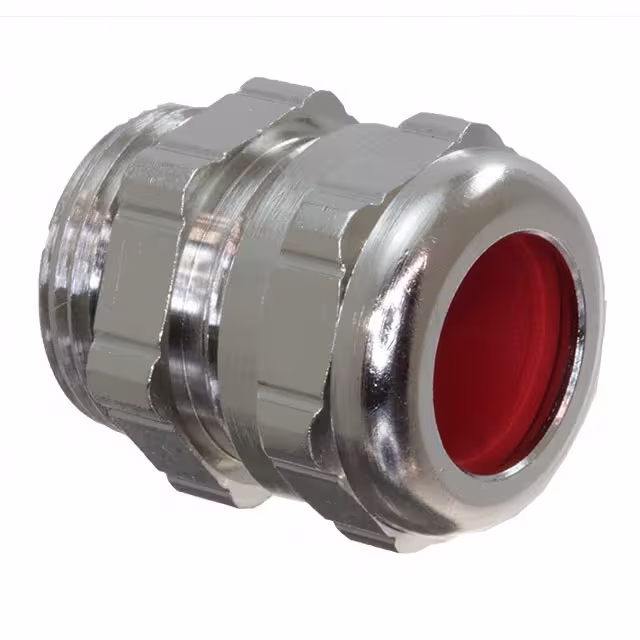

97140.6CABLE GLAND 8.89-12.95MM M20 |
1,478 |
|
Datasheet | Cable Gland | 0.350" (8.89mm) | 0.510" (12.95mm) | M20x1.5 | 0.240" (6.10mm) | - | 0.790" (20.1mm) | Brass, Nickel Plated | Sealing Ring | Silver | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 300°C | |
|
|
25177.4CABLE GLND 11.43-15.5MM M32 PVDF |
2,195 |
|
- |
Cable Gland | 0.450" (11.43mm) | 0.610" (15.50mm) | M32x1.5 | 0.430" (10.92mm) | - | 1.260" (32.0mm) | Polyvinylidene Fluoride (PVDF) | - | Opaque | IP68 - Dust Tight, Waterproof; NEMA 4X | -40°C ~ 150°C | |
|
|
96856.5CABLE GLAND 5-8MM M20 PVDF |
4,132 |
|
- |
Cable Gland - Flat Cables | 0.197" (5.00mm) | 0.315" (8.00mm) | M20x1.5 | 0.260" (6.60mm) | - | 0.790" (20.1mm) | Polyvinylidene Fluoride (PVDF) | - | Black | IP65 - Dust Tight, Water Resistant; NEMA 3 | -40°C ~ 150°C | |
|
|
97380.6CABLE GLAND M20 BRASS |
2,690 |
|
- |
Cable Gland | - | - | M20x1.5 | - | - | - | Brass, Nickel Plated | - | Silver | - | - |
