Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1300970165CABLE GRIP 12.7-15.88MM 1/2" NPT |
3,920 |
|
Datasheet | Cable Grip | 0.500" (12.70mm) | 0.625" (15.88mm) | 1/2" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - | |
|
1300970173CABLE GRIP 22.23-25.4MM 1" NPT |
2,145 |
|
Datasheet | Cable Grip | 0.875" (22.23mm) | 1.000" (25.40mm) | 1" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - | |
|
1300970273CABLE GRP 41.15-50.8MM 2 1/2"NPT |
2,359 |
|
Datasheet | Cable Grip | 1.620" (41.15mm) | 2.000" (50.80mm) | 2 1/2" NPT | 1.350" (34.29mm) | - | - | Aluminum | Locknut, Strain Relief | Silver | - | - | |
|
1300980049CABLE GRIP 4.75-6.35MM 1/2" NPT |
4,228 |
|
Datasheet | Cable Grip | 0.187" (4.75mm) | 0.250" (6.35mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|

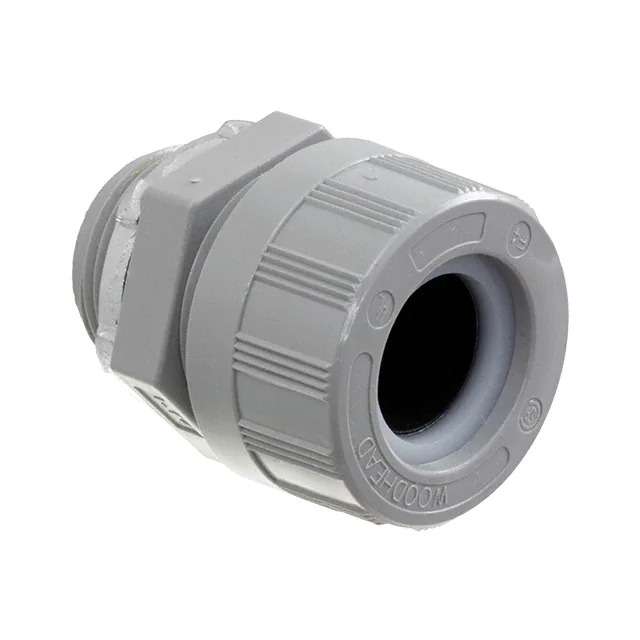

1300980157CABLE GRIP 19.05-22.23MM 1" NPT |
1,188 |
|
Datasheet | Cable Grip | 0.750" (19.05mm) | 0.875" (22.23mm) | 1" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300980225CABLE GRIP 9.53-11.1MM 3/4" NPT |
1,490 |
|
Datasheet | Cable Grip | 0.375" (9.53mm) | 0.437" (11.10mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300980205CABLE GRIP 4.75MM 1/2" NPT |
4,810 |
|
Datasheet | Cable Grip, Multi-Hole | - | 0.187" (4.75mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300980180CABLE GRIP 28.58-31.75MM 1 1/4" |
2,831 |
|
Datasheet | Cable Grip | 1.125" (28.58mm) | 1.250" (31.75mm) | 1 1/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300980159CABLE GRP RA 19.05-22.23MM 1"NPT |
3,922 |
|
Datasheet | Cable Grip - 90° | 0.750" (19.05mm) | 0.875" (22.23mm) | 1" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300970161CABLE GRIP 6.35-9.53MM 1/2" NPT |
4,290 |
|
Datasheet | Cable Grip | 0.250" (6.35mm) | 0.375" (9.53mm) | 1/2" NPT | - | - | - | Aluminum | Compression Nut, Grommet, Strain Relief | Silver | - | - |
