Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1300980078CABLE GRIP 11.1-12.7MM 1/2" NPT |
3,213 |
|
Datasheet | Cable Grip | 0.437" (11.10mm) | 0.500" (12.70mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
936000399GWCONNECT PLASTIC GABLE GLAND, W |
243 |
|
- |
- | - | - | - | - | - | - | - | - | - | - | - | |
|
1301990030CABLE FEEDTHROUGH 11.1-14.28MM |
3,267 |
|
Datasheet | Cable Feedthrough | 0.437" (11.10mm) | 0.562" (14.28mm) | - | - | - | - | Aluminum | Compression Nut, Grommet, O-Ring, Shield Ring, Stop Ring | Silver | IP67/IP68 - Dust Tight, Waterproof | -40°C ~ 150°C | |
|
|
1301210020CABLE GLAND PG36 PVC |
4,773 |
|
- |
Cable Gland - Flat Cables | - | - | PG36 | - | - | 1.875" (47.6mm) | Poly-Vinyl Chloride (PVC) | Compression Nut | Black | - | - | |
|
1300980061Cable Glands, Strain Reliefs & C |
341 |
|
- |
Cable Grip | 0.312" (7.93mm) | 0.375" (9.53mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
5530WCable Glands, Strain Reliefs & C |
1,561 |
|
- |
Cable Grip | 0.437" (11.10mm) | 0.500" (12.70mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300980052CABLE GRIP 6.35-7.93MM 1/2" NPT |
3,218 |
|
Datasheet | Cable Grip | 0.250" (6.35mm) | 0.312" (7.93mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300980082CABLE GRIP 12.7-14.28MM 1/2" NPT |
3,580 |
|
Datasheet | Cable Grip | 0.500" (12.70mm) | 0.562" (14.28mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|

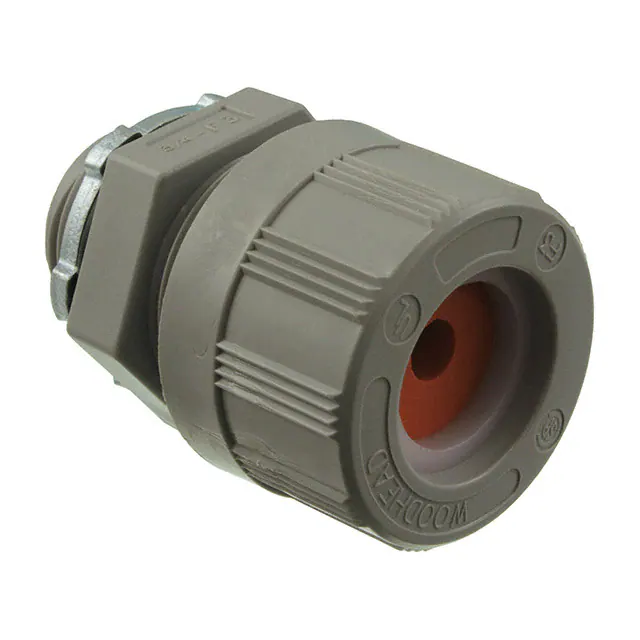

1300980215CABLE GRIP 4.75-6.35MM 3/4" NPT |
4,020 |
|
Datasheet | Cable Grip | 0.187" (4.75mm) | 0.250" (6.35mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300970327CABLE GRP 14.28-15.88MM 1/2" NPT |
3,617 |
|
Datasheet | Cable Grip | 0.562" (14.28mm) | 0.625" (15.88mm) | 1/2" NPT | 0.500" (12.70mm) | - | - | Stainless Steel | Compression Nut, Grommet, Strain Relief | Gray | - | - |
