Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
5562SSCABLE GRIP 25.4-27.94MM 3/4" NPT |
4,955 |
|
- |
Cable Grip | 1.000" (25.40mm) | 1.100" (27.94mm) | 3/4" NPT | - | - | - | Stainless Steel | Compression Ring | Silver | - | - | |
|
|
5562MSSCABLE GRIP 25.4-27.94MM 1" NPT |
3,076 |
|
- |
Cable Grip | 1.000" (25.40mm) | 1.100" (27.94mm) | 1" NPT | - | - | - | Stainless Steel | Strain Relief | Silver | - | - | |
|
1300980155CABLE GRIP 19.05-22.23MM 1" NPT |
1,202 |
|
Datasheet | Cable Grip | 0.750" (19.05mm) | 0.875" (22.23mm) | 1" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300980058CABLE GRP RA 6.35-7.93MM 1/2"NPT |
4,040 |
|
Datasheet | Cable Grip - 90° | 0.250" (6.35mm) | 0.312" (7.93mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300970269CABLE GRP 23.88-31.75MM 1 1/4NPT |
1,885 |
|
Datasheet | Cable Grip | 0.940" (23.88mm) | 1.250" (31.75mm) | 1 1/4" NPT | 0.850" (21.59mm) | - | - | Aluminum | Locknut, Strain Relief | Silver | - | - | |
|
1300980188CABLE GRIP 5.54-16.26MM 1/2" NPT |
3,951 |
|
Datasheet | Cable Grip, Oval Hole | 0.218" (5.54mm) | 0.640" (16.26mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300980076CABLE GRIP 11.1-12.7MM 1/2" NPT |
4,090 |
|
Datasheet | Cable Grip | 0.437" (11.10mm) | 0.500" (12.70mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
1300980185CABLE GRIP 5.54-10.67MM 1/2" NPT |
4,726 |
|
Datasheet | Cable Grip, Oval Hole | 0.218" (5.54mm) | 0.420" (10.67mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | - | Gray | - | - | |
|

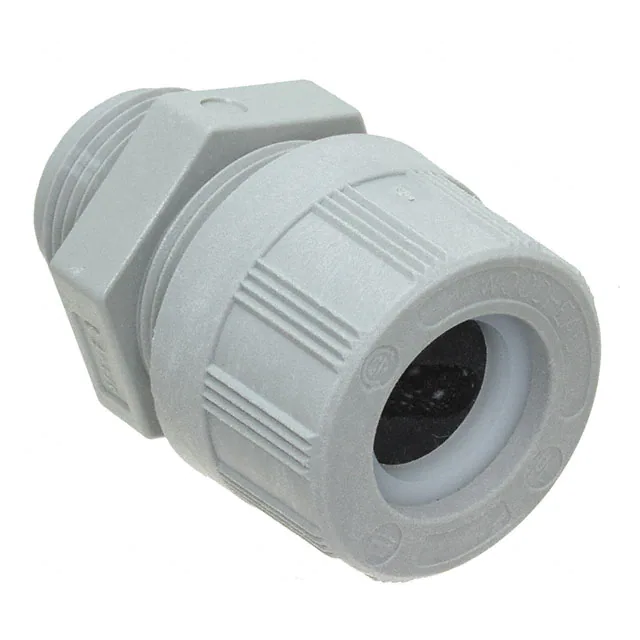

1300980192CABLE GRIP 5.54-16.26MM 3/4" NPT |
3,834 |
|
Datasheet | Cable Grip, Oval Hole | 0.218" (5.54mm) | 0.640" (16.26mm) | 3/4" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - | |
|
|
1300980041CABLE GRIP 3.18-4.75MM 1/2" NPT |
3,486 |
|
Datasheet | Cable Grip | 0.125" (3.18mm) | 0.187" (4.75mm) | 1/2" NPT | - | - | - | Polyamide (PA), Nylon | Compression Nut, Grommet | Gray | - | - |
