Cable and Cord Grips
| Photo | Mfr. Part # | Availability | Quantity | Datasheet | Package/Case | Type | Outside Cable Diameter (Min) | Outside Cable Diameter (Max) | Thread Size | Thread Length | Conduit Hub Size | Panel Hole Size | Material | Includes | Color | Ingress Protection | Operating Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
19000005028CABLE GLAND 4-8MM M16 BRASS |
3,855 |
|
Datasheet | Cable Gland | 0.157" (4.00mm) | 0.315" (8.00mm) | M16 | - | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
19000007102CABLE GLAND 6-12MM M20 POLYAMIDE |
4,943 |
|
Datasheet | Cable Gland | 0.236" (6.00mm) | 0.472" (12.00mm) | M20 | - | - | - | Polyamide (PA), Nylon | - | Blue | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
19000007120CABLE GLAND 7-10MM M20 BRASS |
2,891 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.394" (10.00mm) | M20 | - | - | - | Brass, Nickel Plated | - | Silver | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|

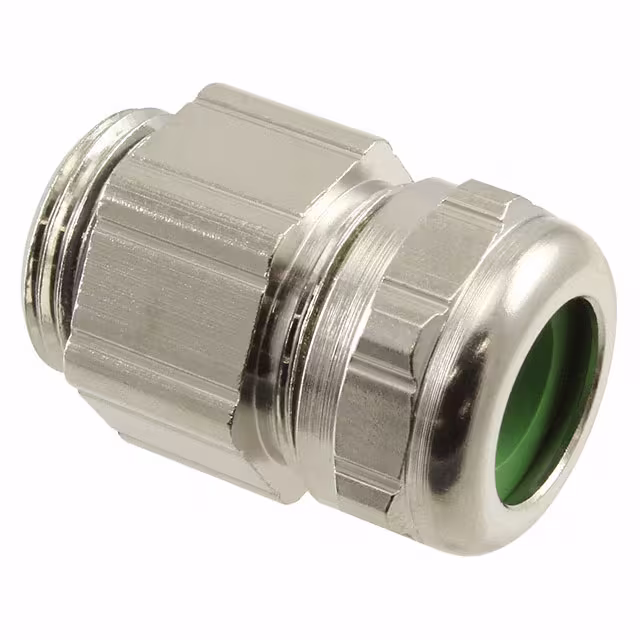

09620005025CABLE GLAND 8-10.5MM PG11/PG13.5 |
2,541 |
|
Datasheet | Cable Gland | 0.315" (8.00mm) | 0.413" (10.50mm) | PG11 and PG13.5 | - | - | - | Metal | Compression Nut | Silver | IP68 - Dust Tight, Waterproof | - | |
|
19440005083CABLE GLND 9-16.99MM M25 S STEEL |
1,471 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.669" (16.99mm) | M25 | - | - | - | Stainless Steel | Clamping Ring | - | - | - | |
|
09000005182CABLE GLAND 7-12MM PG11 THERMOPL |
4,434 |
|
Datasheet | Cable Gland | 0.276" (7.00mm) | 0.472" (12.00mm) | PG11 | - | - | - | Thermoplastic | - | Black | IP68 - Dust Tight, Waterproof | -40°C ~ 100°C | |
|
|
19000005027CABLE GLAND 2-5MM M12 BRASS |
1,495 |
|
Datasheet | Cable Gland | 0.079" (2.00mm) | 0.197" (5.00mm) | M12 | - | - | - | Brass, Nickel Plated | - | Silver | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
|
19000007101CABLE GLAND 5-9MM M20 POLYAMIDE |
1,732 |
|
Datasheet | Cable Gland | 0.197" (5.00mm) | 0.354" (9.00mm) | M20 | - | - | - | Polyamide (PA), Nylon | - | Blue | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C | |
|
09000005167CABLE GLAND PG16 THERMOPL |
2,105 |
|
Datasheet | Cable Gland | - | - | PG16 | 0.394" (10.00mm) | - | - | Thermoplastic | - | Gray | IP68 - Dust Tight, Waterproof | - | |
|
|
19000007104CABLE GLAND 9-16MM M25 POLYAMIDE |
4,029 |
|
Datasheet | Cable Gland | 0.354" (9.00mm) | 0.630" (16.00mm) | M25 | - | - | - | Polyamide (PA), Nylon | - | Blue | IP68/IP69K - Dust Tight, Water Resistant, Waterproof | -40°C ~ 100°C |
